Home > Products > Stainless Steel Cable Ties > BL Stainless Steel Cable Ties-ball-lock

Product Category

Cable Lugs and Connectors
Cold-pressed Terminals and Connectors
Overhead Power Line Connectors
Heat and Cold Shrinkable Cable Accessories
Electrical Power Distribution Components
Cable Ties
- Nylon Cable Ties
- Stainless Steel Cable Ties

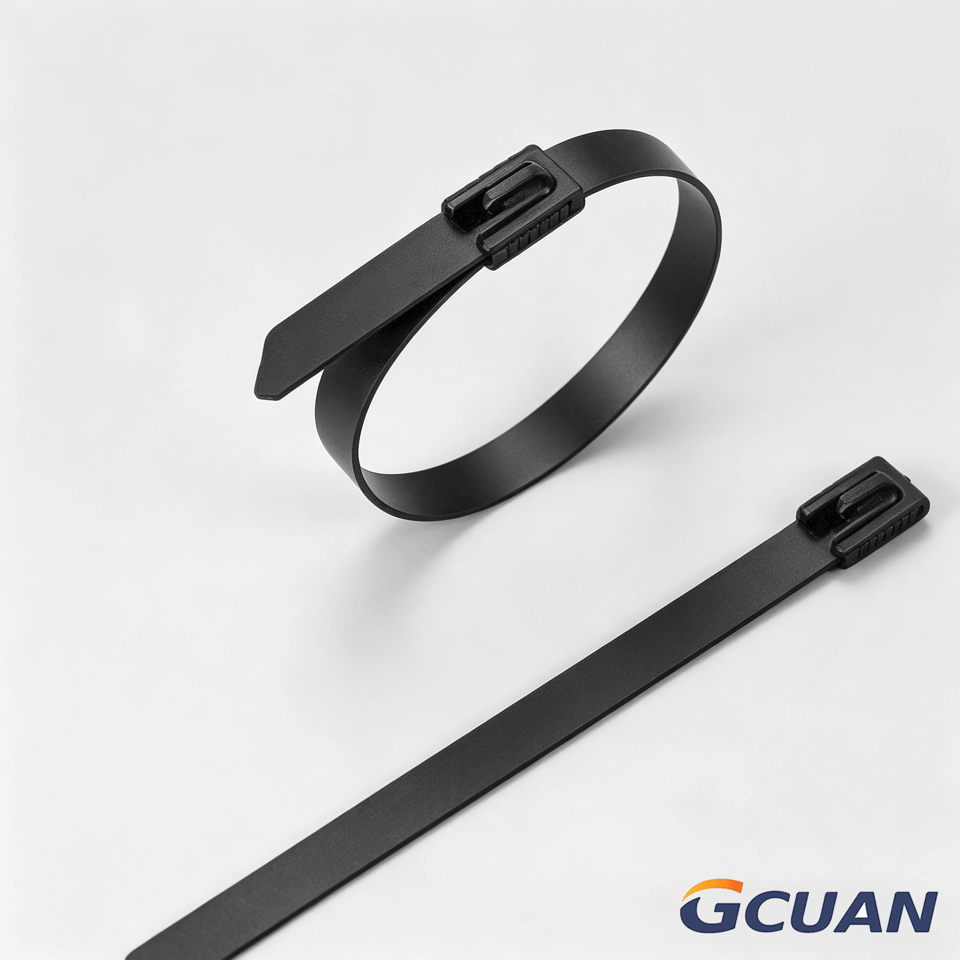

BL Stainless Steel Cable Ties-ball-lock

BL uncoated：
Working Temp: -80° ~ 538°
Product features: Ball-Lock type self-lock system , will speed the installation

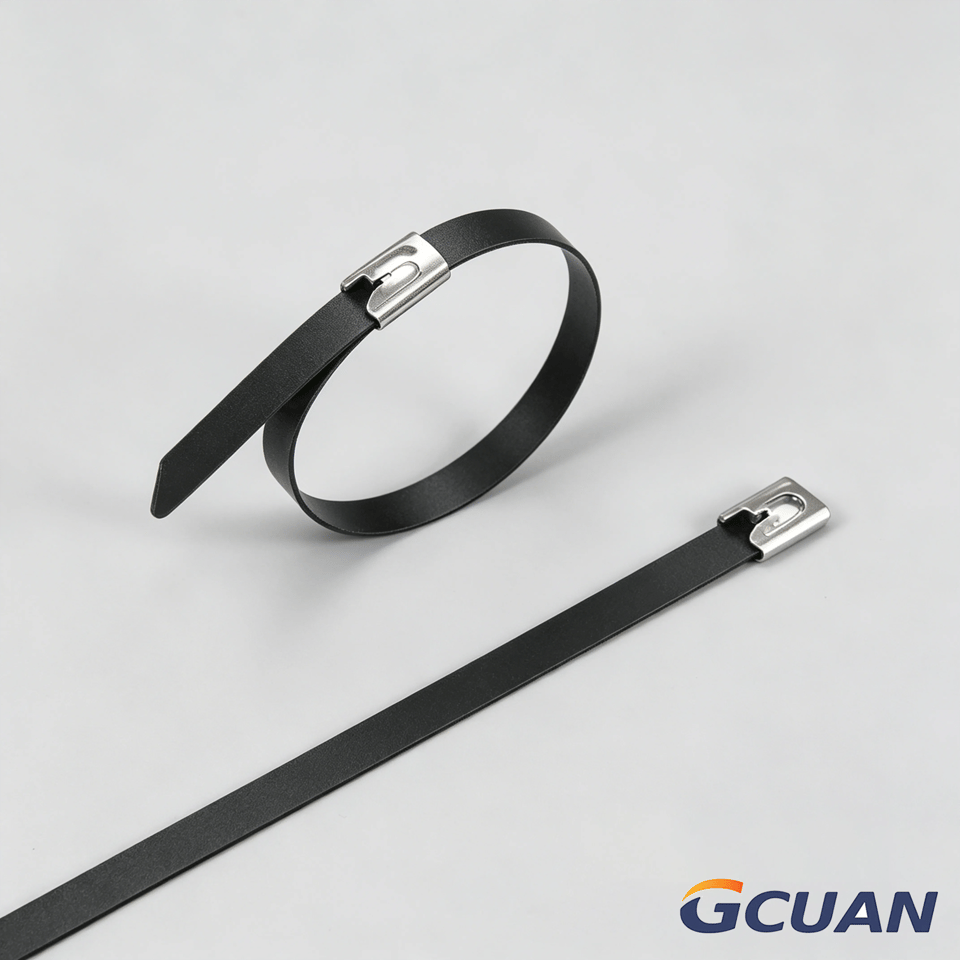

BLP coated：
Working Temp: -80°~ 150°
Product features: Polyester coated band provide additional edge protection, prevent corrosion between dissimilar materials

BLPM fully coated：
Working Temp:-80°~ 150°
Product features: Full coated version will prevent static electricity, Polyester coated band provide additional edge protection, prevent corrosion between dissimilar materials

Technical Information：
Product material: Stainless Steel Grade 201or304, 316
Other Properties: High and low temperature resistance, wear resistance, rust resistance, UV resistance
Coating: POLYESTER/Epoxy
Description: Entirely metallic or coating, fully coated

Request a Quote

Product Description

Parameter:

Type	Item NO.	Thickness		Width		Length		Min. Tensile strength
Type	Item NO.	(mm)	(inch)	(mm)	(inch)	(mm)	(inch)	(N)	(lbs)
•BL uncoated •BLP coated •BLPM fully coated	4.6*100	0.25	0.01	4.6	0.18	100	3.9	1000	225
	4.6*150					150	5.9
	4.6*200					200	7.9
	4.6*250					250	9.8
	4.6*300					300	11.8
	4.6*350					350	13.8
	4.6*400					400	15.7
	4.6*450					450	17.7
	4.6*520					520	20.5
	4.6*680					680	26.8
	4.6*800					800	31.5
	4.6*1000					1000	39.4
•BL uncoated •BLP coated •BLPM fully coated	7.9*150	0.25	0.01	7.9	0.31	150	5.9	2220	500
	7.9*200					200	7.9
	7.9*250					250	9.8
	7.9*300					300	11.8
	7.9*350					350	13.8
	7.9*400					400	15.7
	7.9*450					450	17.7
	7.9*520					520	20.5
	7.9*680					680	26.8
	7.9*800					800	31.5
	7.9*1000					1000	39.4
•BL uncoated •BLP coated •BLPM fully coated	10*200	0.25 0.3 0.4	0.01 0.012 0.016	10	0.39	200	7.9	3115	700
	10*250					250	9.8
	10*300					300	11.8
	10*350					350	13.8
	10*400					400	15.7
	10*450					450	17.7
	10*520					520	20.5
	10*680					680	26.8
	10*800					800	31.5
	10*1000					1000	39.4
•BL uncoated •BLP coated •BLPM fully coated	12*350	0.25 0.3 0.4	0.01 0.012 0.016	12	0.47	350	13.8	3115	700
	12*400					400	15.7
	12*500					500	19.7
	12*600					600	23.6
	12*750					750	29.5
	12*900					900	35.4
	12*1100					1100	43.3
•BL uncoated	12.7*350	0.3 0.4	0.012 0.016	12.7	0.5	350	13.8	3115	700
	12.7*400					400	15.7
	12.7*500					500	19.7
	12.7*600					600	23.6
	12.7*750					750	29.5
	12.7*900					900	35.4
	12.7*1100					1100	43.3
•BL uncoated	16*500	0.3 0.4	0.012 0.016	16	0.63	500	19.7	3115	700
	16*600					600	23.6
	16*700					700	27.6
	16*800					800	31.5
	16*1100					1100	43.3
	16*1500					1500	59.1
	16*2000					2000	78.7
•BL uncoated	19*500	0.3 0.4	0.012 0.016	19	0.75	500	19.7	4100	920
	19*600					600	23.6
	19*700					700	27.6
	19*800					800	31.5
	19*1100					1100	43.3
	19*1500					1500	59.1
	19*2000					2000	78.7
