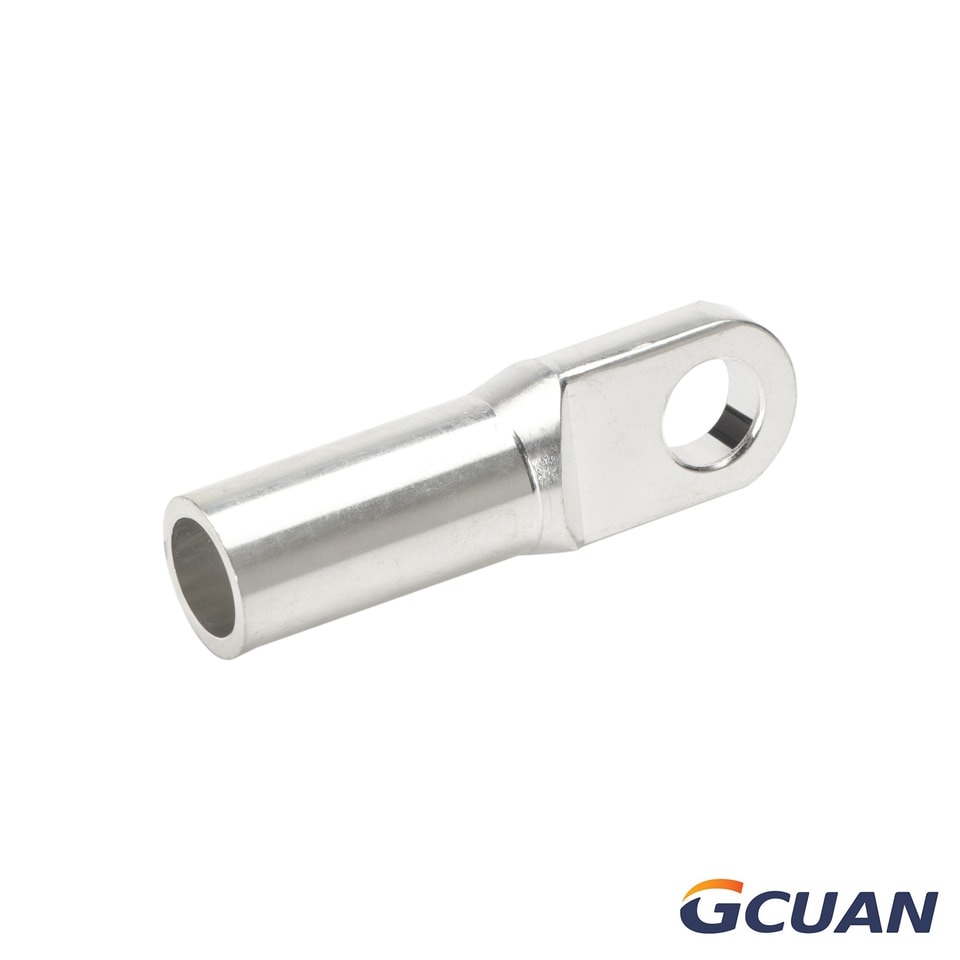

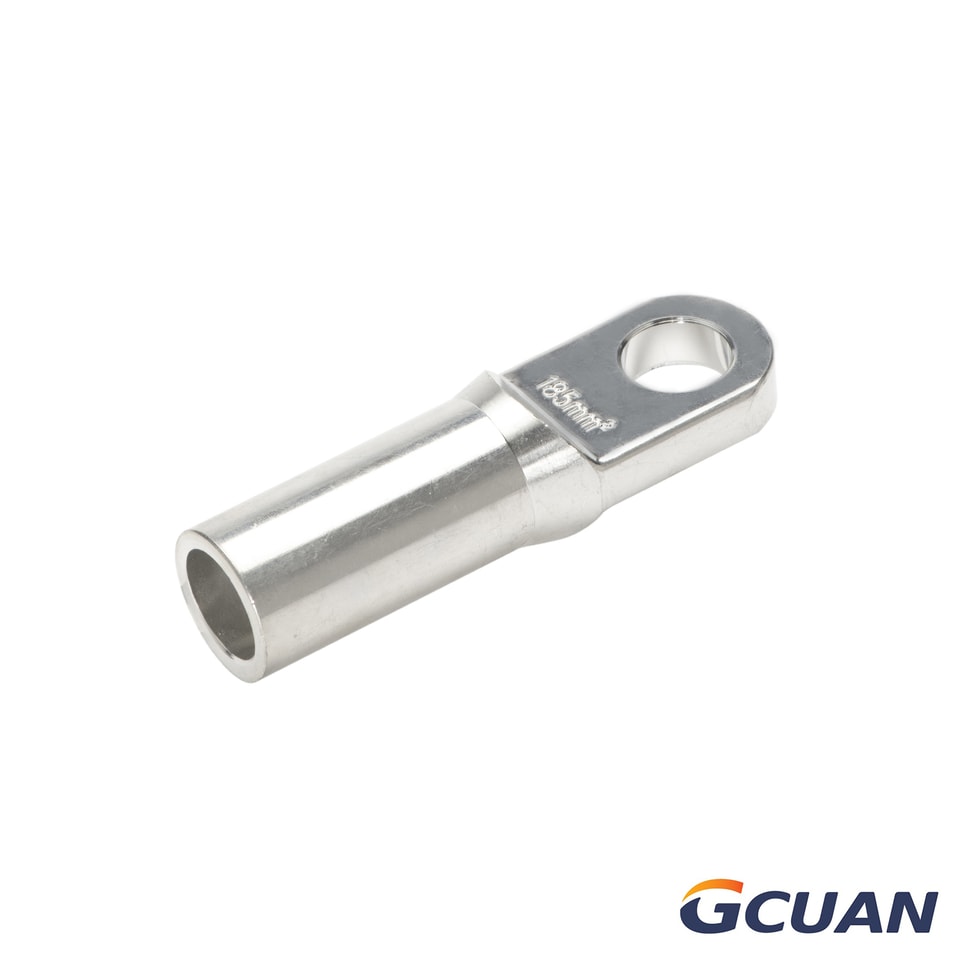

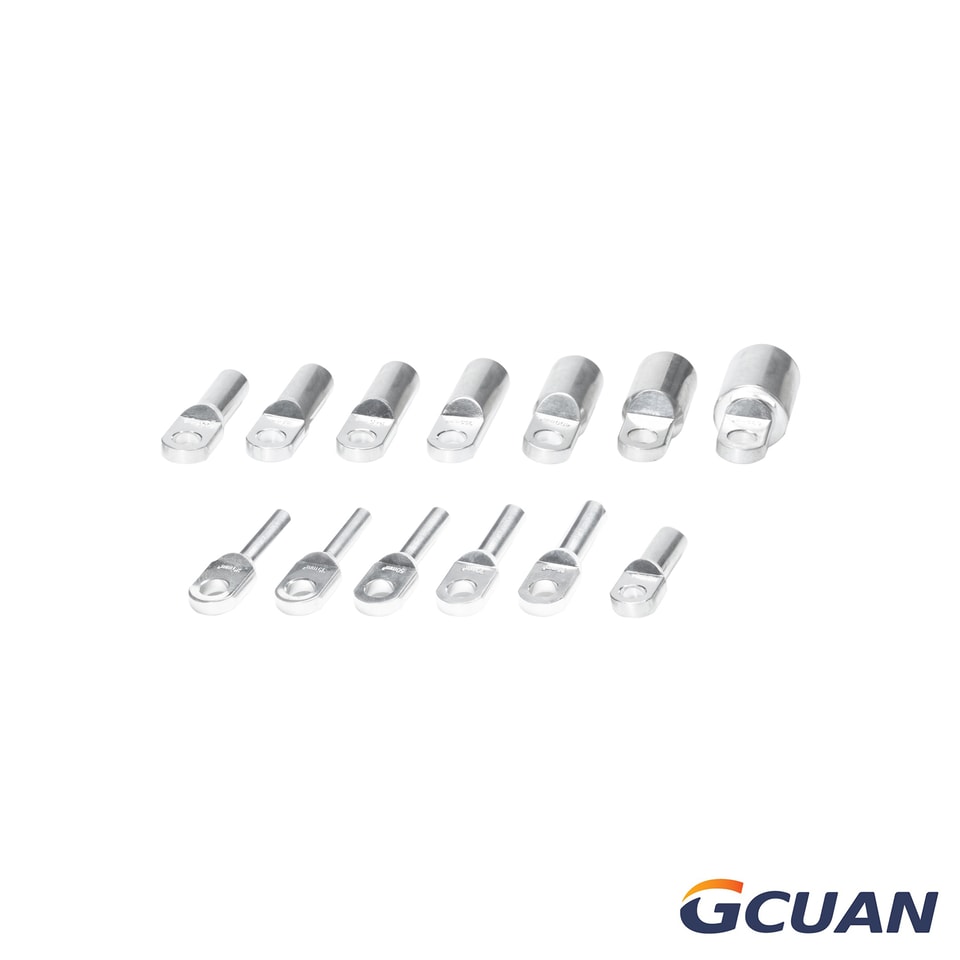

DTO Copper Cable Lug

Application:
Used for connection of aluminum cable with copper end of electrical equipment in low voltage. From 25 to 630mm2

Material:

Cu≥99.9%

Surface:

Tin plated

Feature:

Designed for Elbow connector

Request a Quote

Quick selection

Product Description

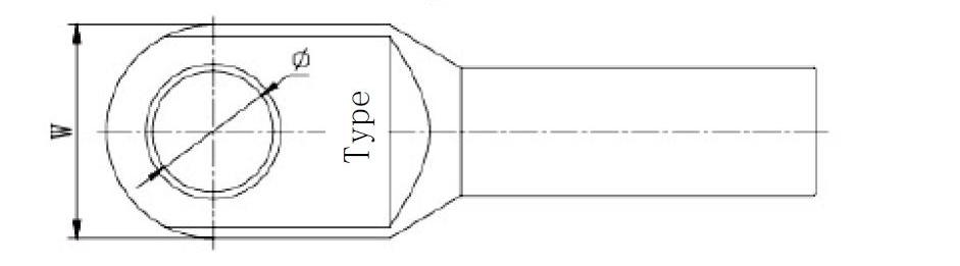

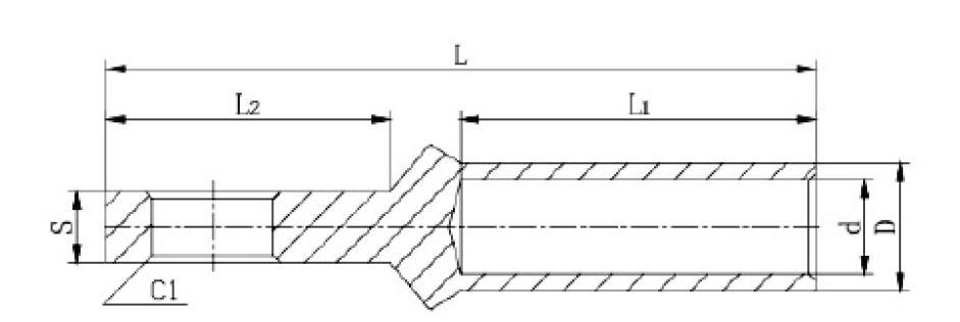

Dimensional Drawing:

Parameter

Type	Φ	D	d	L1	L2	W	S	L
DTO-25	17	11	7.0	50	40	30	10	100
DTO-35	17	12	8.5	50	40	30	10	100
DTO-50	17	14	9.7	50	40	30	10	100
DTO-70	17	16	12.1	50	40	30	10	100
DTO-95	17	18	13.2	50	40	30	10	100
DTO-120	17	20	15.1	50	40	30	10	100
DTO-150	17	22	16.2	50	40	30	10	100
DTO-185	17	25	18.2	50	40	30	10	100
DTO-240	17	27	20.2	50	40	30	10	100
DTO-300	17	30	23.2	50	40	30	10	100
DTO-400	17	34	26.2	50	40	30	10	100
DTO-500	17	38	29.2	50	40	30	10	100
DTO-630	17	45	34.0	50	40	30	10	103
