Steel Top Hat DIN Rail
Profile Structure:
Standard top hat (TS35) profile with a symmetrical “hat brim” shape; 35mm wide and typically 7.5mm high.
Mounting Options:
Available in solid, slotted, or perforated versions for flexible installation; can be mounted using screws, clips, or brackets in control panels or enclosures.
Usage Scenarios:
Widely used in industrial automation, electrical control cabinets, and distribution boxes for mounting circuit breakers, terminal blocks, relays, PLCs, and power supplies.

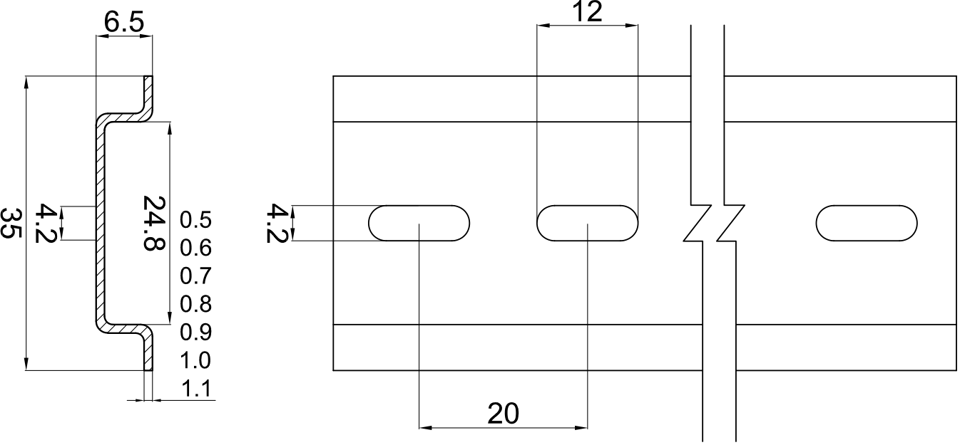

Dimensional Drawing:
Parameter:

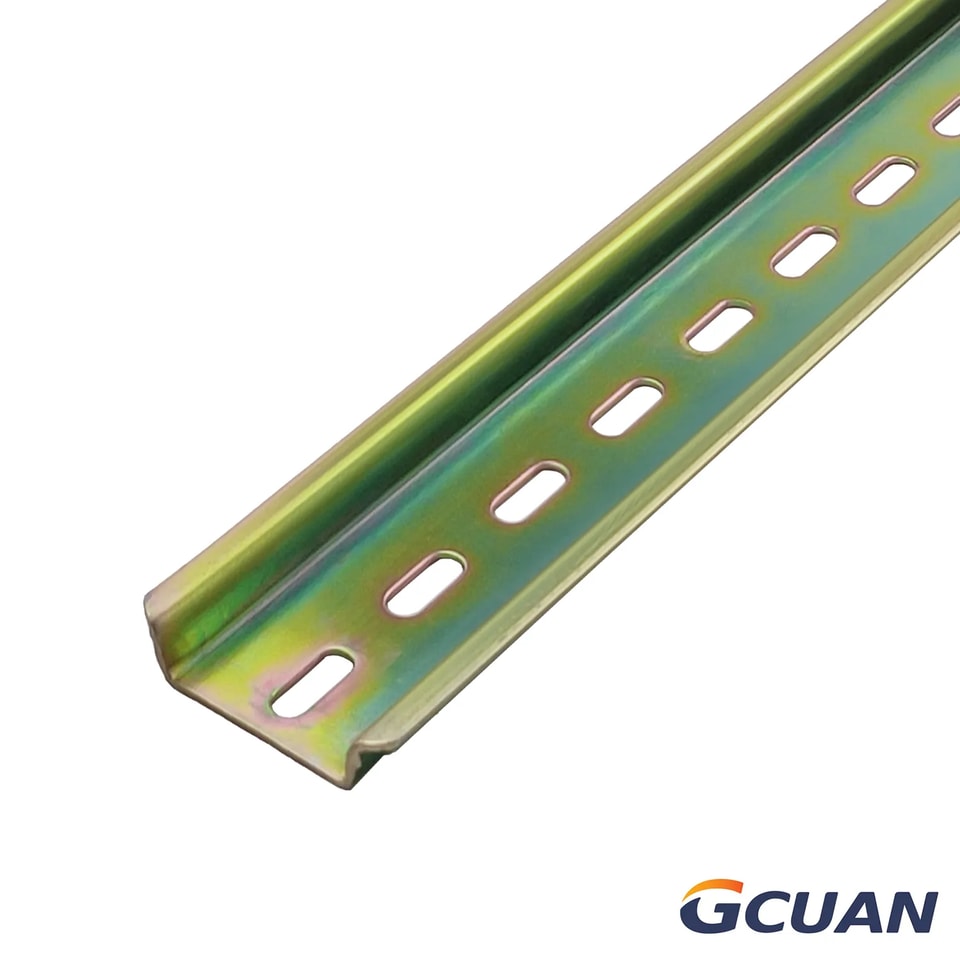

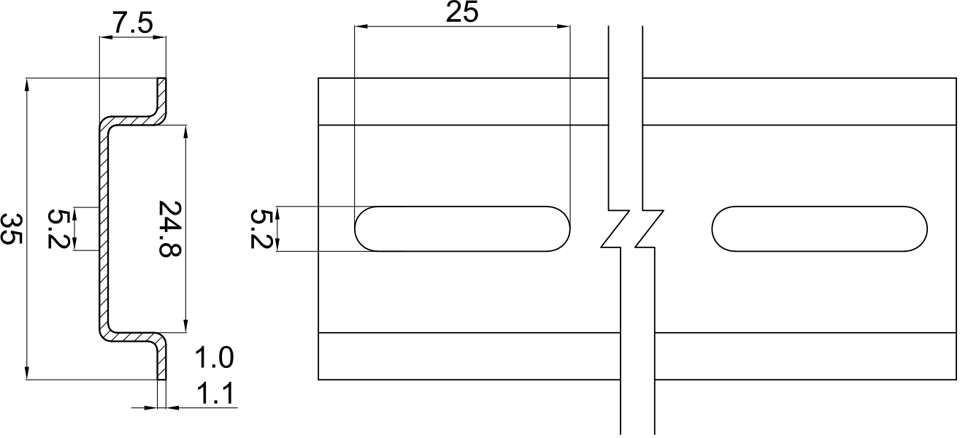

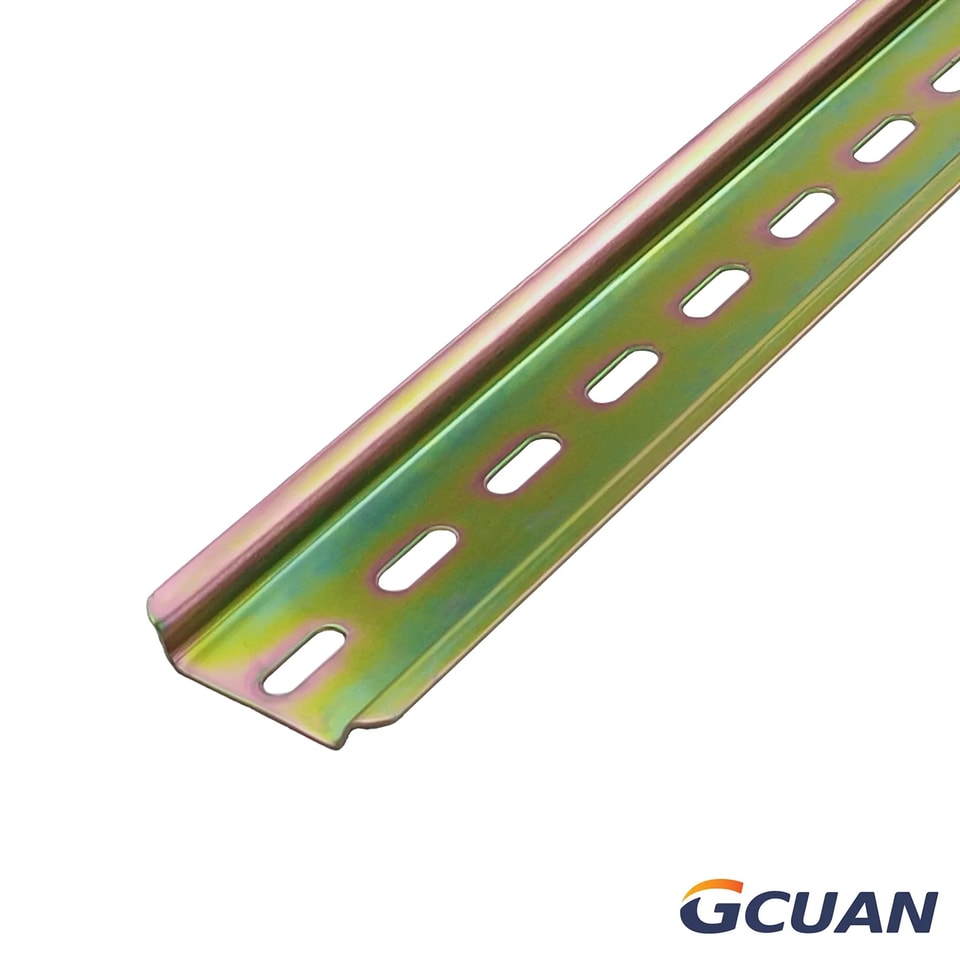

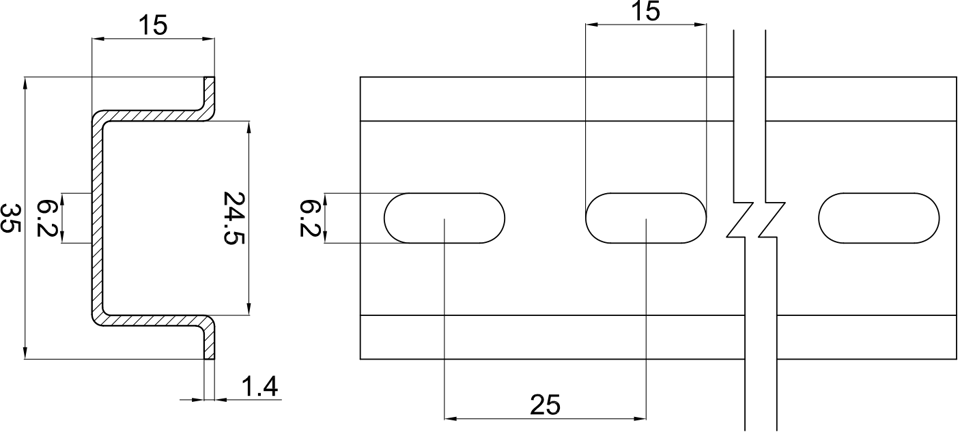

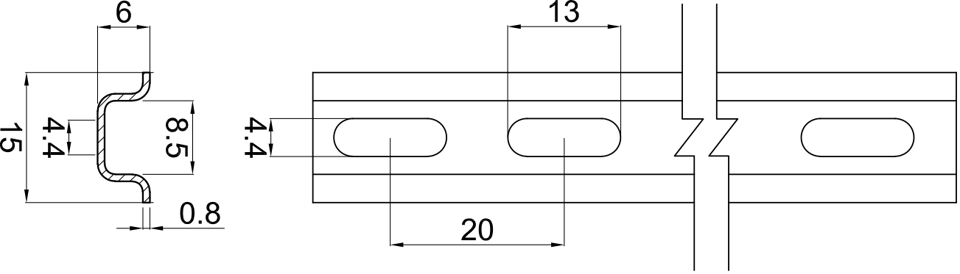

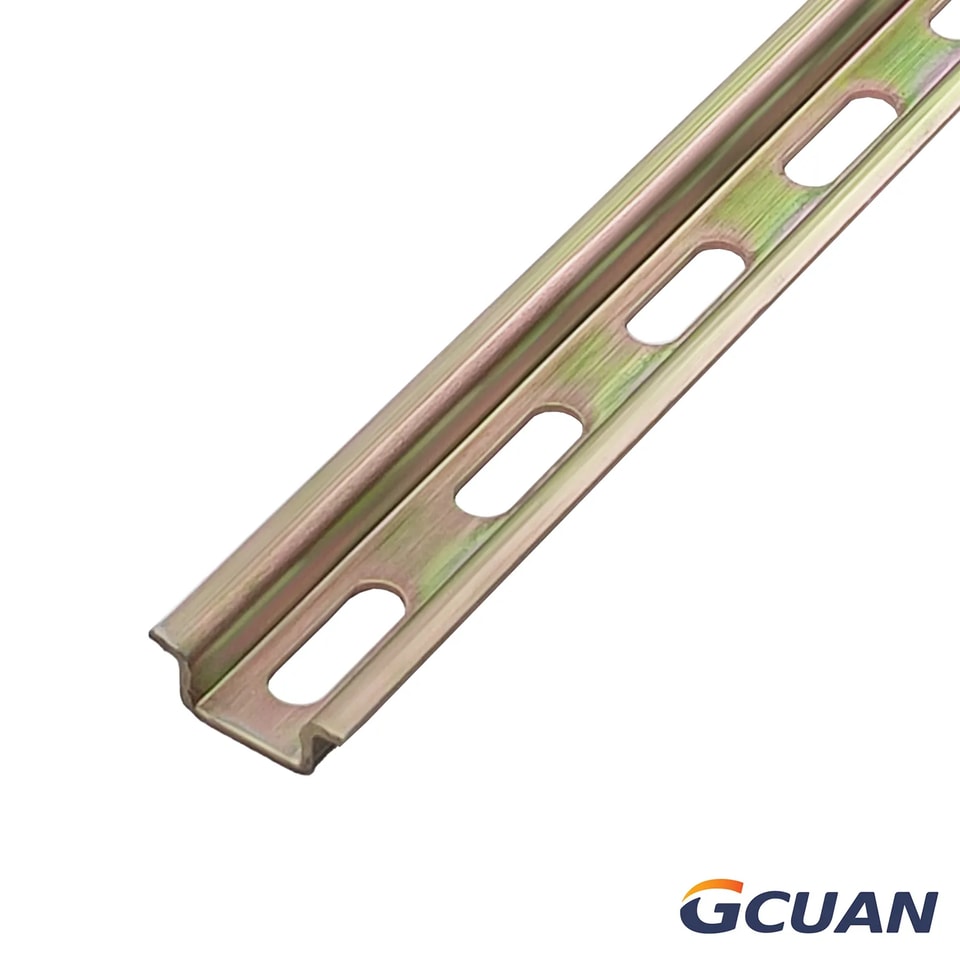

Item | Dimensions (mm) | |||||
Outer Width | Inner Width | Height | Thickness | Hole size | Hole Spacing | |
TH35-7.5 ST | 35 | 24.8 | 7.5 | 0.8 | 4.2*12 | 20 |
0.9 | ||||||
1.0 | ||||||
1.1 | ||||||
1.2 | ||||||
1.0 | 5.2*25 | 35.5 | ||||
1.1 | ||||||
1.0 | 6.2*15 | 25 | ||||
1.1 | ||||||
1.2 | ||||||
TH35-6.5 ST | 35 | 24.8 | 6.5 | 0.6 | 4.2*12 | 20 |
0.7 | ||||||
0.8 | ||||||
0.9 | ||||||
1.0 | ||||||
1.1 | ||||||
TH35-15 ST | 35 | 24.5 | 15 | 1.4 | 6.2*15 | 25 |
TH15-6 ST | 15 | 8.5 | 6 | 0.8 | 4.4*13 | 20 |
