10kV Cold Shrink Cable Joint
Application:
Suitable for the connection of single-core or three-core cross-linked power cables with voltage levels of 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV, and plays the role of sealing, insulation and stress evacuation. Especially suitable for use in flammable and explosive places such as petroleum, chemical industry, and mining.

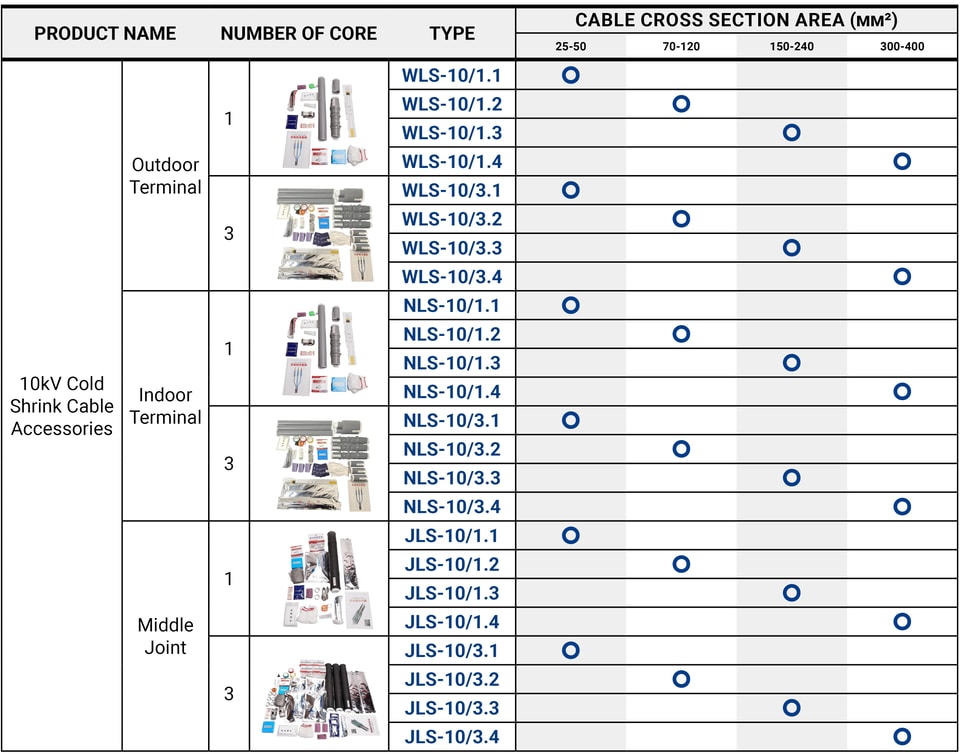

Quick selection
Product Description

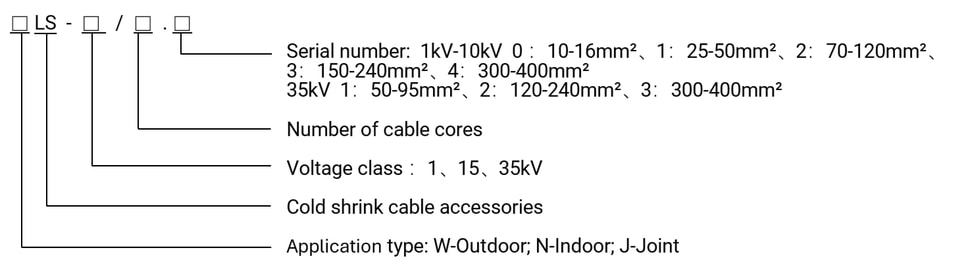

Model Description
Parameter
Product name | Type | Cable cross section area (mm²) | |
10kV Cold shrink cable joint | Single-core | JLS-15/1.1 | 25-50 |
JLS-15/1.2 | 70-120 | ||
JLS-15/1.3 | 150-240 | ||
JLS-15/1.4 | 300-400 | ||
Three-core | JLS-15/3.1 | 25-50 | |
JLS-15/3.2 | 70-120 | ||
JLS-15/3.3 | 150-240 | ||
JLS-15/3.4 | 300-400 | ||

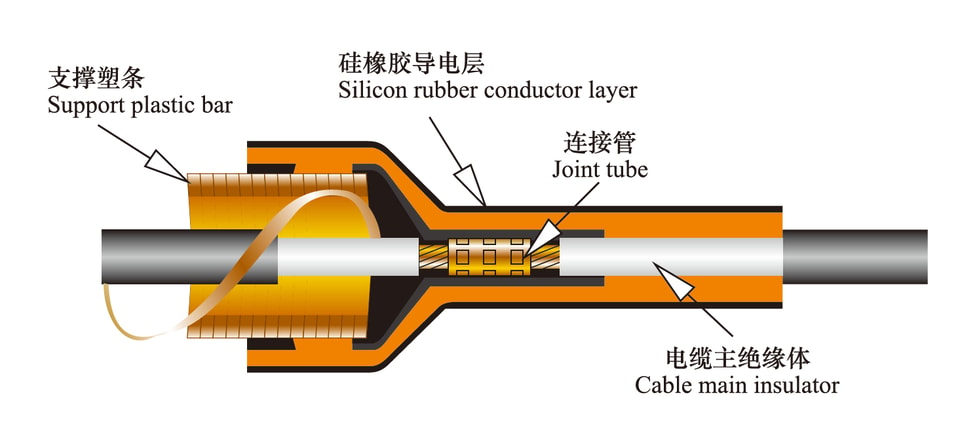

Cutaway view of cold shrinkable type middle joint tube
