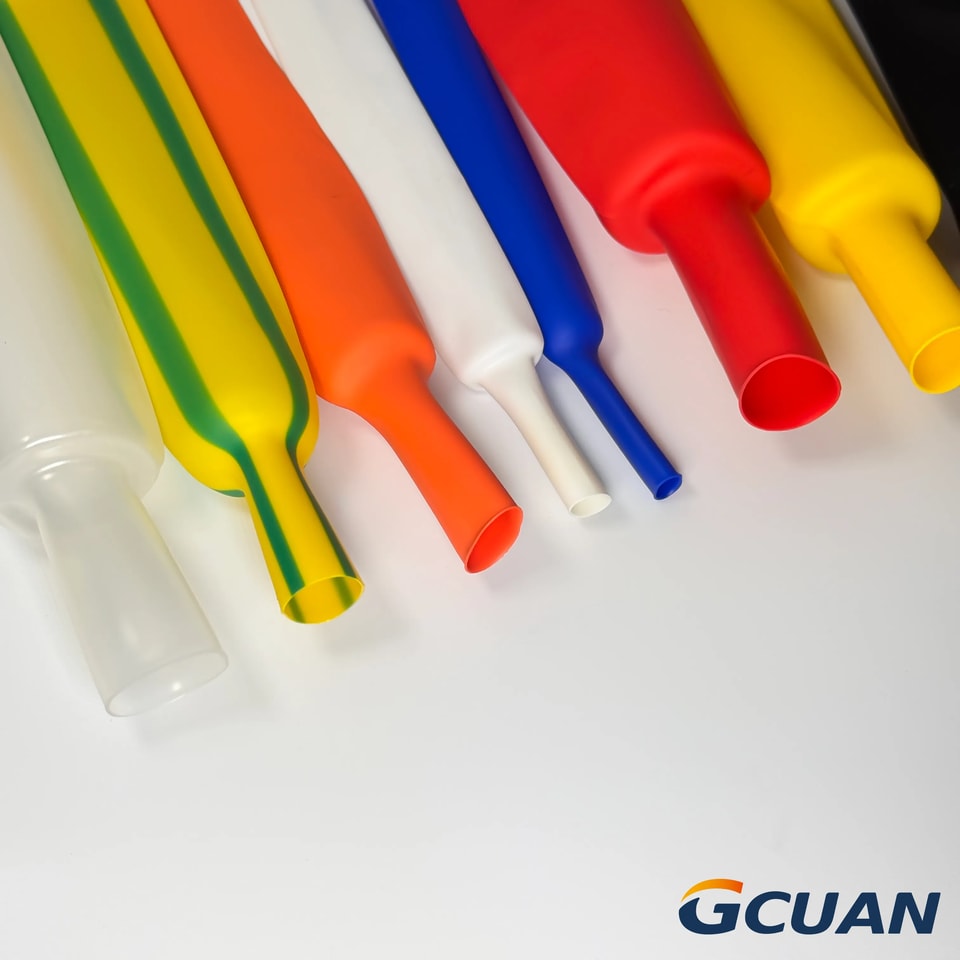

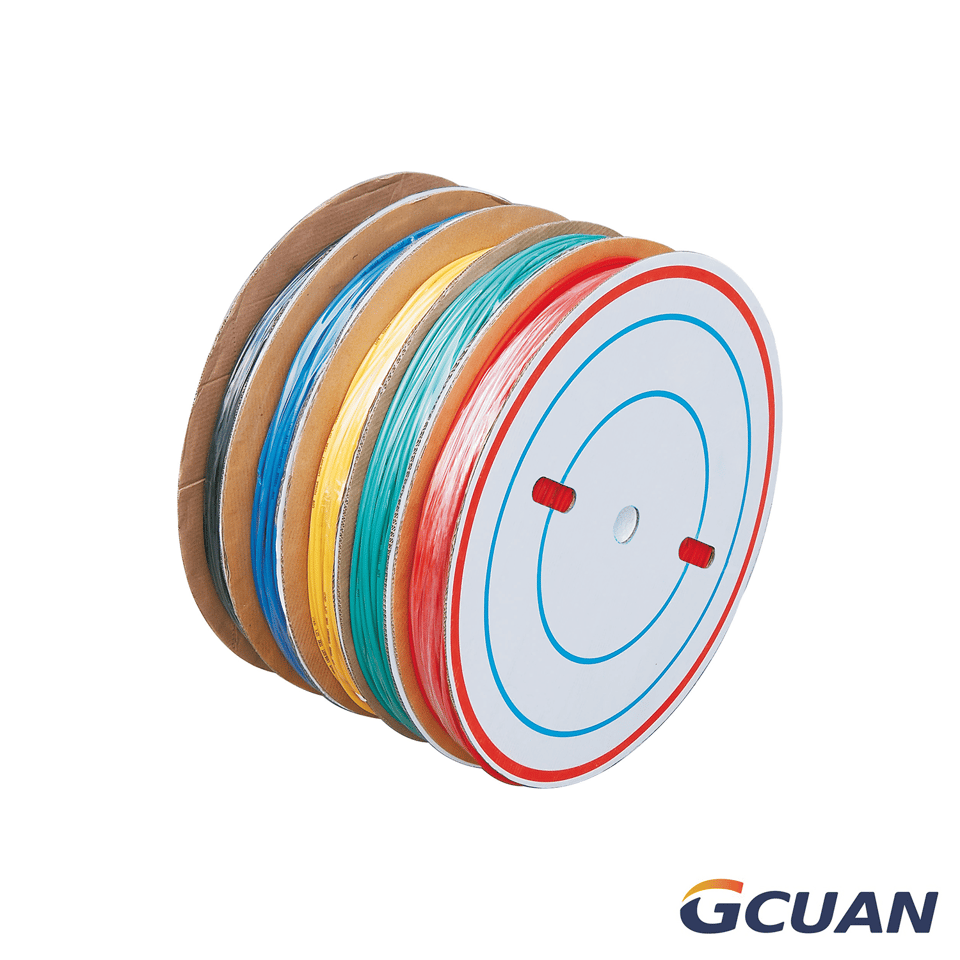

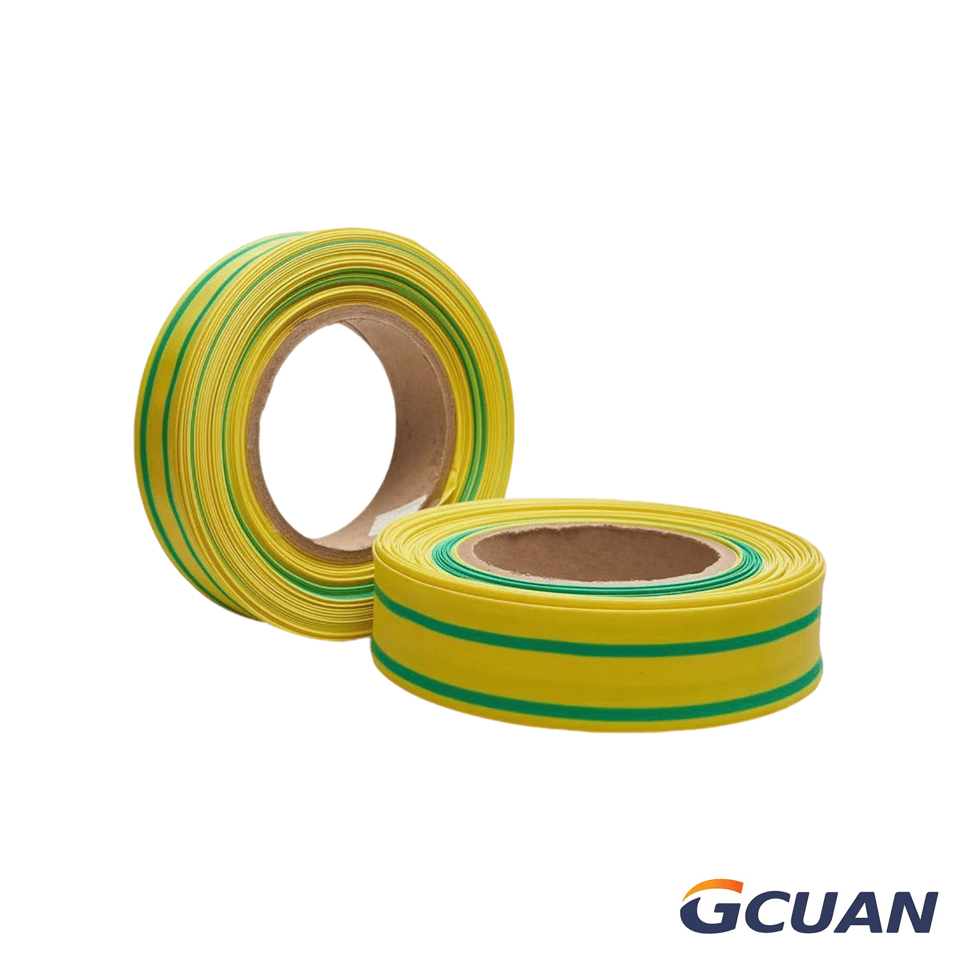

1kV Heat Shrink Tubing
Application:
Widely used in the connection of wires to provide anti-corrosion and insulation protection.
Features:
· Shrinkage ratio: 2:1; 3:1 (customized)
· Shrinkage temperature: 85°C~125°C
· Working temperature: -55°C~125°C
· Environmental protection, high strength, good elasticity, flame retardant, soft, stable performance and other advantages.
Standard colors:
Black, red, yellow, green, blue, special colors can be customized according to the color card provided by clients.

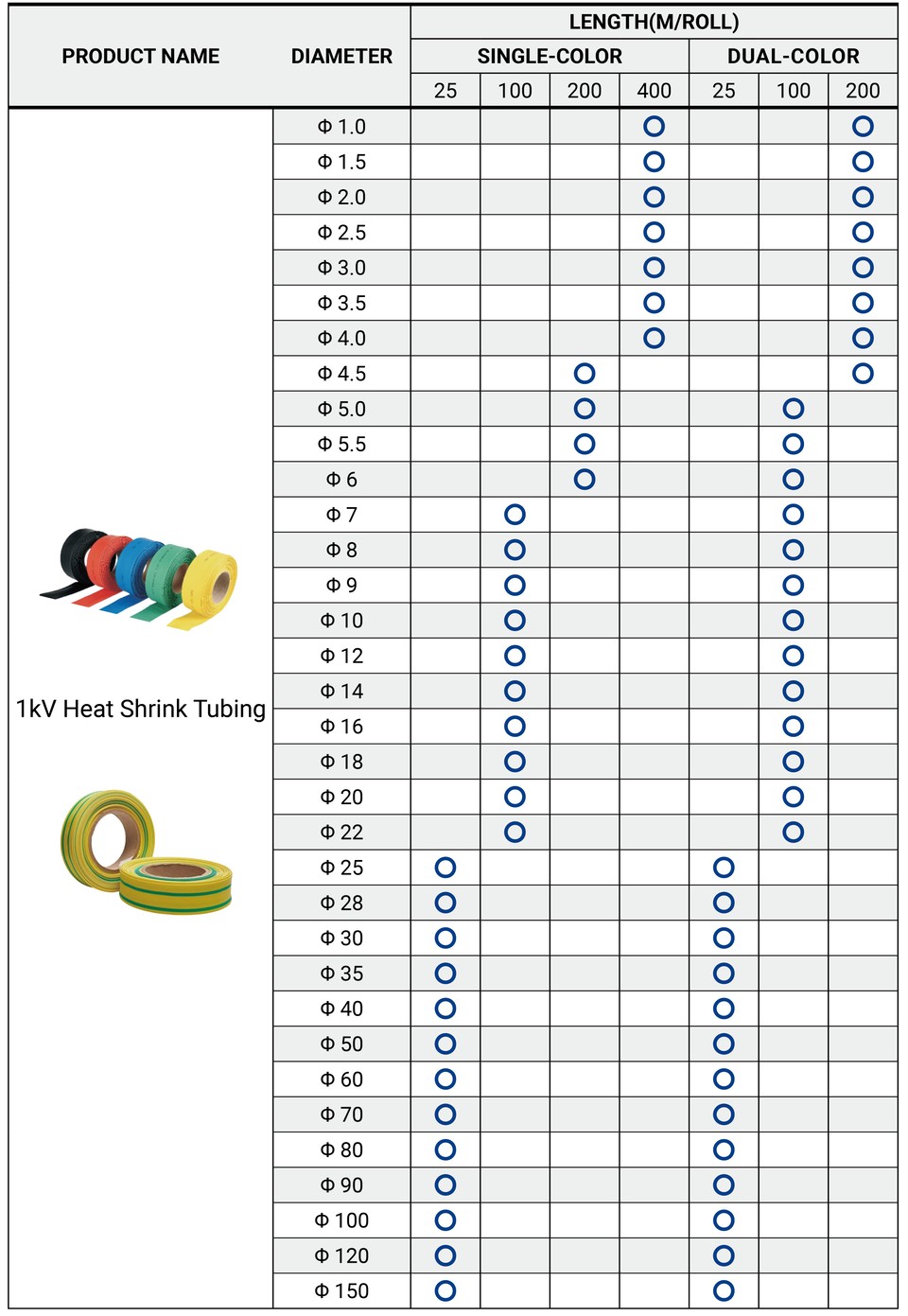

Parameter:
Product name | Single-color | Dual-color | ||
Diameter | Length (m/roll) | Diameter | Length (m/roll) | |
1kV Heat Shrink Tubing | Φ 1.0 | 400 | Φ 1.0 | 200 |
Φ 1.5 | 400 | Φ 1.5 | 200 | |
Φ 2.0 | 400 | Φ 2.0 | 200 | |
Φ 2.5 | 400 | Φ 2.5 | 200 | |
Φ 3.0 | 400 | Φ 3.0 | 200 | |
Φ 3.5 | 400 | Φ 3.5 | 200 | |
Φ 4.0 | 400 | Φ 4.0 | 200 | |
Φ 4.5 | 200 | Φ 4.5 | 200 | |
Φ 5.0 | 200 | Φ 5.0 | 100 | |
Φ 5.5 | 200 | Φ 5.5 | 100 | |
Φ 6 | 200 | Φ 6 | 100 | |
Φ 7 | 100 | Φ 7 | 100 | |
Φ 8 | 100 | Φ 8 | 100 | |
Φ 9 | 100 | Φ 9 | 100 | |
Φ 10 | 100 | Φ 10 | 100 | |
Φ 12 | 100 | Φ 12 | 100 | |
Φ 14 | 100 | Φ 14 | 100 | |
Φ 16 | 100 | Φ 16 | 100 | |
Φ 18 | 100 | Φ 18 | 100 | |
Φ 20 | 100 | Φ 20 | 100 | |
Φ 22 | 100 | Φ 22 | 100 | |
Φ 25 | 25 | Φ 25 | 25 | |
Φ 28 | 25 | Φ 28 | 25 | |
Φ 30 | 25 | Φ 30 | 25 | |
Φ 35 | 25 | Φ 35 | 25 | |
Φ 40 | 25 | Φ 40 | 25 | |
Φ 50 | 25 | Φ 50 | 25 | |
Φ 60 | 25 | Φ 60 | 25 | |
Φ 70 | 25 | Φ 70 | 25 | |
Φ 80 | 25 | Φ 80 | 25 | |
Φ 90 | 25 | Φ 90 | 25 | |
Φ 100 | 25 | Φ 100 | 25 | |
Φ 120 | 25 | Φ 120 | 25 | |
Φ 150 | 25 | Φ 150 | 25 | |
