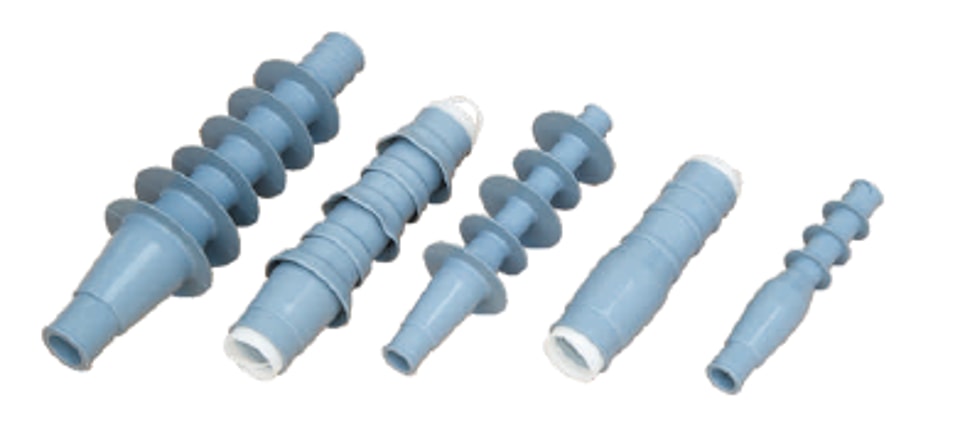

10kV Cold Shrink Cable Termination

Application:

Suitable for the connection of single-core or three-core cross-linked power cables with voltage levels of 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV, and plays the role of sealing, insulation and stress evacuation. Especially suitable for use in flammable and explosive places such as petroleum, chemical industry, and mining.

Request a Quote

Product Description

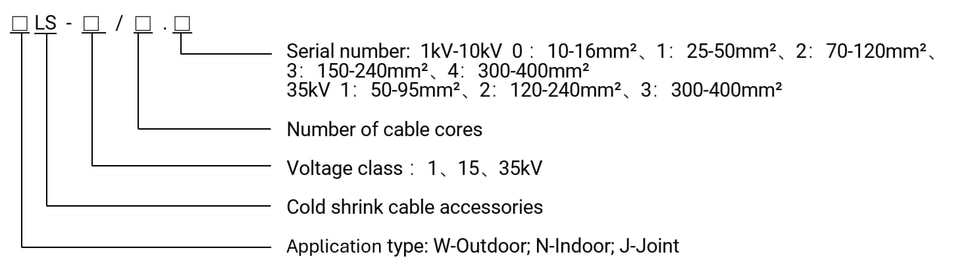

Model Description

Parameter

Product name		Type	Cable cross section area (mm²)
10kV Cold shrink outdoor cable termination	Single-core	WLS-15/1.1	25-50
		WLS-15/1.2	70-120
		WLS-15/1.3	150-240
		WLS-15/1.4	300-400
	Three-core	WLS-15/3.1	25-50
		WLS-15/3.2	70-120
		WLS-15/3.3	150-240
		WLS-15/3.4	300-400
10kV Cold shrink indoor cable termination	Single-core	NLS-15/1.1	25-50
		NLS-15/1.2	70-120
		NLS-15/1.3	150-240
		NLS-15/1.4	300-400
	Three-core	NLS-15/3.1	25-50
		NLS-15/3.2	70-120
		NLS-15/3.3	150-240
		NLS-15/3.4	300-400

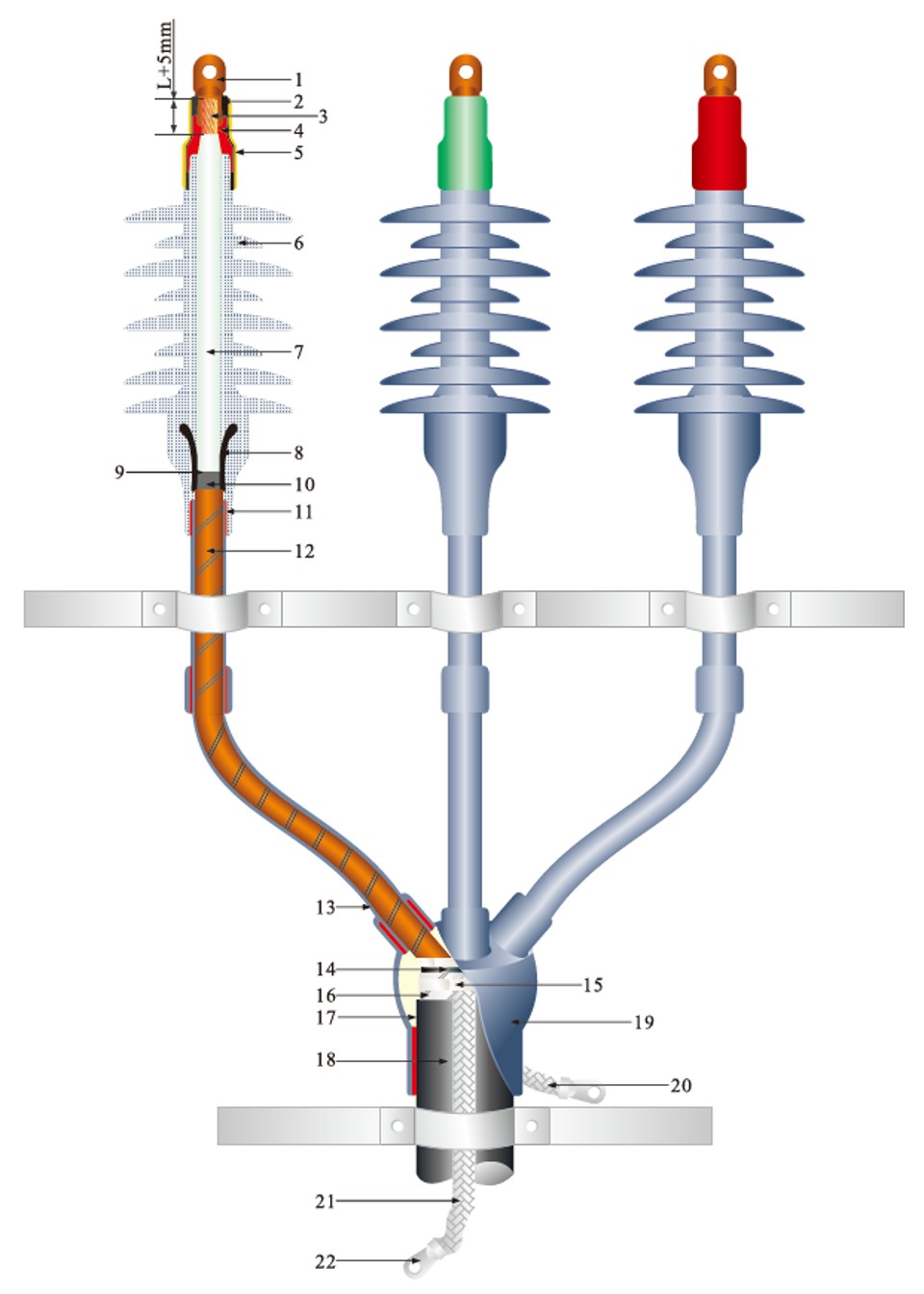

1.Connection terminal
2.J-20 self-adhesive tape
3. Wire core
4. Seal gum
5.Chromatography sealed tube
6. Main insulating layer
7. Terminal body
8. Stress cone
9.Semi-conductive tape
10.Semiconductor shielded layer
11.Seal gum
12.Copper shielded tape
13.Cold-shrinkable insulating tube
14.Lining
15.Constant force spring
16. Steel armor
17.Filling adhesive
18.Cable outer sheath
19.Cold-shrinkable three-branch sheath
20.Shielded earthing wire
21.Armored earthing wire
22.Earthing terminal
L: Hole depth of connection terminal
