10kV Heat Shrink Cable Joint

Application:

Heat shrinkable medium voltage products are widely used for insulation treatment of 8.7-15KV cross-linked cable terminals and intermediate connections. It has the characteristics of small size, light weight, reliable operation, and easy installation. According to user needs, multi-core cables, dual ground wire structures, or products with special requirements can be designed.

Request a Quote

Product Description

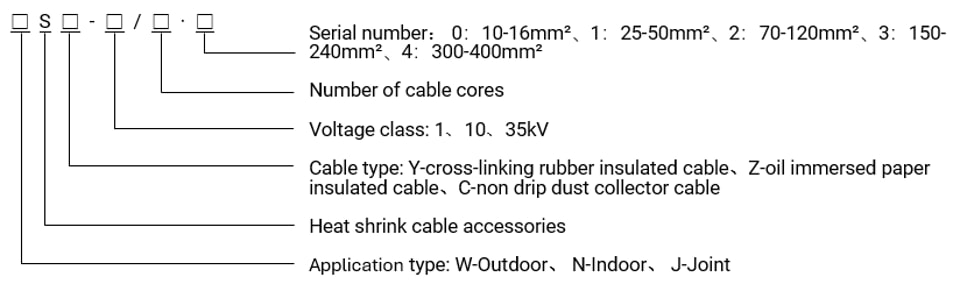

Model Description

Parameter

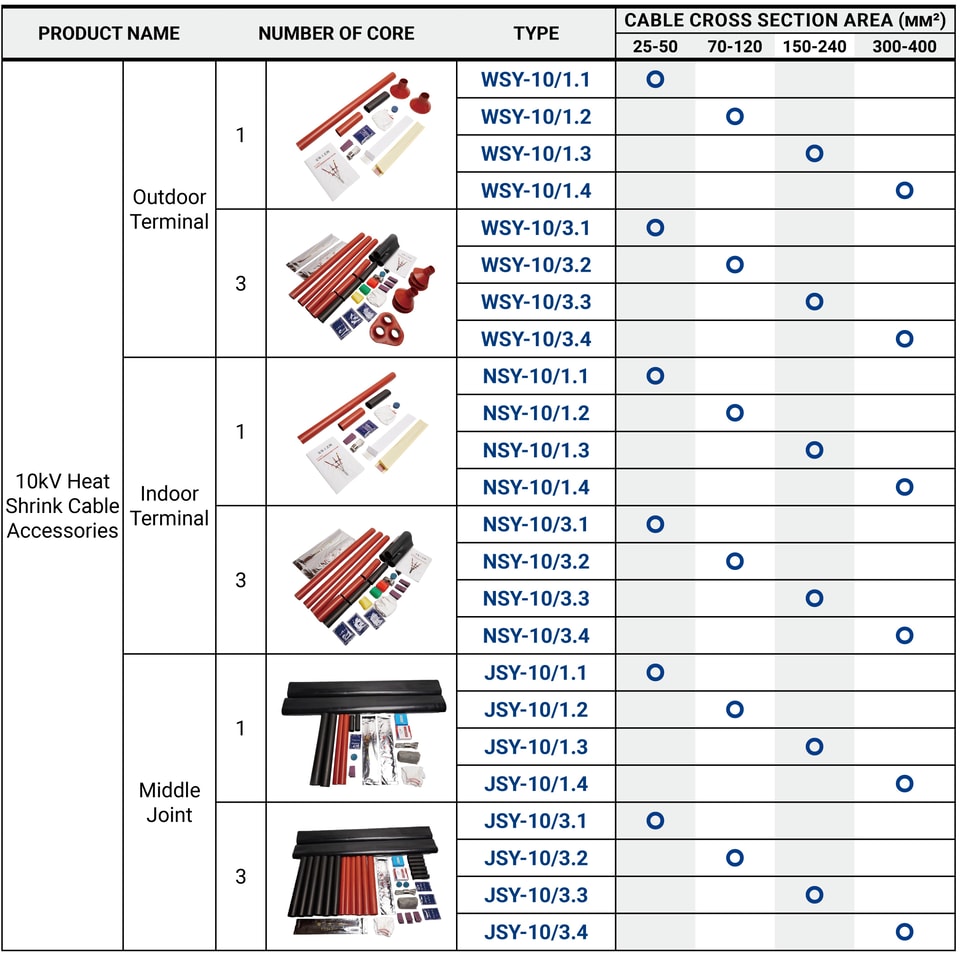

Product name		Type	Cable cross section area (mm²)
10kV Heat Shrink Cable Joint	Single-core	JSY-10/1.1	25-50
		JSY-10/1.2	70-120
		JSY-10/1.3	150-240
		JSY-10/1.4	300-400
	Three-core	JSY-10/3.1	25-50
		JSY-10/3.2	70-120
		JSY-10/3.3	150-240
		JSY-10/3.4	300-400

Quick selection
