10kV Heat Shrink Cable Termination
Application:
Heat shrinkable medium voltage products are widely used for insulation treatment of 8.7-15KV cross-linked cable terminals and intermediate connections. It has the characteristics of small size, light weight, reliable operation, and easy installation. According to user needs, multi-core cables, dual ground wire structures, or products with special requirements can be designed.

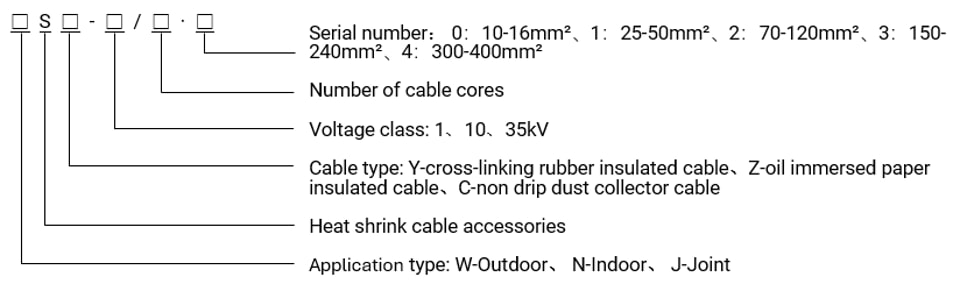

Model Description
Parameter
Product name | Type | Cable cross section area (mm²) | |
10kV Heat shrink outdoor cable termination | Single-core | WSY-10/1.1 | 25-50 |
WSY-10/1.2 | 70-120 | ||
WSY-10/1.3 | 150-240 | ||
WSY-10/1.4 | 300-400 | ||
Three-core | WSY-10/3.1 | 25-50 | |
WSY-10/3.2 | 70-120 | ||
WSY-10/3.3 | 150-240 | ||
WSY-10/3.4 | 300-400 | ||
10kV Heat shrink indoor cable termination | Single-core | NSY-10/1.1 | 25-50 |
NSY-10/1.2 | 70-120 | ||
NSY-10/1.3 | 150-240 | ||
NSY-10/1.4 | 300-400 | ||
Three-core | NSY-10/3.1 | 25-50 | |
NSY-10/3.2 | 70-120 | ||
NSY-10/3.3 | 150-240 | ||
NSY-10/3.4 | 300-400 | ||

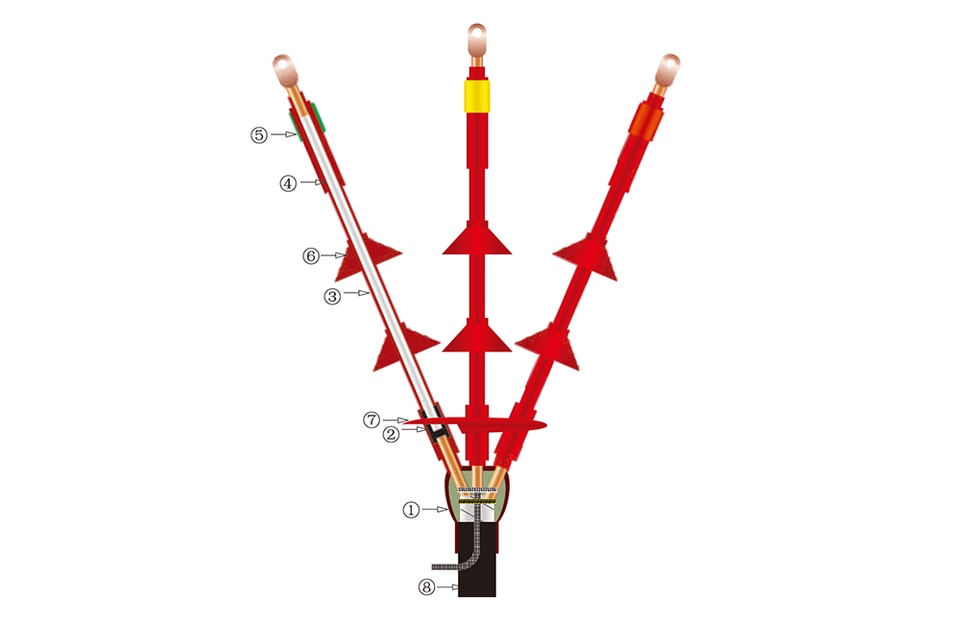

Sectional View of 10kV Three-core heat shrinkable Terminal
1. Heat shrink sleeve
2. Stress Control Tube
3. Insulation Tube
4. Seal Tube
5. Mark Tube
6. 1-Hole Creepage Extender
7.3-Hole Creepage Extender
8. Power Cable
