1kV Cold Shrink Cable Joint
Application:
Suitable for 0.6 / 1 kV PVC, cross-inked polyethylene, rubber insulation single core, two core, three core, four core, five core power cables.

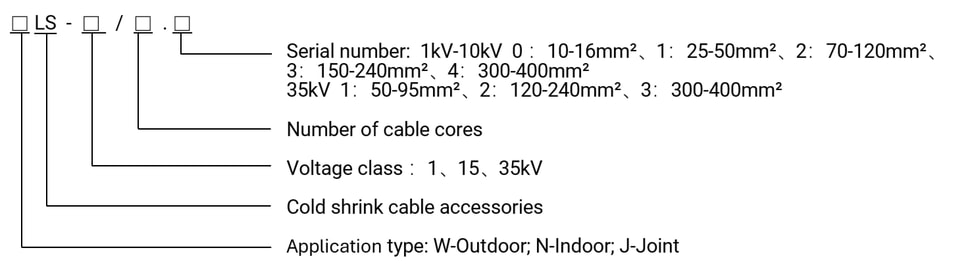

Model Description
Parameter

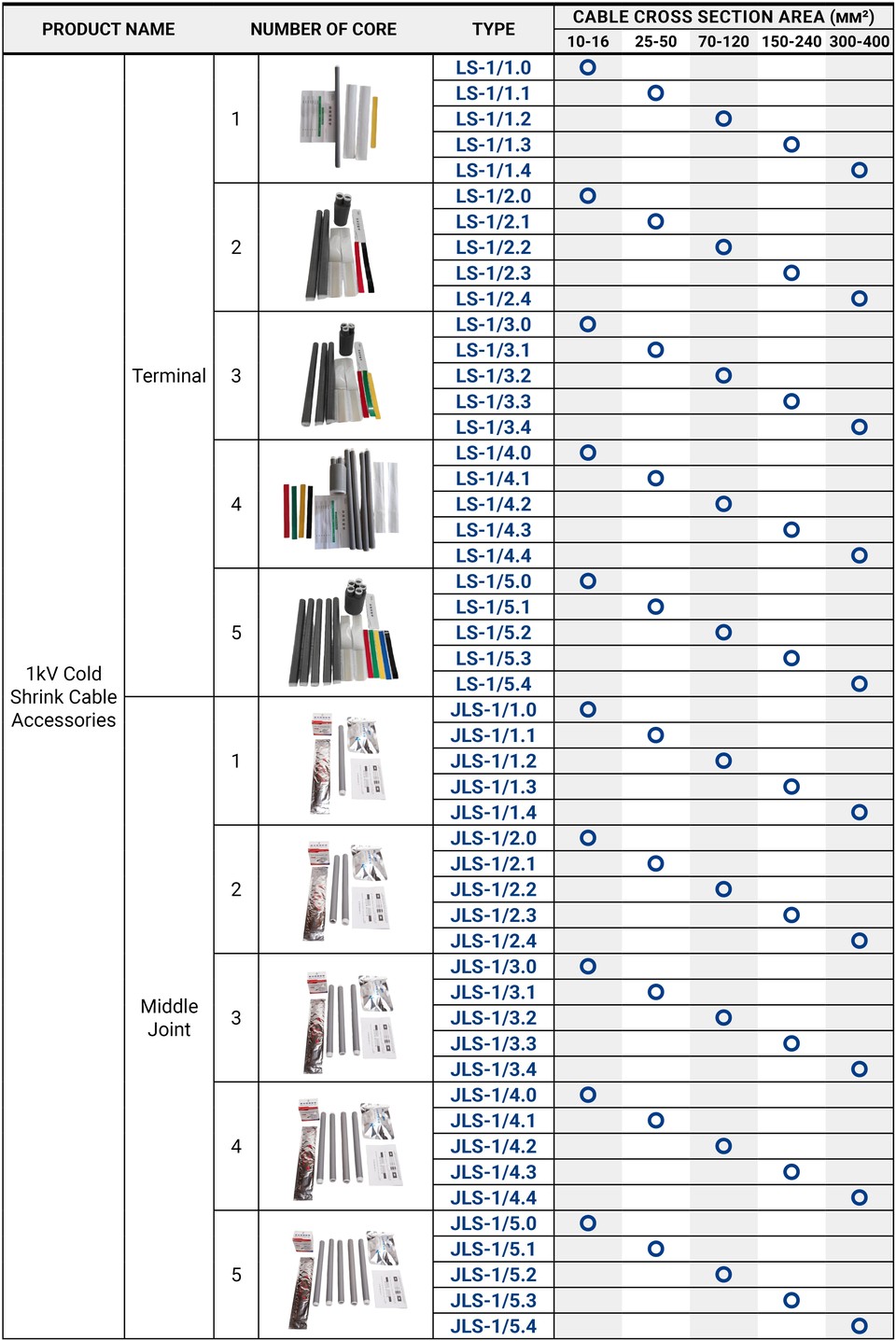

Product name | Type | Cable cross section area (mm²) | |
1kV Cold shrink cable joint | Single-core | JLS-1/1.0 | 10--16 |
JLS-1/1.1 | 25--50 | ||
JLS-1/1.2 | 70--120 | ||
JLS-1/1.3 | 150--240 | ||
JLS-1/1.4 | 300--400 | ||
Two-core | JLS-1/2.0 | 10--16 | |
JLS-1/2.1 | 25--50 | ||
JLS-1/2.2 | 70--120 | ||
JLS-1/2.3 | 150--240 | ||
JLS-1/2.4 | 300--400 | ||
Three-core | JLS-1/3.0 | 10--16 | |
JLS-1/3.1 | 25--50 | ||
JLS-1/3.2 | 70--120 | ||
JLS-1/3.3 | 150--240 | ||
JLS-1/3.4 | 300--400 | ||
Four-core | JLS-1/4.0 | 10--16 | |
JLS-1/4.1 | 25--50 | ||
JLS-1/4.2 | 70--120 | ||
JLS-1/4.3 | 150--240 | ||
JLS-1/4.4 | 300--400 | ||
Five-core | JLS-1/5.0 | 10--16 | |
JLS-1/5.1 | 25--50 | ||
JLS-1/5.2 | 70--120 | ||
JLS-1/5.3 | 150--240 | ||
JLS-1/5.4 | 300--400 | ||

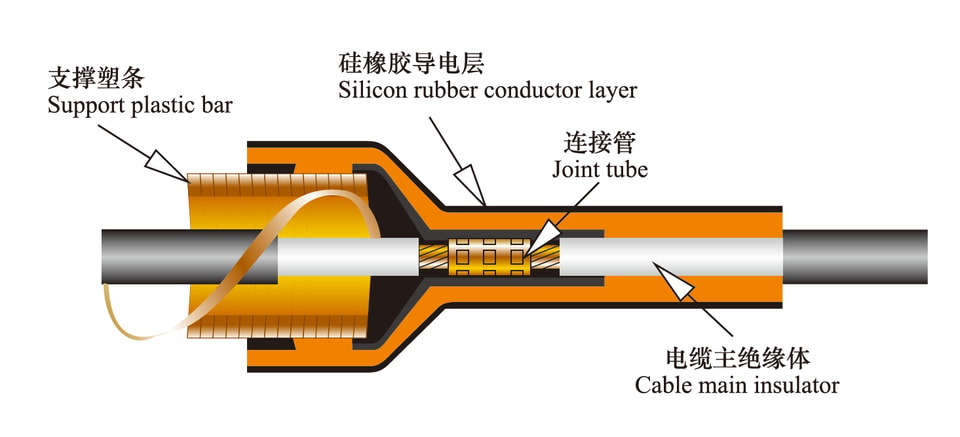

Cutaway view of cold shrinkable type middle joint tube
