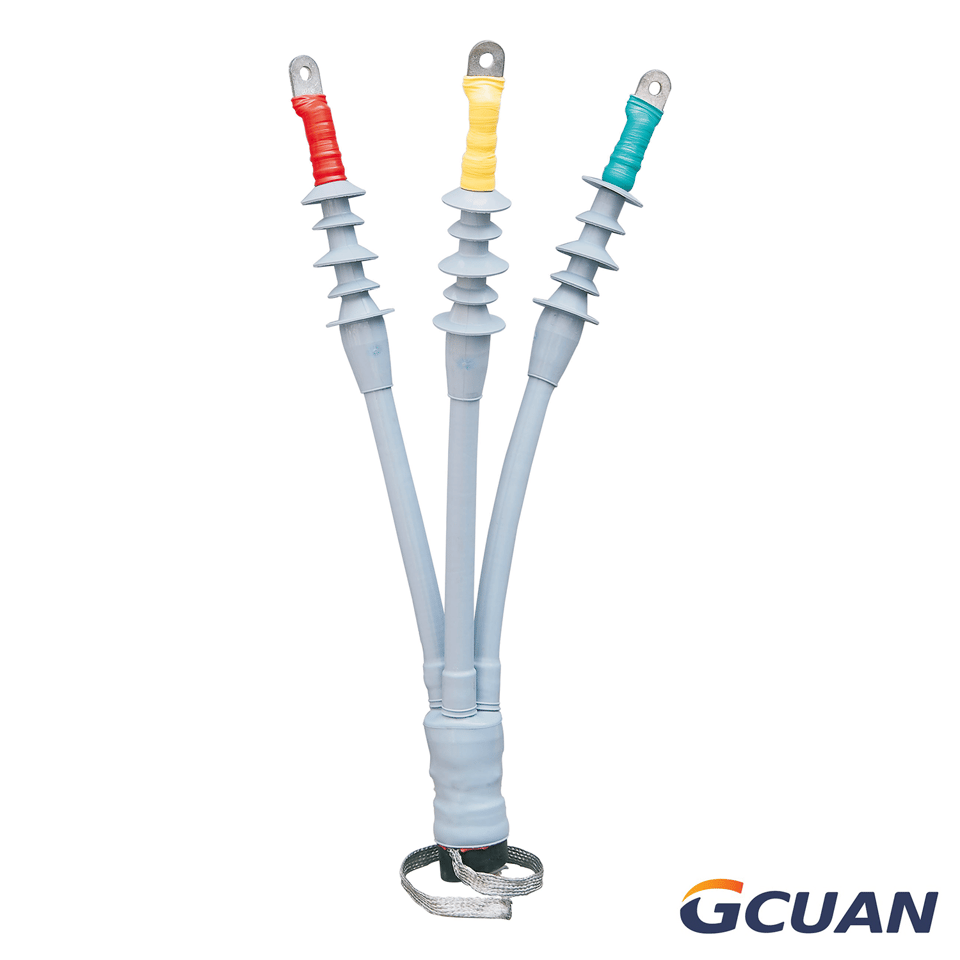

1kV Cold Shrink Cable Termination
Application:
Suitable for 0.6 / 1 kV PVC, cross-inked polyethylene, rubber insulation single core, two core, three core, four core, five core power cables.

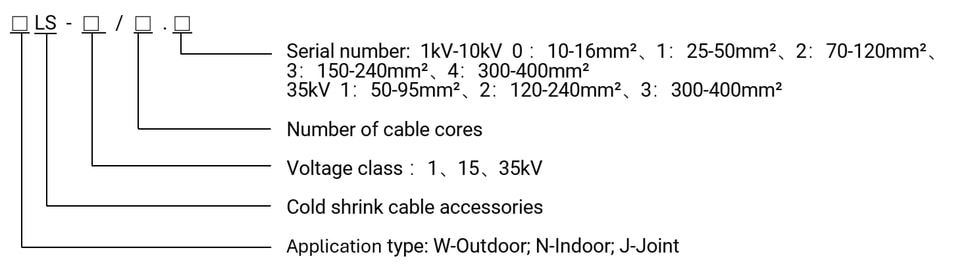

Model Description
Parameter
Product name | Type | Cable cross section area (mm²) | |
1kV Cold shrink cable termination | Single-core | LS-1/1.0 | 10--16 |
LS-1/1.1 | 25--50 | ||
LS-1/1.2 | 70--120 | ||
LS-1/1.3 | 150--240 | ||
LS-1/1.4 | 300--400 | ||
Two-core | LS-1/2.0 | 10--16 | |
LS-1/2.1 | 25--50 | ||
LS-112.2 | 70--120 | ||
LS-1/2.3 | 150--240 | ||
LS-1/2.4 | 300--400 | ||
Three-core | LS-1/3.0 | 10--16 | |
LS-1/3.1 | 25--50 | ||
LS-1/3.2 | 70--120 | ||
LS-1/3.3 | 150--240 | ||
LS-1/3.4 | 300--400 | ||
Four-core | LS-1/4.0 | 10--16 | |
LS-1/4.1 | 25--50 | ||
LS-1/4.2 | 70--120 | ||
LS-1/4.3 | 150--240 | ||
LS-1/4.4 | 300--400 | ||
Five-core | LS-1/5.0 | 10--16 | |
LS-1/5.1 | 25--50 | ||
LS-1/5.2 | 70--120 | ||
LS-1/5.3 | 150--240 | ||
LS-1/5.4 | 300--400 | ||

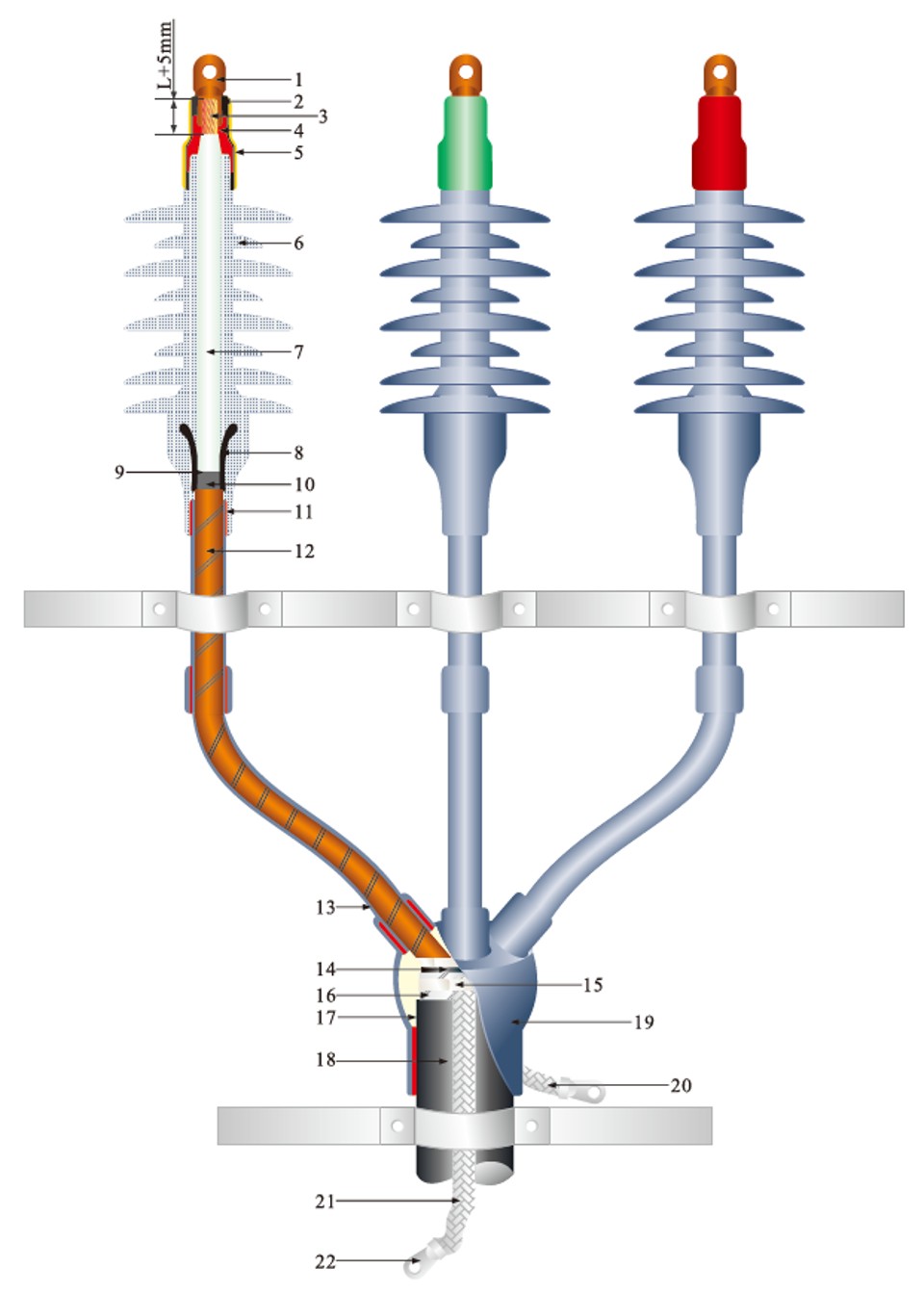

35KV Three-core cold-shrinkable indoor/outdoor terminal assembly diagram 1.Connection terminal
2.J-20 self-adhesive tape
3. Wire core
4. Seal gum
5.Chromatography sealed tube
6. Main insulating layer
7. Terminal body
8. Stress cone
9.Semi-conductive tape
10.Semiconductor shielded layer
11.Seal gum
12.Copper shielded tape
13.Cold-shrinkable insulating tube
14.Lining
15.Constant force spring
16. Steel armor
17.Filling adhesive
18.Cable outer sheath
19.Cold-shrinkable three-branch sheath
20.Shielded earthing wire
21.Armored earthing wire
22.Earthing terminal
L: Hole depth of connection terminal
