AD Dual hole copper lug
Application :
Used for connection of copper cable. From 38 to 500 mm². Dual hole design for higher stability of installation
Material :
Cu ≥ 99.9%
Surface :
Tin plated

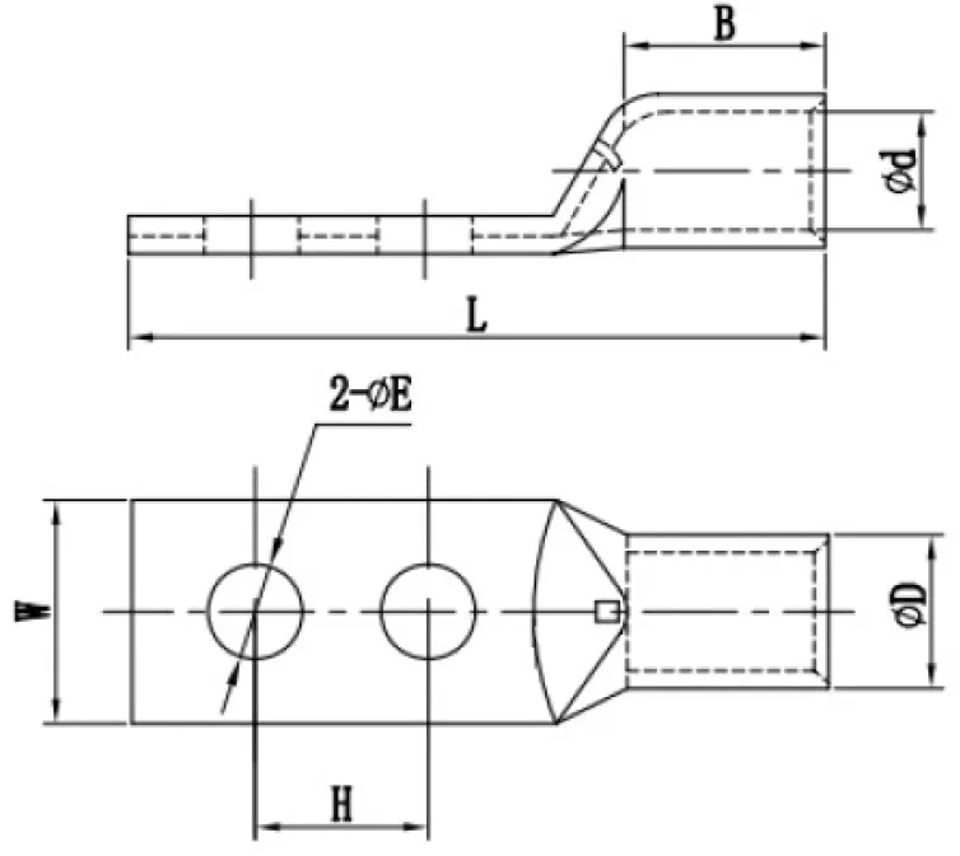

Dimensional Drawing:
Parameter
Type specification | Dimensions (mm) | ||||||
ΦE | ΦD | Φd | W | B | L | H | |
AD38-8 | 9.5 | 11.7 | 9.5 | 17.5 | 12.0 | 65.8 | 25.4 |
AD60-10 | 11.0 | 14.4 | 11.9 | 21.3 | 14.0 | 74.7 | 25.4 |
AD80-10 | 11.0 | 17.9 | 14.9 | 26.7 | 19.0 | 82.3 | 25.4 |
AD100-10 | 10.5 | 20.1 | 16.8 | 29.7 | 19.5 | 86.6 | 25.4 |
AD125-10 | 11.0 | 21.3 | 17.8 | 32.0 | 19.0 | 89.7 | 25.4 |
AD150-10 | 11.0 | 23.4 | 19.6 | 35.0 | 22.8 | 94.5 | 25.4 |
AD180-12 | 14.0 | 25.3 | 21.1 | 37.5 | 23.8 | 117.0 | 44.5 |
AD200-12 | 14.0 | 27 | 22.5 | 40.4 | 24.8 | 119.6 | 44.5 |
AD250-12 | 14.0 | 30.2 | 25.2 | 45.2 | 26.8 | 120.7 | 44.5 |
AD325-12 | 14.0 | 33.1 | 27.6 | 49.2 | 36.0 | 130.2 | 44.5 |
AD400-12 | 14.0 | 38.2 | 31.8 | 56.9 | 40.0 | 136.8 | 44.5 |
AD500-12 | 14.0 | 42.7 | 35.6 | 63.0 | 43.0 | 147.5 | 44.5 |
