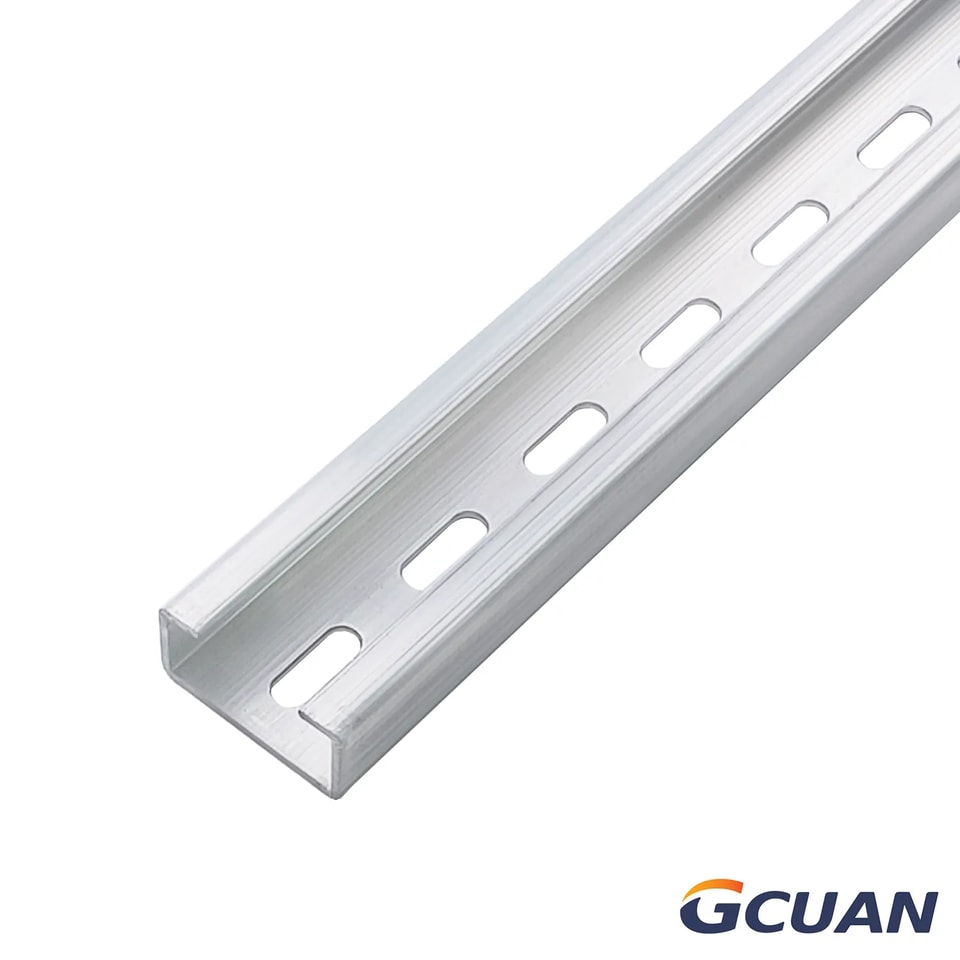

Aluminum C-Section DIN Rail
Profile Structure:
The C-section has a symmetrical “C” shape, with common variants like C20, C30, C40, and C50, offering strong wall support for heavier components.
Available in solid, slotted, or perforated styles for flexible installation; some modern devices may require adapters for compatibility.
Usage Scenarios:
Commonly used in industrial control systems, power supplies, and transformers—especially in legacy systems or light-duty applications.
Quick selection
Product Description
Dimensional Drawing:
Parameter:
Item | Dimensions (mm) | |||||
Outer Width | Inner Width | Height | Thickness | Hole size | Hole Spacing | |

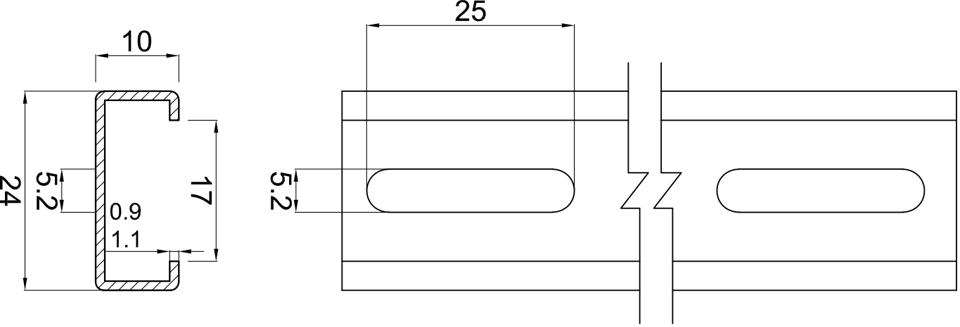

C24-10 AL | 24 | 17 | 10 | 0.9 | 5.2*25 | 35.5 |
1.1 | ||||||

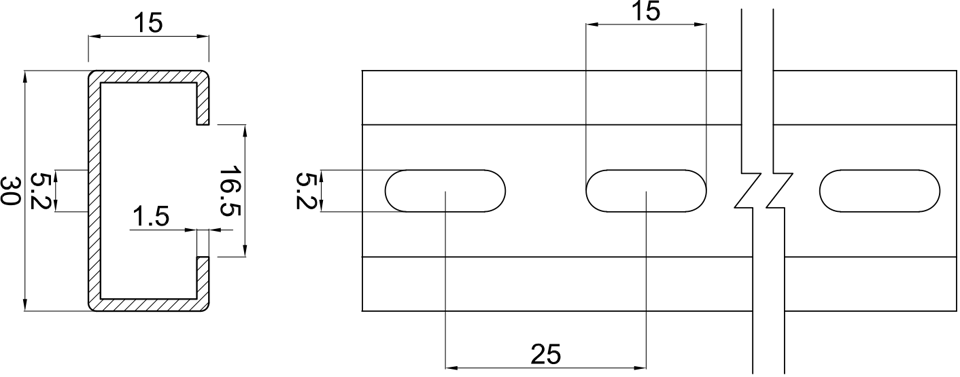

C30-15 AL | 30 | 16.5 | 15 | 1.5 | 5.2*15 | 25 |
