Aluminum Top Hat DIN Rail
Profile Structure:
Standard top hat (TS35) profile with a 35mm wide U-shaped cross-section; available in 7.5mm or 15mm heights.
Mounting Options:
Available in solid, slotted, or perforated versions for easy component fastening and cable routing.
Usage Scenarios:
Commonly used in control panels and distribution boxes for mounting circuit breakers, terminal blocks, relays, and power supplies.
Product Description

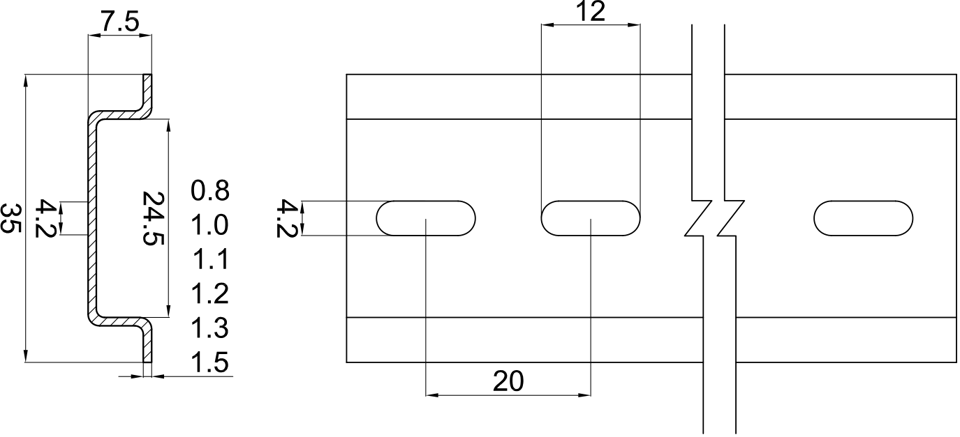

Dimensional Drawing:
Parameter:
Item | Dimensions (mm) | Length | |||||
Outer Width | Inner Width | Height | Thickness | Hole size | Hole Spacing | ||
TH35-7.5 AL | 35 | 24.5 | 7.5 | 0.8 | 4.2*12 | 20 | 1m |
1.0 | |||||||
1.1 | |||||||
1.2 | |||||||
1.3 | |||||||
1.5 | |||||||

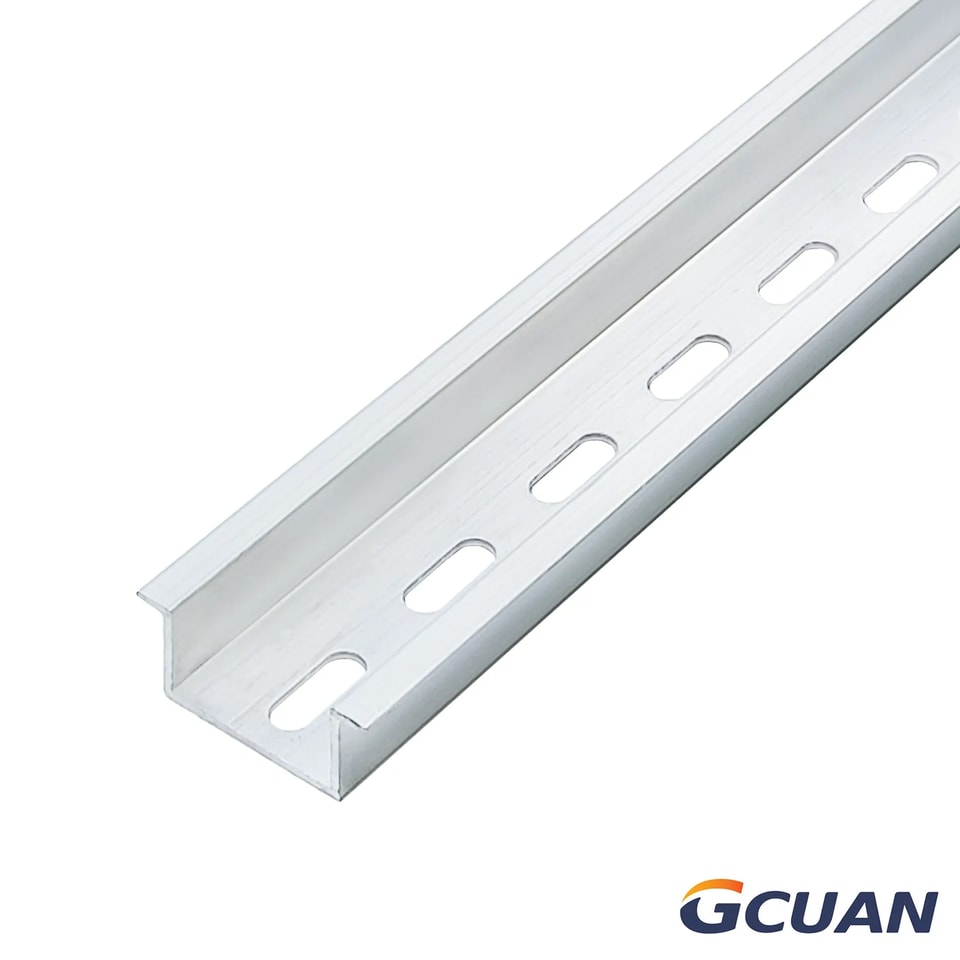

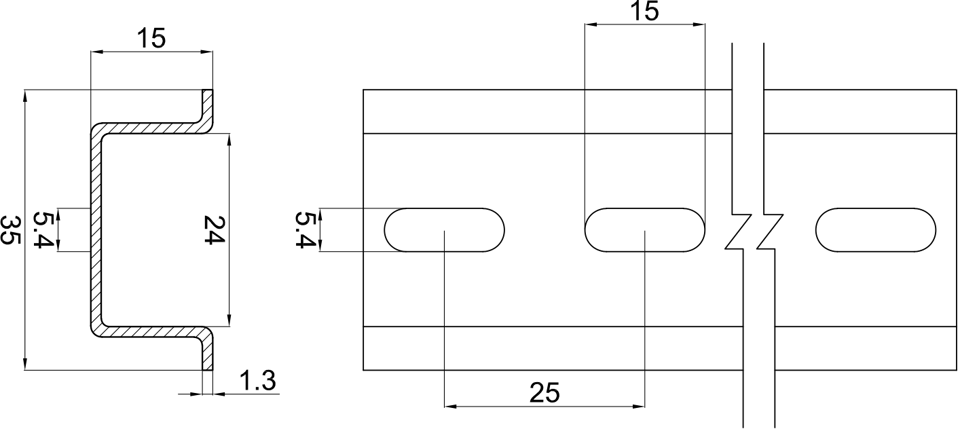

TH35-15 AL | 35 | 24 | 15 | 1.3 | 5.4*15 | 25 | 1m |

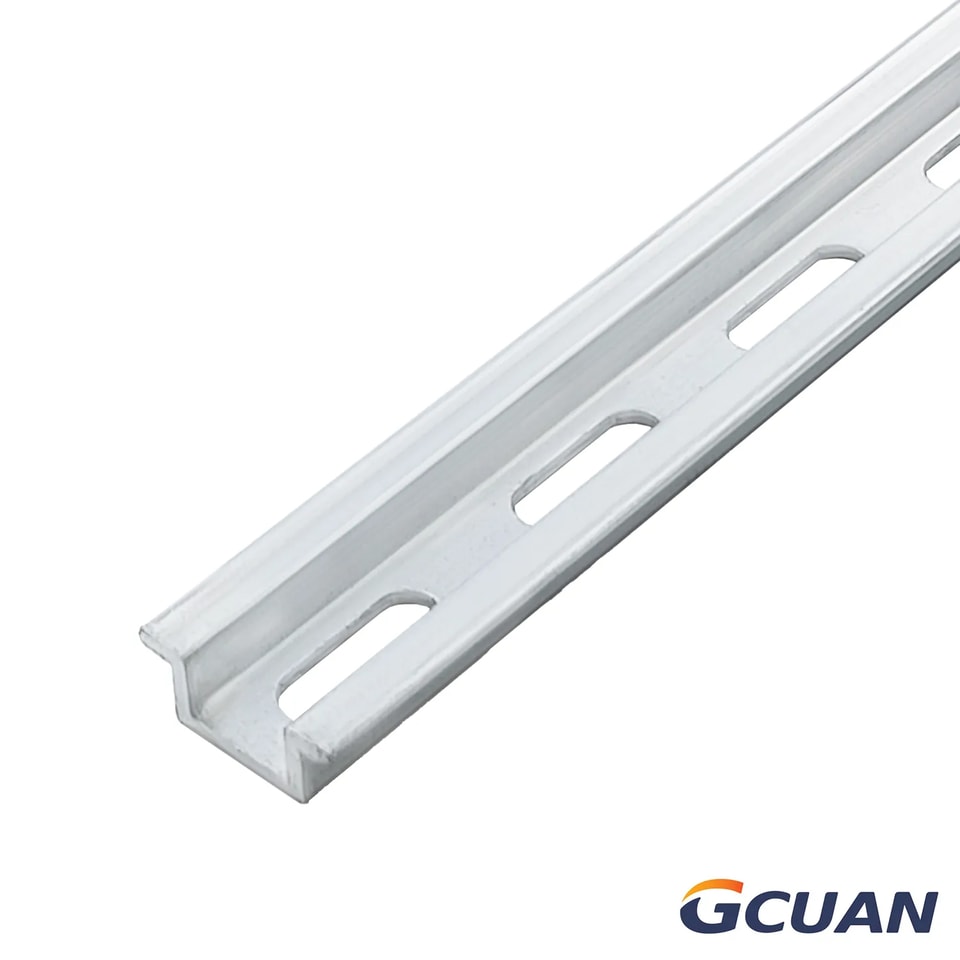

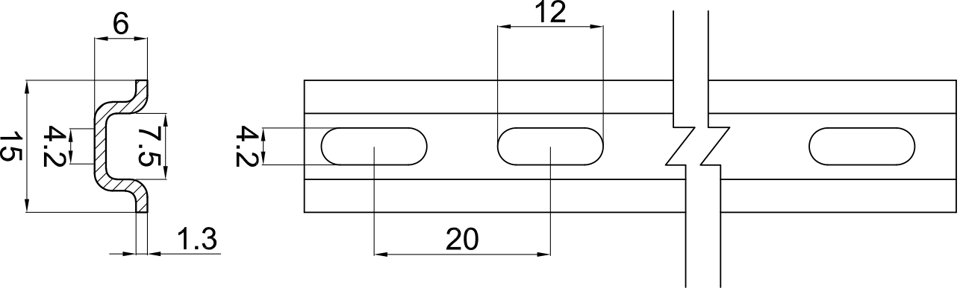

TH15-6 AL | 15 | 7.5 | 6 | 1.3 | 4.2*12 | 20 | 1m |
