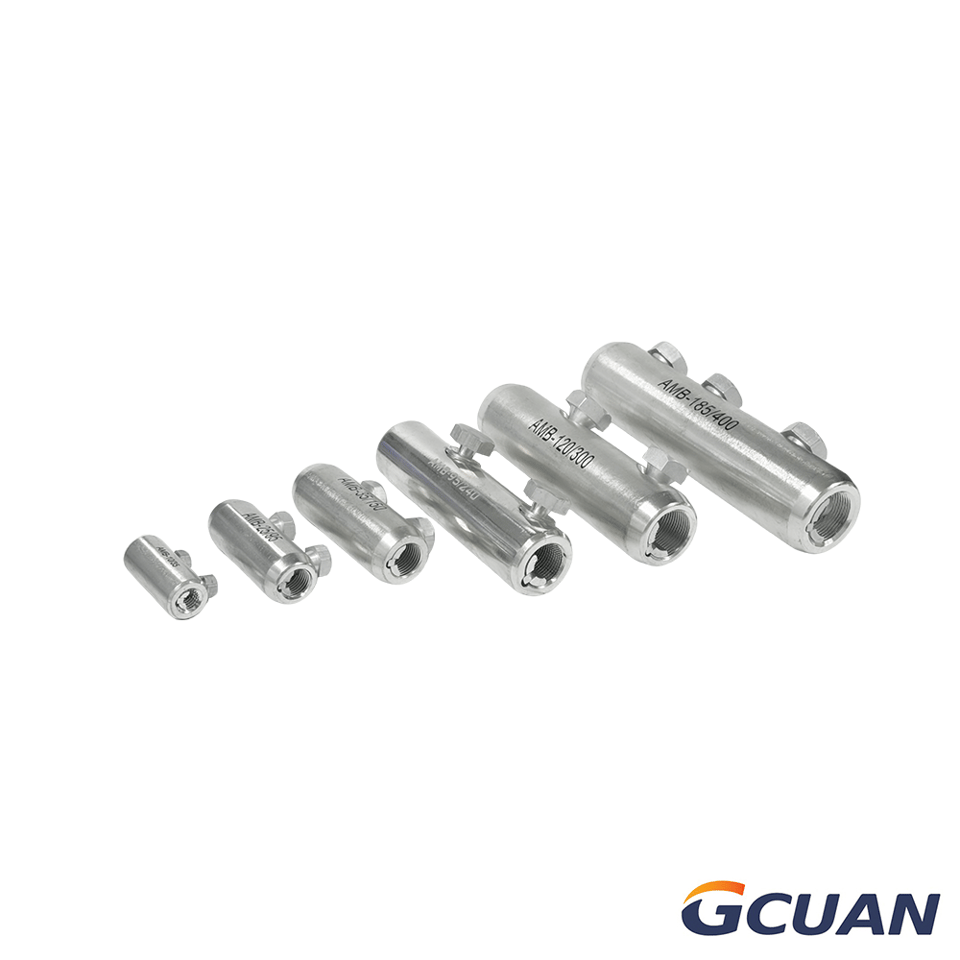

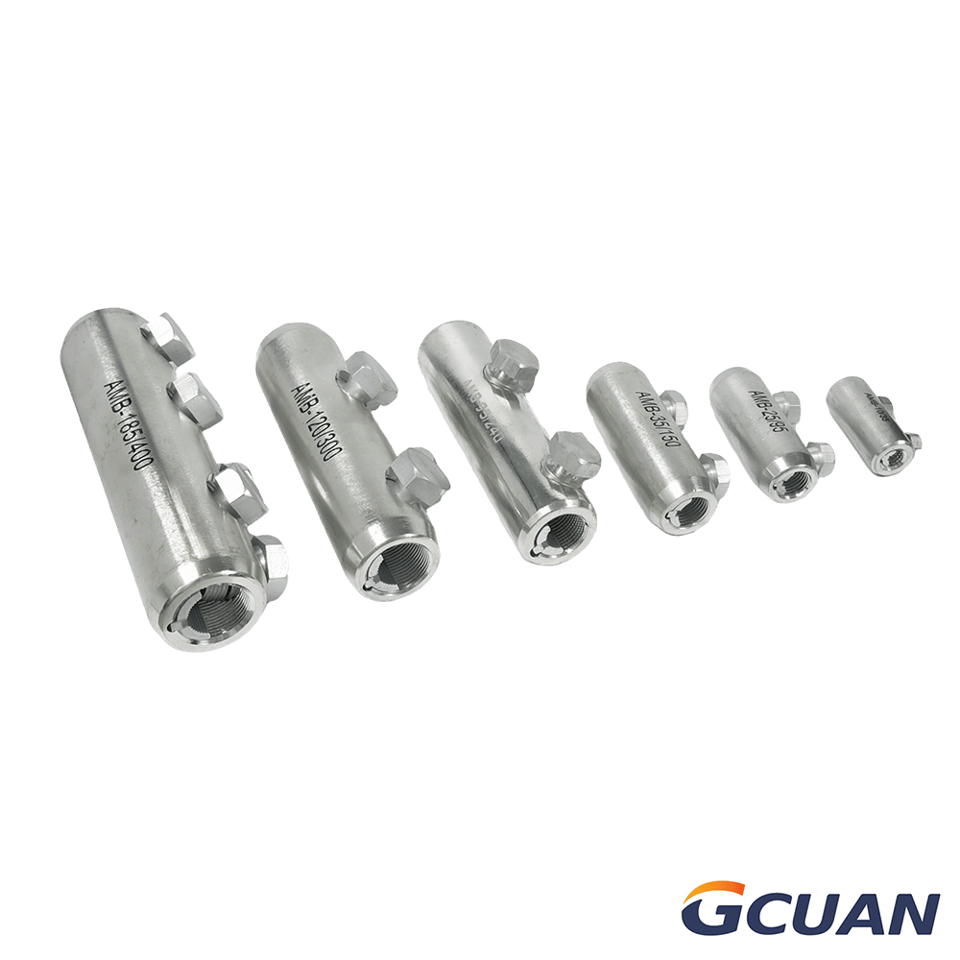

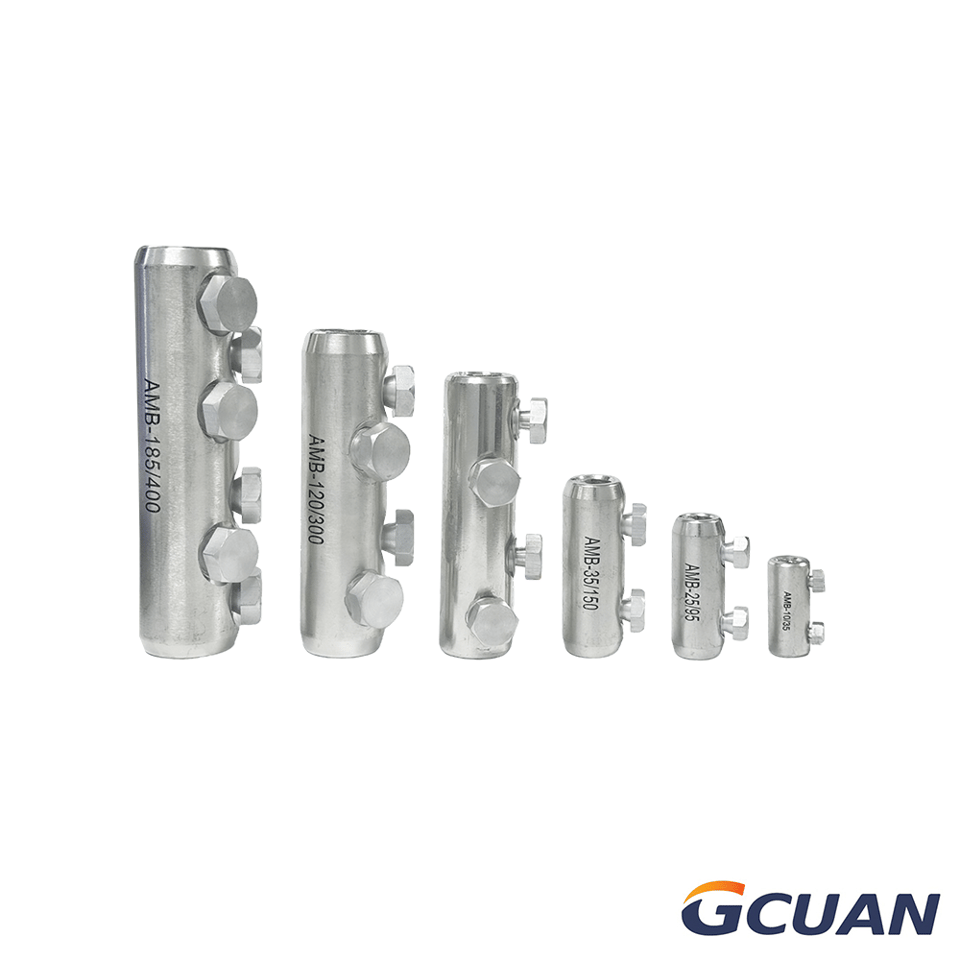

BSM Mechanical Connector

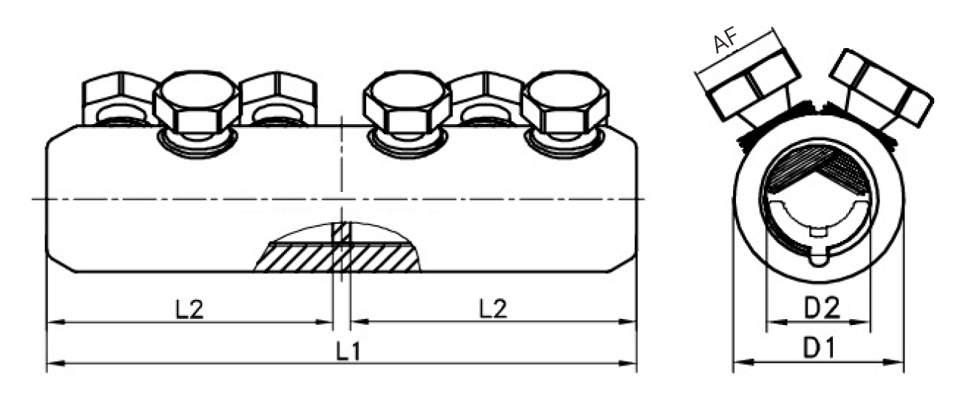

Type

Cross Sectional Range (mm2)

Dimensions (mm)

Head Size (AF)

Contact Bolts Quantity

L1

L2

D1

D2

BSM-10/35

10-35

45

20

19

8.5

10

2

BSM-25/95

25-95

65

30

24

12.8

13

2

BSM-35/150

35-150

80

35

28

15.8

17

2

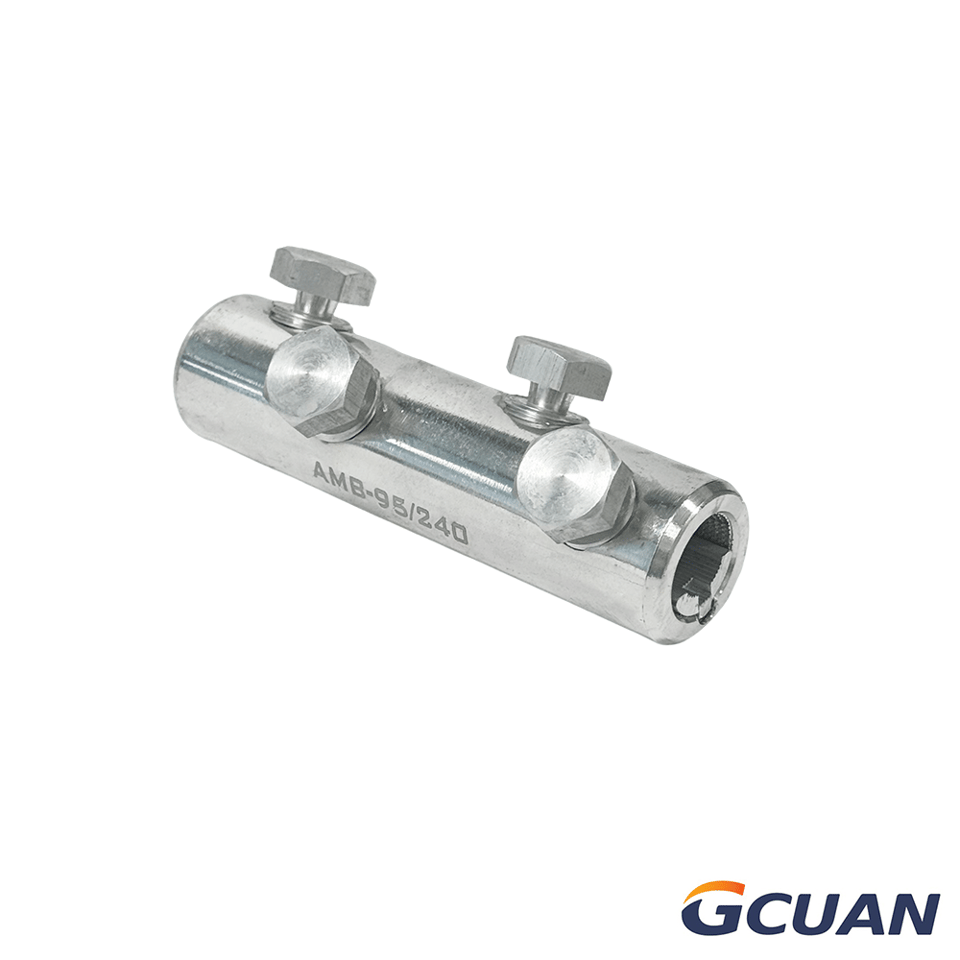

BSM-95/240

95-240

125

60

33

20

19

4

BSM-120/300

120-300

140

65

37

24

22

4

BSM-185/400

185-400

170

80

42

25.5

22

6

BSM-500/630

500-630

200

95

50

33

27

6

BSM-800/1000

800-1000

270

130

56

36

27

8

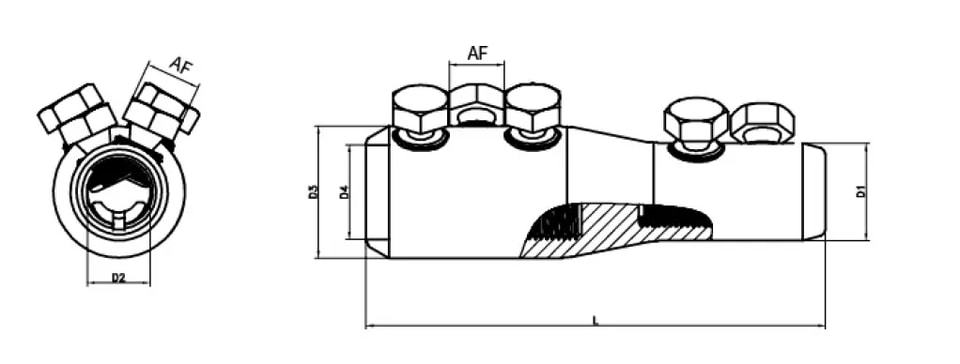

Product Model

Wire cross

section（mm²）

Dimensions

(mm)

Contact Bolts

Quantity

Head Size

(AF)

Main

 Line

Branch

Line

L1

D1

D2

D3

D4

Main

Line

Branch

Line

Main

Line

Branch

Line

BSMB 25/95-95/240

95-240

25-95

125

24

33

33

20

2

1

19

13

BSMB 95/240-185/400

185-400

95-240

170

33

42

42

25.5

3

2

22

19

BSMB 185/400-500

500

185-400

190

42

25.5

46

30

3

3

27

22

BSMB 185/400-630

630

185-400

200

42

50

50

33

3

3

27

22

BSMB 500-800

800

500

180

46

56

56

36

4

3

13

13

BSMB 630-800

800

630

180

50

56

56

36

4

3

13

13

BSMB 630-1000

1000

630

180

50

60

60

40

4

3

13

13

BSMB 800-1000

1000

800

180

56

60

60

40

4

3

13

13

BSMB 95/240-120/300

120-300

95-240

140

34

22

37

24

2

2

22

19

BSMB 95/240-500

500

95-240

160

34

22

46

30

3

2

19

13
