DLS Dual hole aluminum lug
Application :
Used for connection of aluminum cable with aluminum end of electrical equipment in low voltage. From 25 to 400 mm². Dual hole design for higher stability of installation
Material :
AL ≥ 99.5%
Surface:
acid pickling
Product Description

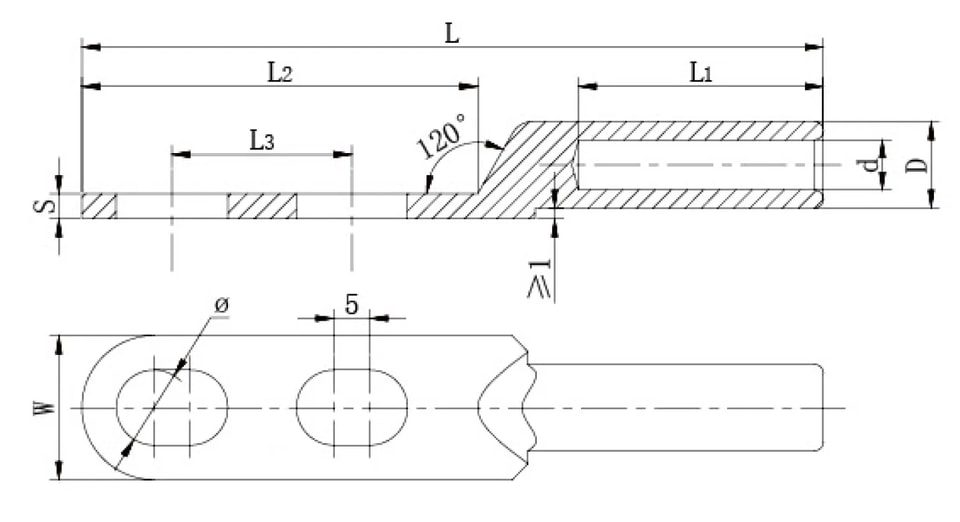

Dimensional Drawing:
Parameter
Type specification | Φ | D | d | L1 | L2 | L3 | W | S | L |
DL-25S | 10.5 | 12 | 7 | 34 | 54 | 25 | 20 | 3..5 | 103 |
DL-35S | 10.5 | 14 | 8.5 | 40 | 54 | 25 | 20 | 3.5 | 108 |
DL-50S | 10.5 | 16 | 9.5 | 42 | 57 | 25 | 23 | 4 | 115 |
DL-70S | 12.5 | 18 | 12 | 47 | 61 | 25 | 26 | 4.5 | 125 |
DL-95S | 12.5 | 21 | 13 | 50 | 65 | 25 | 28 | 5 | 135 |
DL-120S | 13 | 23 | 15 | 53 | 71 | 30 | 30 | 5.5 | 148 |
DL-150S | 13 | 25 | 16 | 55 | 73 | 30 | 34 | 6 | 152 |
DL-185S | 13 | 27 | 18 | 58 | 80 | 35 | 37 | 6.5 | 166 |
DL-240S | 13 | 30 | 20 | 60 | 82 | 35 | 40 | 7.5 | 170 |
DL-300S | 16.5 | 34 | 23 | 65 | 89 | 37.5 | 45 | 8.5 | 187 |
DL-400S | 16.5 | 38 | 26 | 70 | 89 | 37.5 | 52 | 9.5 | 194 |
