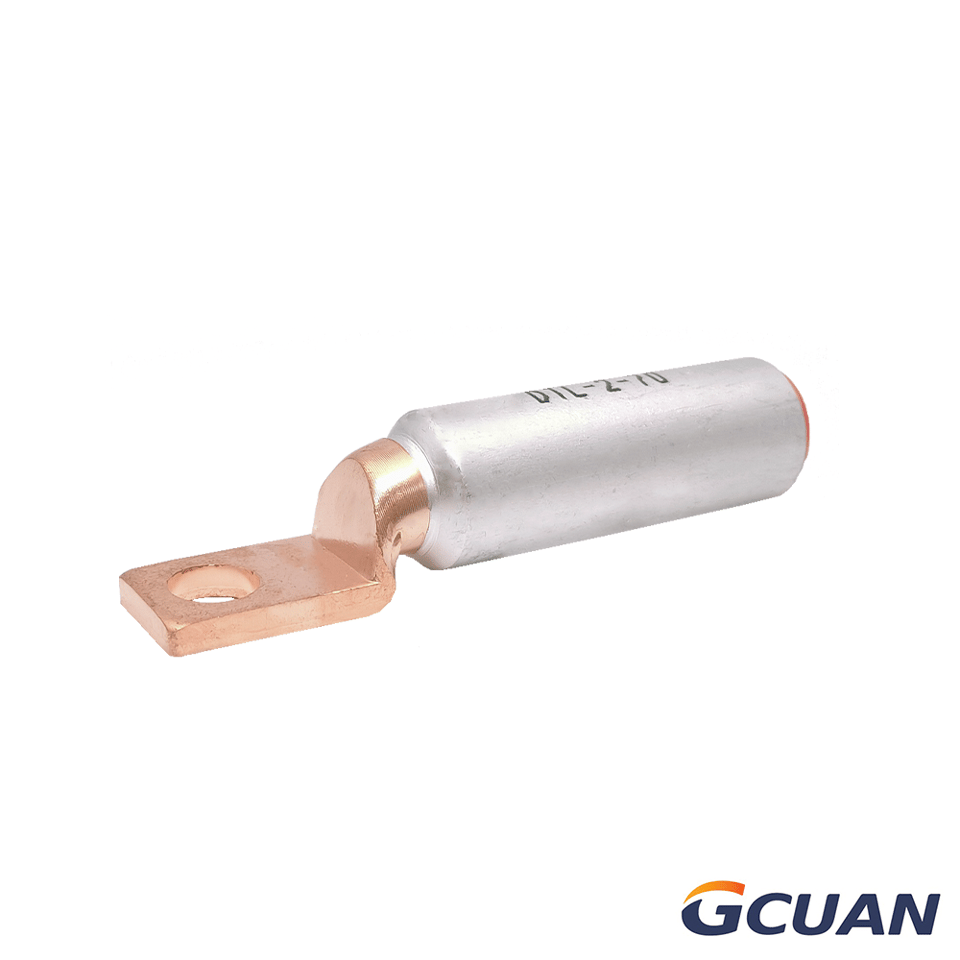

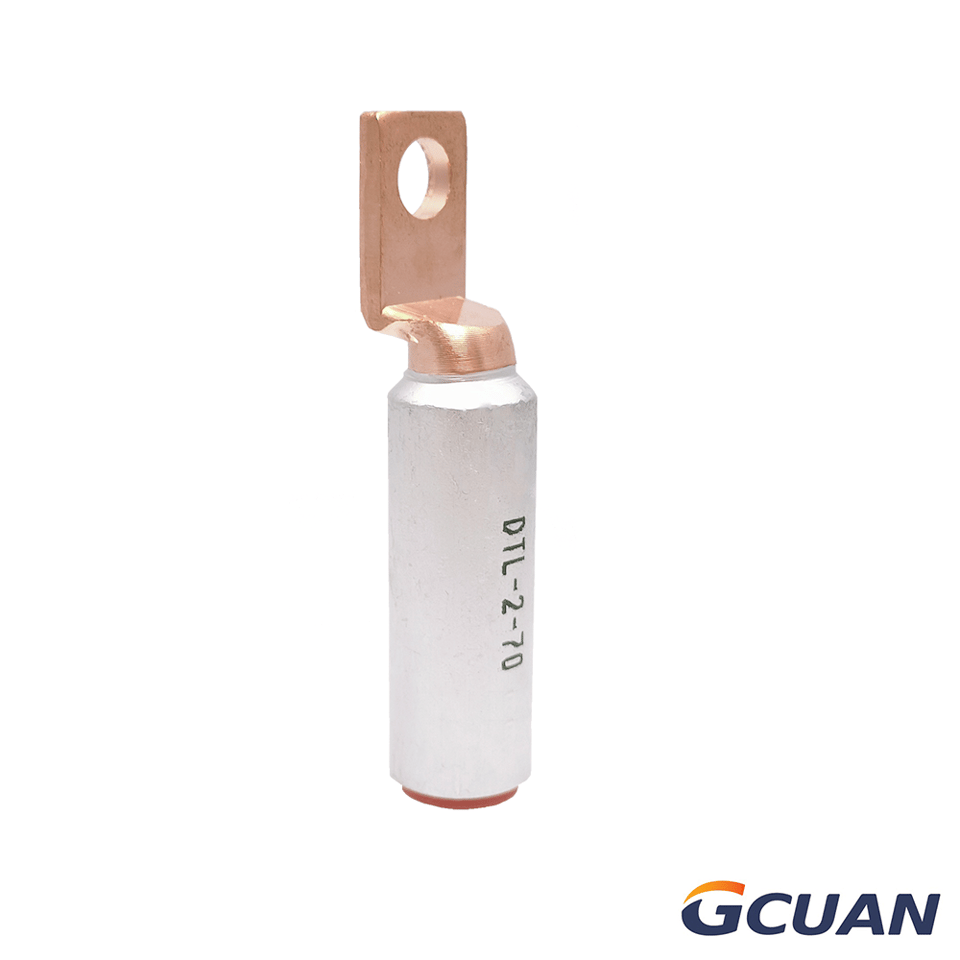

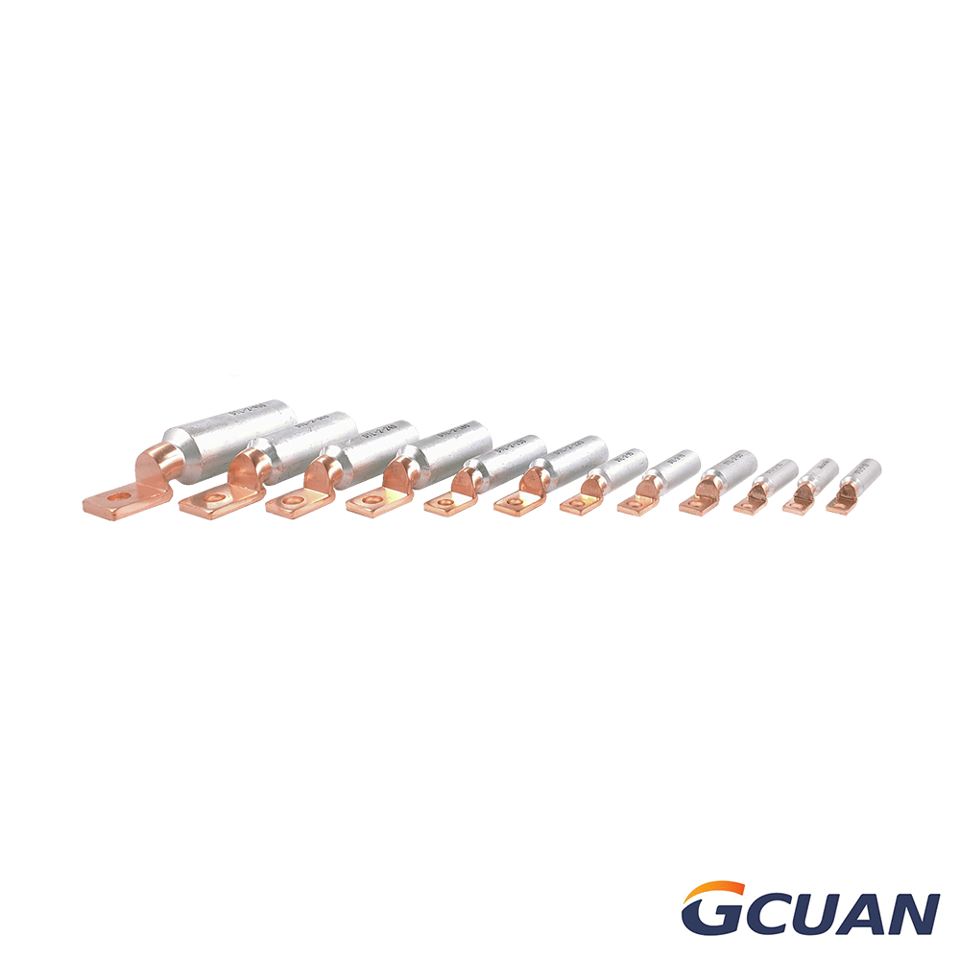

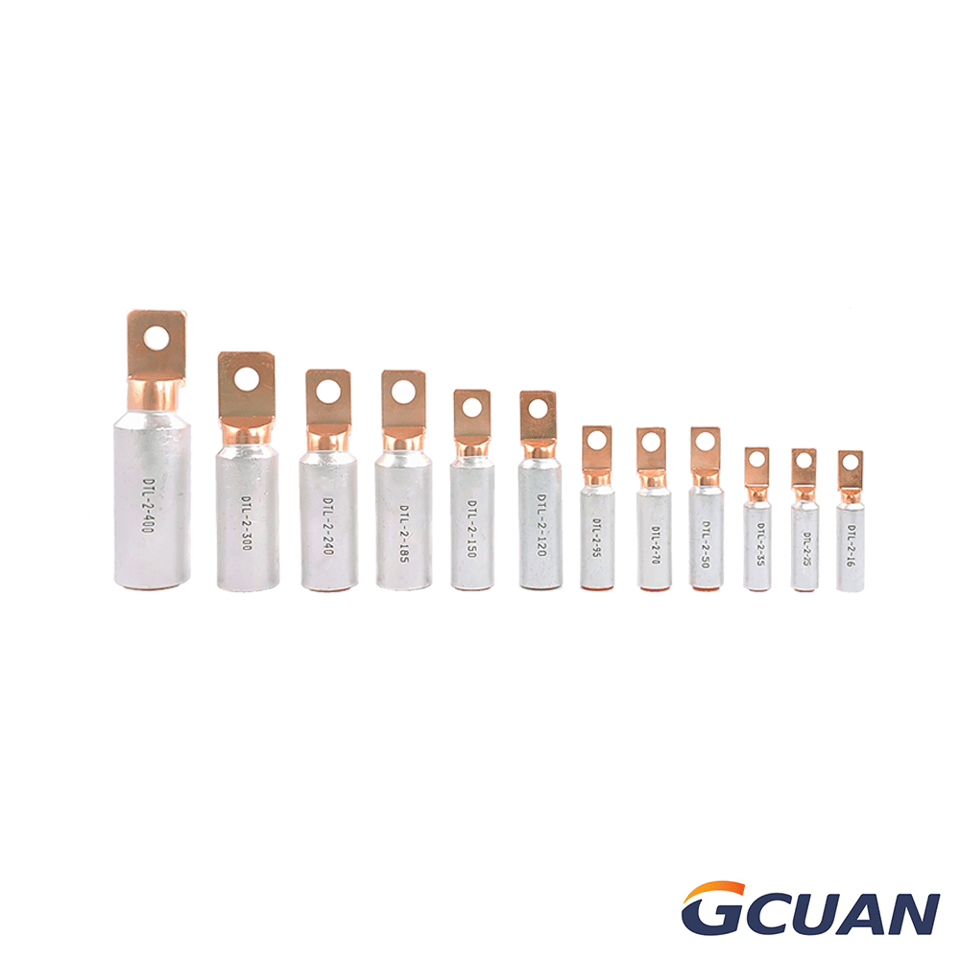

DTL-2F Bimetallic Cable Lug
Application:
Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage. From 16 to 500mm2
Material:
Al≥99.5%, Cu≥99.9%
Feature:
·Oil blocking structure
·Friction welded
·Squared head design

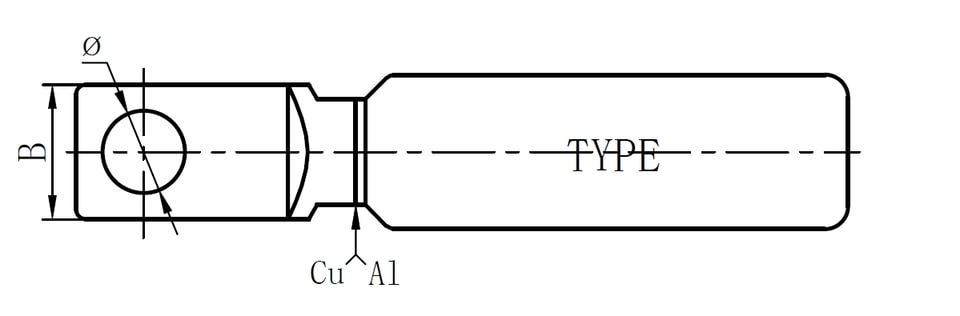

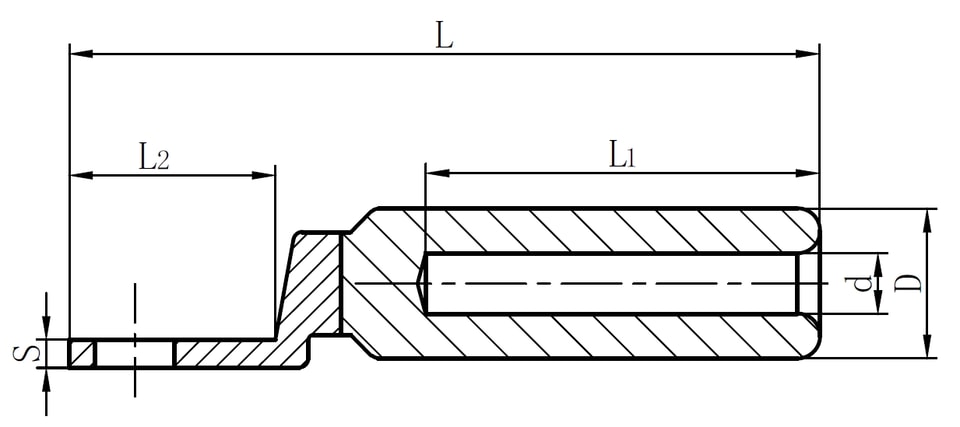

Dimensional Drawing:
Parameter:
Type | Φ | D | d | L1 | L2 | B | S | L |
DTL-2F-16 | 8.5 | 16 | 6.3 | 42 | 22 | 14 | 3 | 80 |
DTL-2F-25 | 8.5 | 16 | 7.3 | 42 | 22 | 14 | 3 | 80 |
DTL-2F-35 | 8.5 | 16 | 8.5 | 42 | 22 | 14 | 3 | 80 |
DTL-2F-50 | 10.5 | 20 | 9.5 | 50 | 24 | 17 | 4 | 90 |
DTL-2F-70 | 10.5 | 20 | 11.5 | 50 | 24 | 17 | 4 | 90 |
DTL-2F-95 | 10.5 | 20 | 13.5 | 50 | 24 | 17 | 4 | 90 |
DTL-2F-120 | 10.5 | 25 | 15.1 | 60 | 28 | 21 | 4.5 | 110 |
DTL-2F-150 | 10.5 | 25 | 16.5 | 60 | 28 | 21 | 4.5 | 110 |
DTL-2F-185 | 13 | 32 | 18.5 | 60 | 32 | 25 | 5.5 | 120 |
DTL-2F-240 | 13 | 32 | 20.7 | 60 | 32 | 25 | 5.5 | 120 |
DTL-2F-300 | 13 | 34 | 23.5 | 65 | 38 | 31 | 6 | 130 |
DTL-2F-400 | 13 | 40 | 26.2 | 80 | 38 | 31 | 7.5 | 150 |
DTL-2F-500 | 13 | 40 | 29.2 | 80 | 38 | 31 | 7.5 | 150 |
