DTL-5 Bimetallic lug
Application:
DTL5-Forged Bimetallic Lugs are suitable for connecting ABC cables to transformers, switchgear etc. on the pole top.
Material:
Al≥99.5%, Cu≥99.9%
Feature:
Aluminum barrel is filled by neutral grease and covered by cap.
Friction welded
Product Description

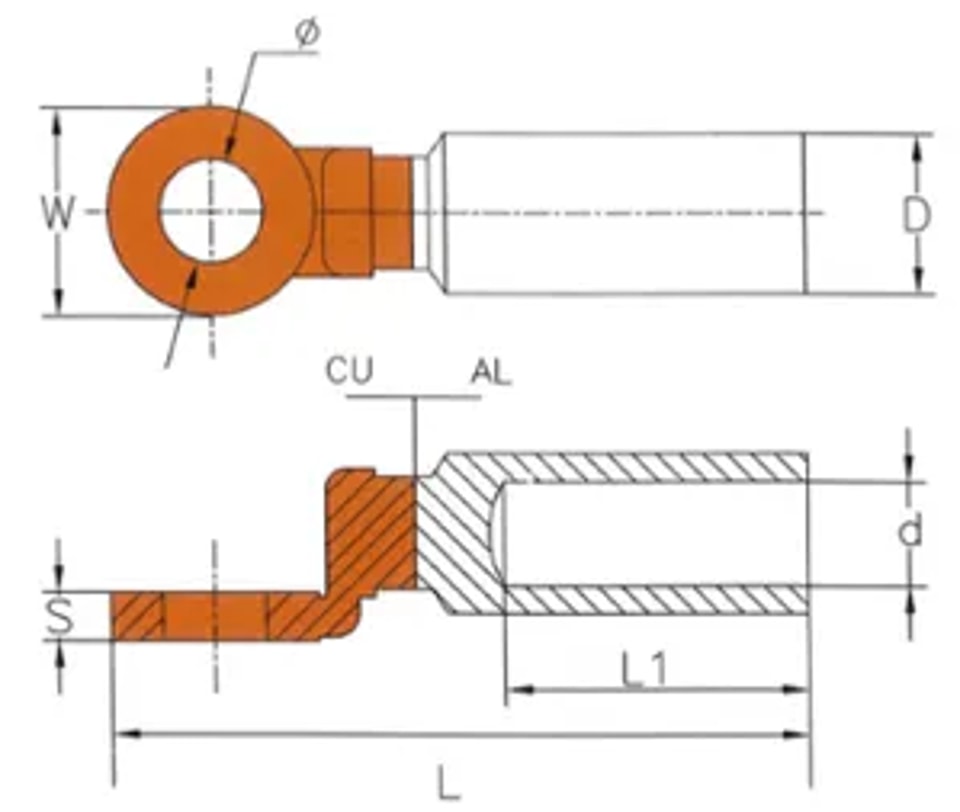

Dimensional Drawing:
Parameter
Type specification | Φ | D | d | L | L1 | W | S |
DTL-5-16 | 10.5 | 16 | 5.5 | 80 | 40 | 20 | 4.0 |
DTL-5-25 | 10.5 | 16 | 7.0 | 80 | 40 | 20 | 4.0 |
DTL-5-35 | 10.5 | 16 | 8.2 | 80 | 40 | 20 | 4.0 |
DTL-5-50 | 12.8 | 20 | 9.2 | 90 | 43 | 25 | 5.5 |
DTL-5-70 | 12.8 | 20 | 11.2 | 90 | 43 | 25 | 5.5 |
DTL-5-95 | 12.8 | 20 | 12.5 | 90 | 43 | 25 | 5.5 |
DTL-5-120 | 12.8 | 25 | 14 | 112 | 58 | 30 | 6.5 |
DTL-5-150 | 12.8 | 25 | 16.5 | 112 | 58 | 30 | 6.5 |
DTL-5-185 | 12.8 | 32 | 18.6 | 122 | 60 | 35 | 7.0 |
DTL-5-240 | 12.8 | 32 | 20.0 | 122 | 60 | 35 | 7.0 |
DTL-5-300 | 12.8 | 34 | 23.5 | 125 | 65 | 35 | 7.0 |
DTL-5-400 | 17.0 | 40 | 26.0 | 160 | 90 | 36 | 7.0 |
DTL-5-500 | 17.0 | 40 | 29.5 | 160 | 90 | 36 | 7.0 |
