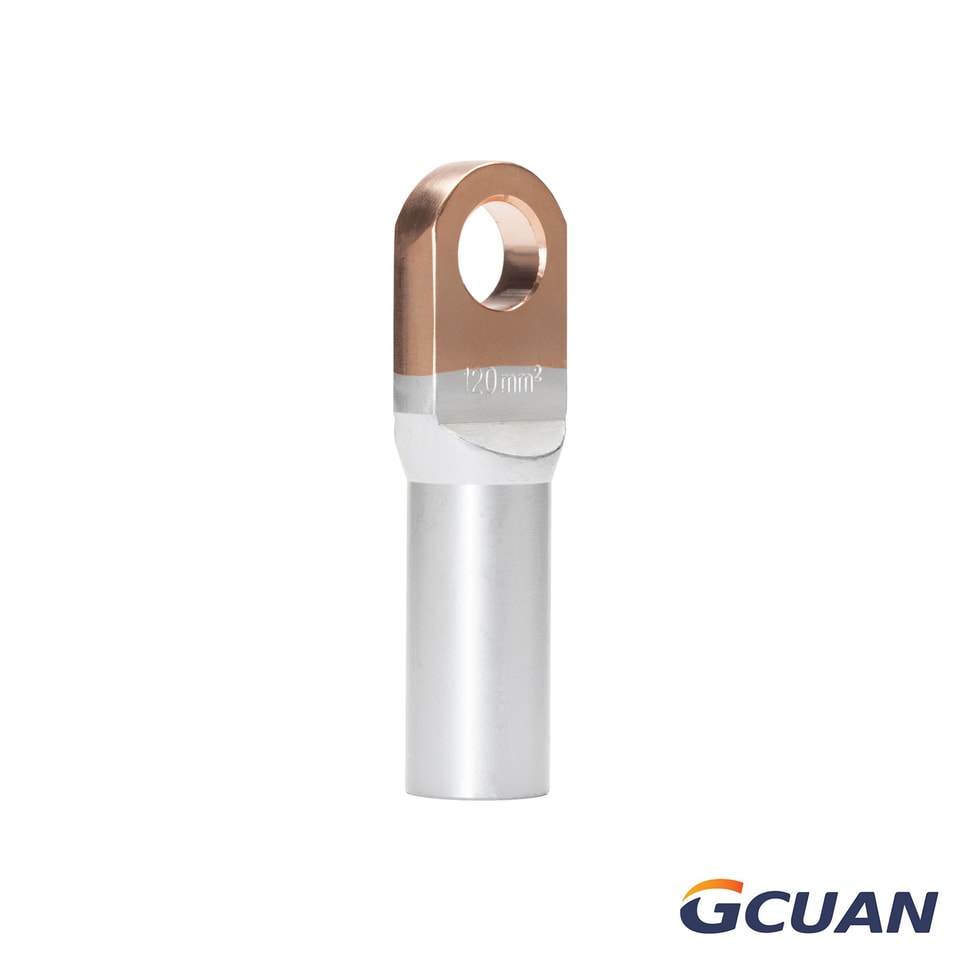

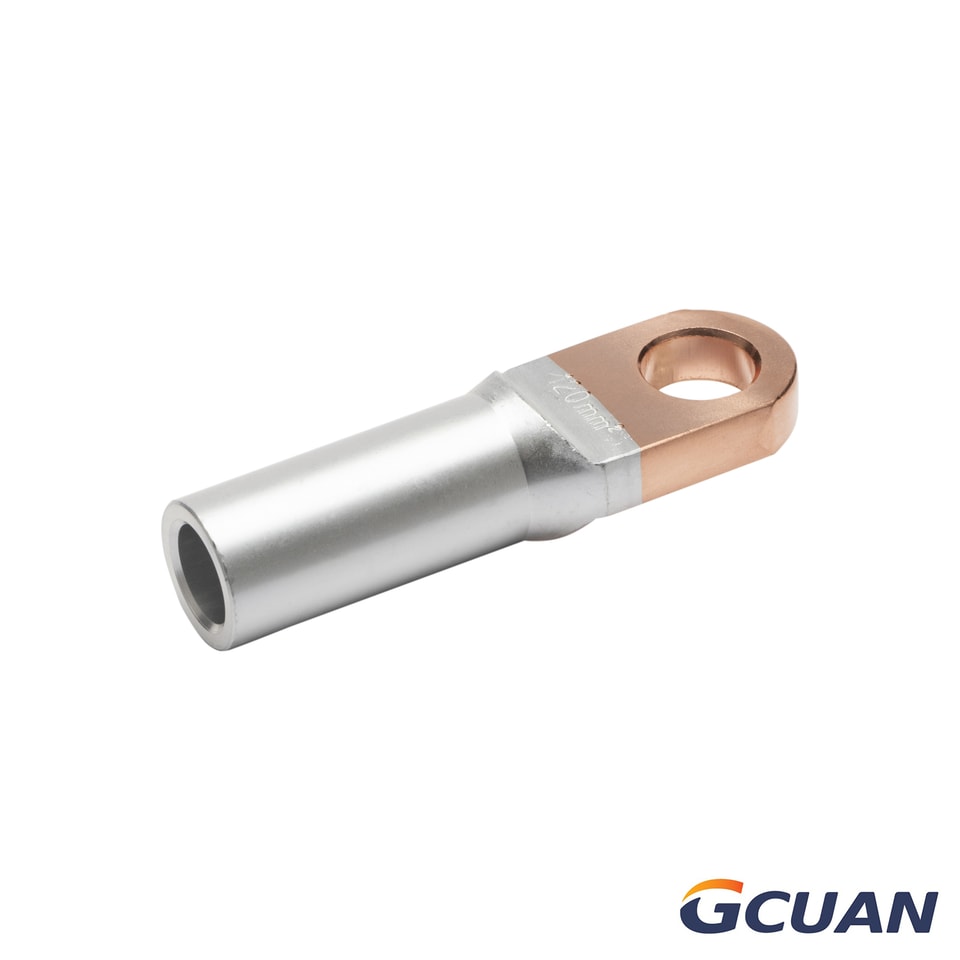

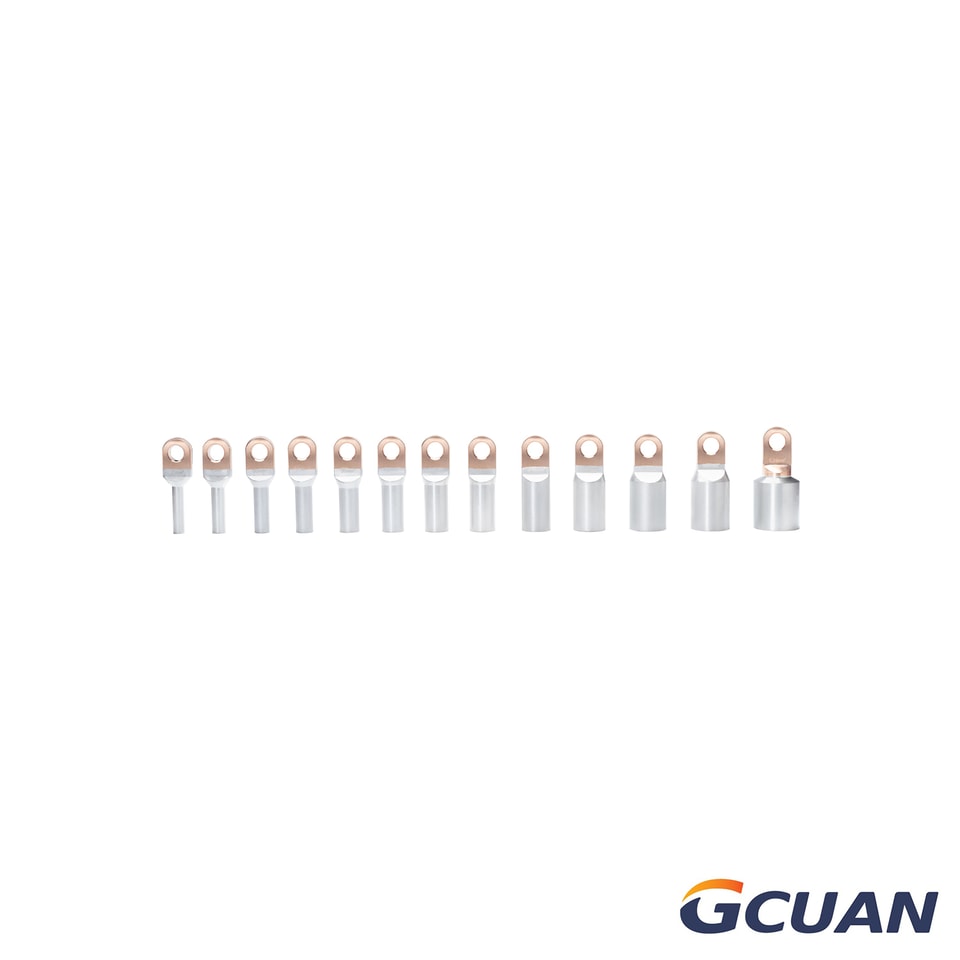

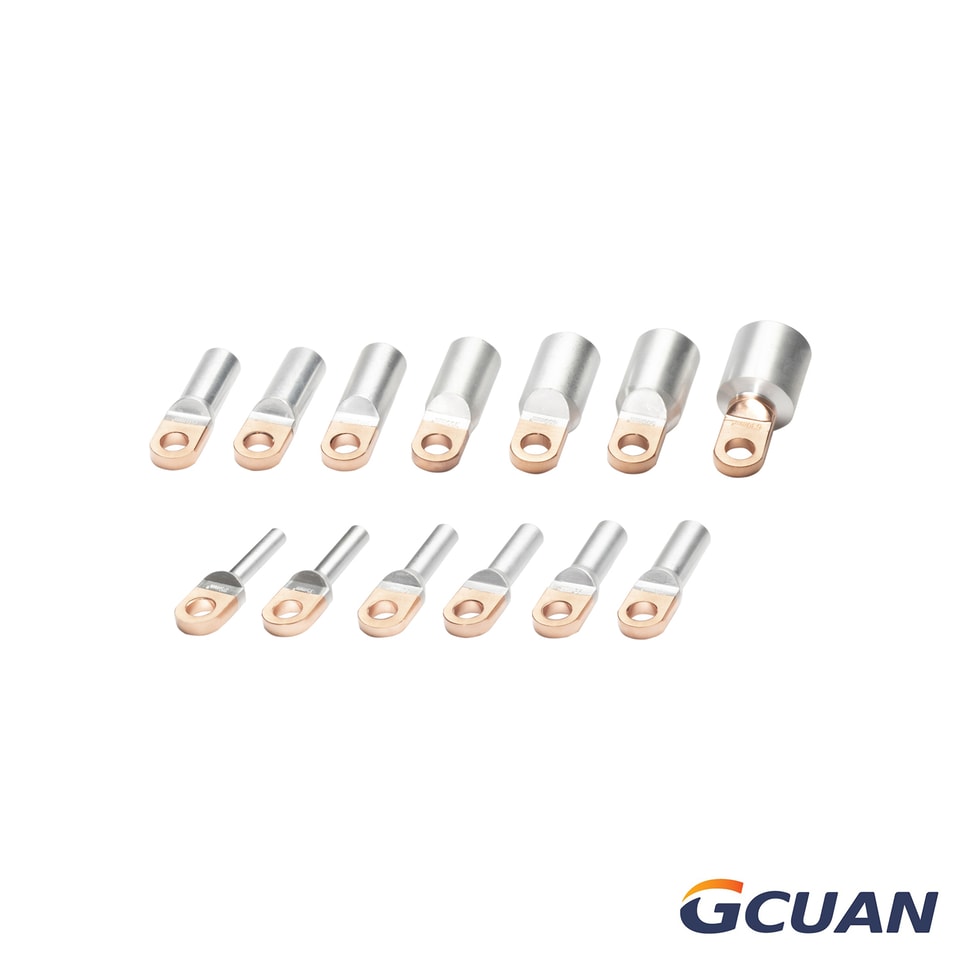

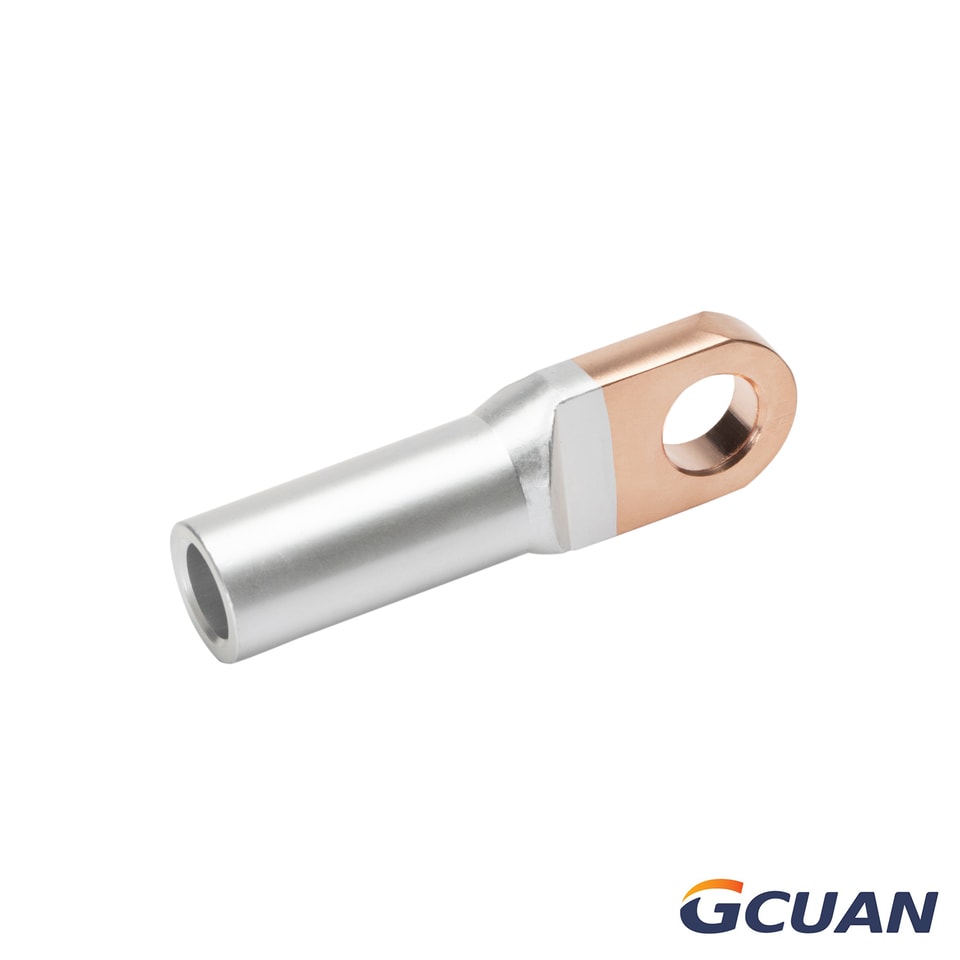

DTLO Bimetallic Cable Lug

Application:

Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage. From 25 to 630mm²

Material:

Al≥99.5%, Cu≥99.9%

Feature:

Friction welded

Request a Quote

Product Description

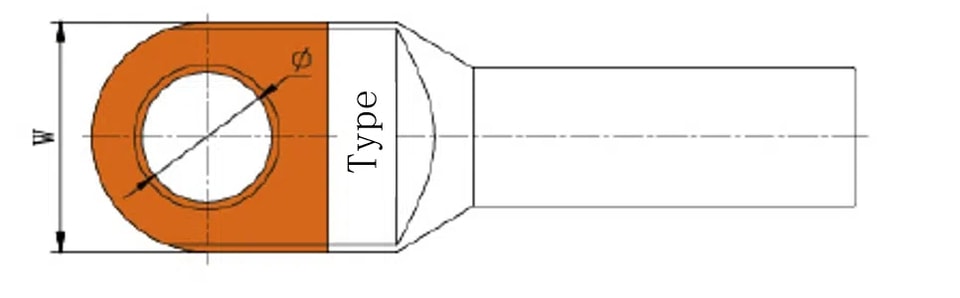

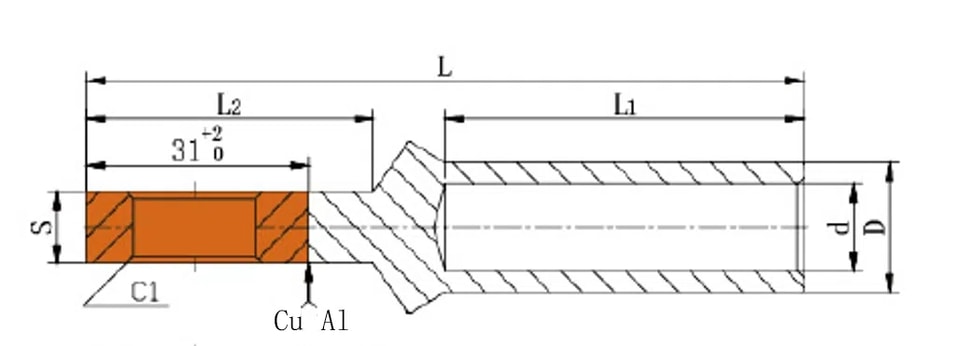

Dimensional Drawing:

Parameter:

Type	Φ	D	d	L1	L2	W	S	L
DTLO-25	17	12	7.0	50	40	30	10	100
DTLO-35	17	14	8.5	50	40	30	10	100
DTLO-50	17	16	9.7	50	40	30	10	100
DTLO-70	17	18	12.1	50	40	30	10	100
DTLO-95	17	21	13.2	50	40	30	10	100
DTLO-120	17	23	15.1	50	40	30	10	100
DTLO-150	17	25	16.2	50	40	30	10	100
DTLO-185	17	27	18.2	50	40	30	10	100
DTLO-240	17	30	20.2	50	40	30	10	100
DTLO-300	17	34	23.2	50	40	30	10	100
DTLO-400	17	38	26.2	50	40	30	10	100
DTLO-500	17	40	29.2	50	40	30	10	100
DTLO-630	17	47	34.0	50	40	30	10	105

Quick selection
