GPH 90° Copper lug
Application:
Used for connection of copper cable with copper end of electrical equipment in low voltage. From 16 to 400mm2
Material:
Cu≥99.9%
Surface:
Tin plated
Feature:
90 degrees - one hole lug with die code marking to assist installation work and inspection

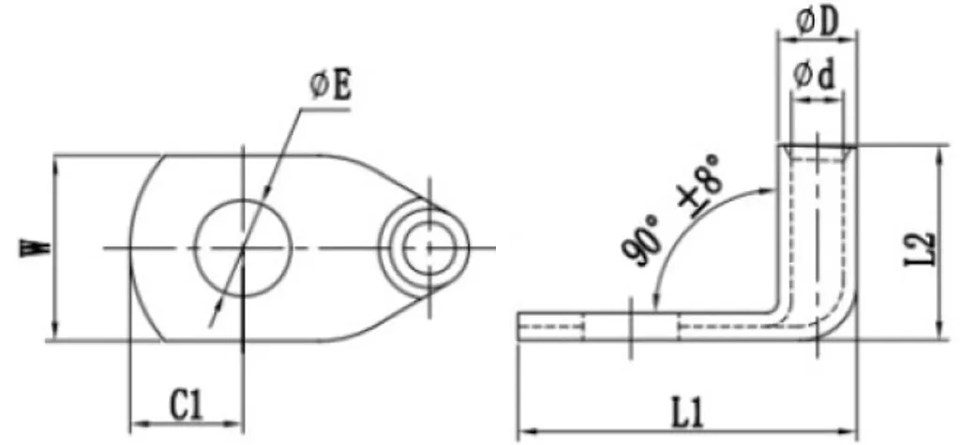

Dimensional Drawing:
Parameter
Type specification | ΦE | ΦD | Φd | W | L2 | L1 |
GPH90-16/6 | 6.4 | 8.5 | 5.5 | 14 | 20.0 | 24.0 |
GPH90-16/8 | 8.5 | 8.5 | 5.5 | 15 | 20.0 | 28.0. |
GPH90-25/6 | 6.4 | 10.0 | 6.9 | 15 | 21.0 | 27.5 |
GPH90-25/8 | 8.4 | 10.0 | 6.9 | 16 | 21.0 | 32.5 |
GPH90-25/10 | 10.5 | 10.0 | 6.9 | 18 | 21.0 | 32.5 |
GPH90-35/8 | 8.5 | 12.0 | 8.5 | 17 | 24.0 | 34.0 |
GPH90-35/10 | 10.5 | 12.0 | 8.5 | 20 | 24.0 | 34.0 |
GPH90-35/12 | 13.0 | 12.0 | 8.5 | 22 | 24.0 | 40.5 |
GPH90-50/8 | 8.4 | 14.0 | 10.0 | 20 | 28.5 | 40.5 |
GPH90-50/10 | 10.5 | 14.0 | 10.0 | 20 | 28.5 | 40.5 |
GPH90-50/12 | 13.0 | 14.0 | 10.0 | 23 | 28.5 | 42.5 |
GPH90-70/8 | 8.5 | 16.5 | 12.0 | 24 | 31.0 | 43.0 |
GPH90-70/10 | 10.5 | 16.5 | 12.0 | 24 | 31.0 | 43.0 |
GPH90-70/12 | 13.0 | 16.5 | 12.0 | 24 | 31.0 | 44.5 |
GPH90-95/10 | 10.5 | 18.0 | 13.5 | 26 | 35.0 | 44.5 |
GPH90-95/12 | 13.0 | 18.0 | 13.5 | 26 | 35.0 | 46.5 |
GPH90-95/16 | 17.0 | 18.0 | 13.5 | 28 | 35.0 | 52.0 |
GPH90-120/10 | 10.5 | 19.5 | 15.0 | 29 | 35.5 | 49.0 |
GPH90-120/12 | 13.0 | 19.5 | 15.0 | 29 | 35.5 | 49.0 |
GPH90-120/16 | 17.0 | 19.5 | 15.0 | 29 | 35.5 | 55.0 |
GPH90-150/10 | 10.5 | 21.0 | 16.5 | 31 | 40.0 | 48.0 |
GPH90-150/12 | 13.0 | 21.0 | 16.5 | 31 | 40.0 | 51.0 |
GPH90-150/16 | 17.0 | 21.0 | 16.5 | 31 | 40.0 | 56.0 |
GPH90-185/12 | 13.0 | 24.0 | 19.0 | 35 | 46.0 | 58.5 |
GPH90-185/16 | 17.0 | 24.0 | 19.0 | 35 | 46.0 | 58.5 |
GPH90-185/20 | 21.0 | 24.0 | 19.0 | 35 | 46.0 | 65.0 |
GPH90-240/16 | 17.0 | 26.0 | 21.0 | 40 | 50.0 | 60.0 |
GPH90-240/20 | 21.0 | 26.0 | 21.0 | 40 | 50.0 | 67.8 |
GPH90-300/16 | 17.0 | 29.5 | 23.5 | 43 | 59.0 | 64.0 |
GPH90-300/20 | 21.0 | 29.5 | 23.5 | 43 | 59.0 | 70.5 |
GPH90-400/12 | 13.0 | 34.0 | 27.0 | 49 | 62.0 | 79.0 |
