GTD-S Dual hole bimetallic lug
Material:
CU ≥ 99.9%, AL ≥ 99.5%
Features :
The barrels are chemically treated to reduce contact resistance and corrosion refilled with jointing compound.
Friction welded.
Product Description

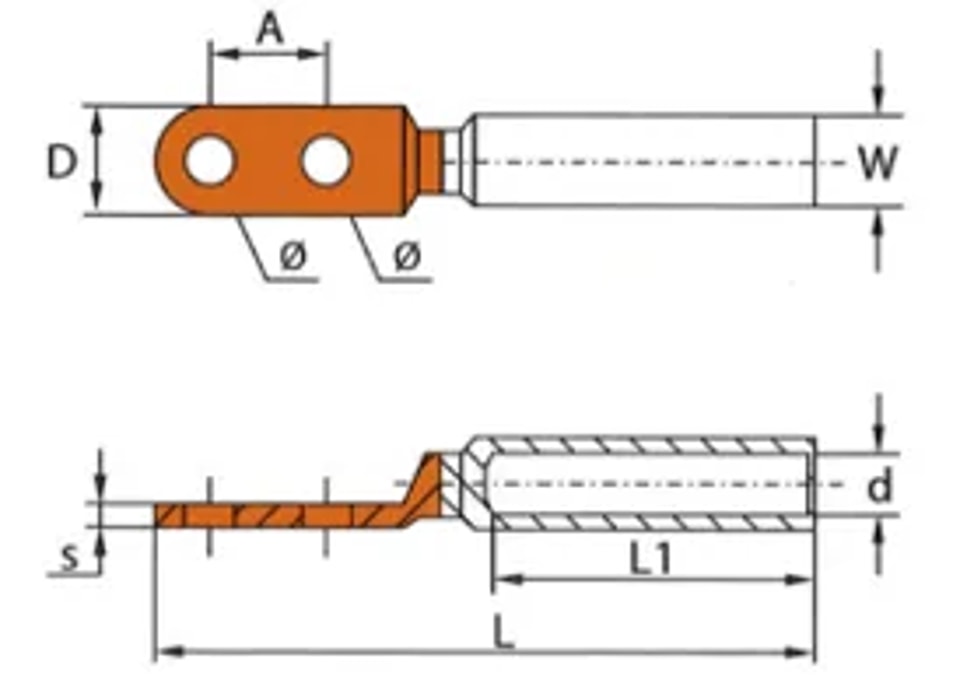

Dimensional Drawing:
Parameter
Type specification | Cable spec (mm²) | Φ | A | D | d | L | L1 | W | S |
GTD-16S | 16 | 8.5 | 20 | 12 | 6.0 | 90 | 32 | 18 | 3.0 |
GTD-25S | 25 | 8.5 | 20 | 12 | 7.0 | 95 | 35 | 18 | 3.0 |
GTD-35S | 35 | 10.5 | 25 | 14 | 8.5 | 110 | 40 | 23 | 3.5 |
GTD-50S | 50 | 10.5 | 25 | 16 | 10.0 | 115 | 43 | 23 | 3.5 |
GTD-70S | 70 | 12.5 | 30 | 18 | 11.5 | 125 | 45 | 26 | 4.0 |
GTD-95S | 95 | 12.5 | 30 | 21 | 13.5 | 138 | 50 | 28 | 4.8 |
GTD-120S | 120 | 12.5 | 30 | 23 | 15.0 | 150 | 55 | 30 | 5.5 |
GTD-150S | 150 | 14.5 | 35 | 25 | 16.5 | 165 | 58 | 34 | 6.0 |
GTD-185S | 185 | 14.5 | 35 | 27 | 18.5 | 170 | 58 | 34 | 6.0 |
GTD-240S | 240 | 14.5 | 35 | 30 | 21.0 | 190 | 62 | 40 | 6.5 |
GTD-300S | 300 | 14.5 | 35 | 34 | 23.5 | 200 | 70 | 40 | 7.0 |
GTD-400S | 400 | 16.5 | 45 | 38 | 26.0 | 210 | 75 | 45 | 8.0 |
