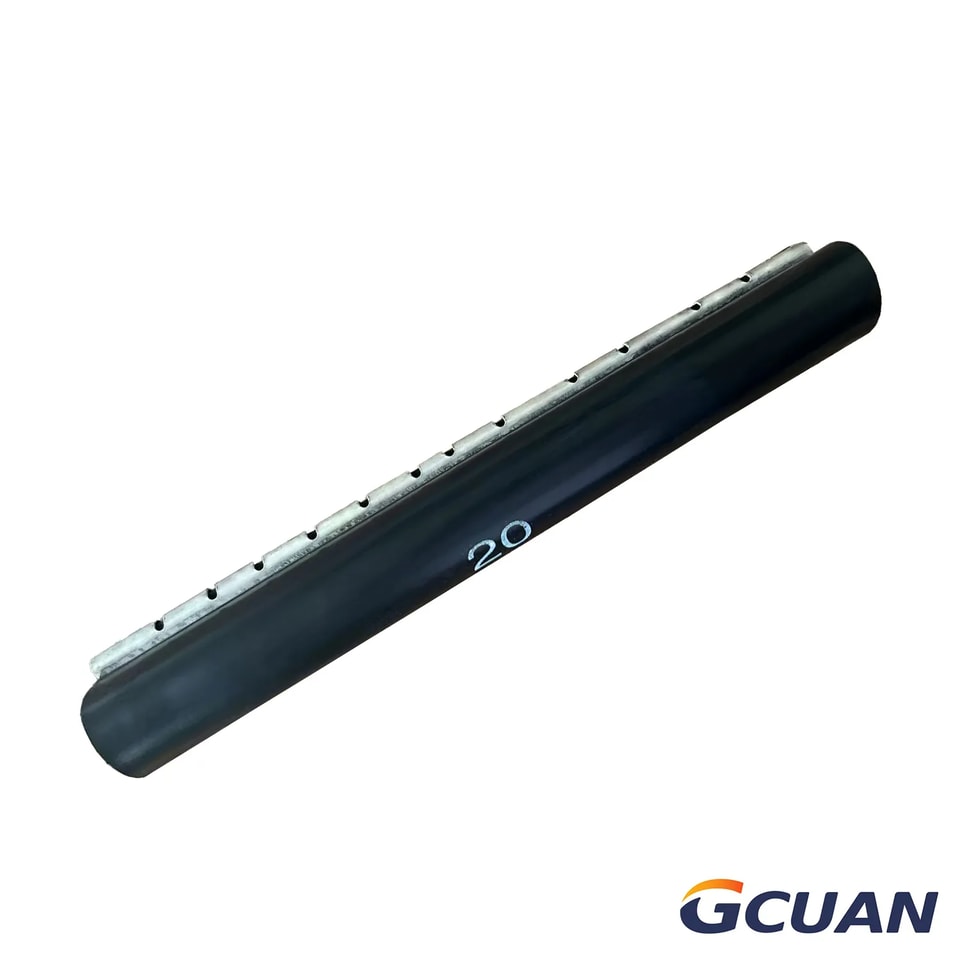

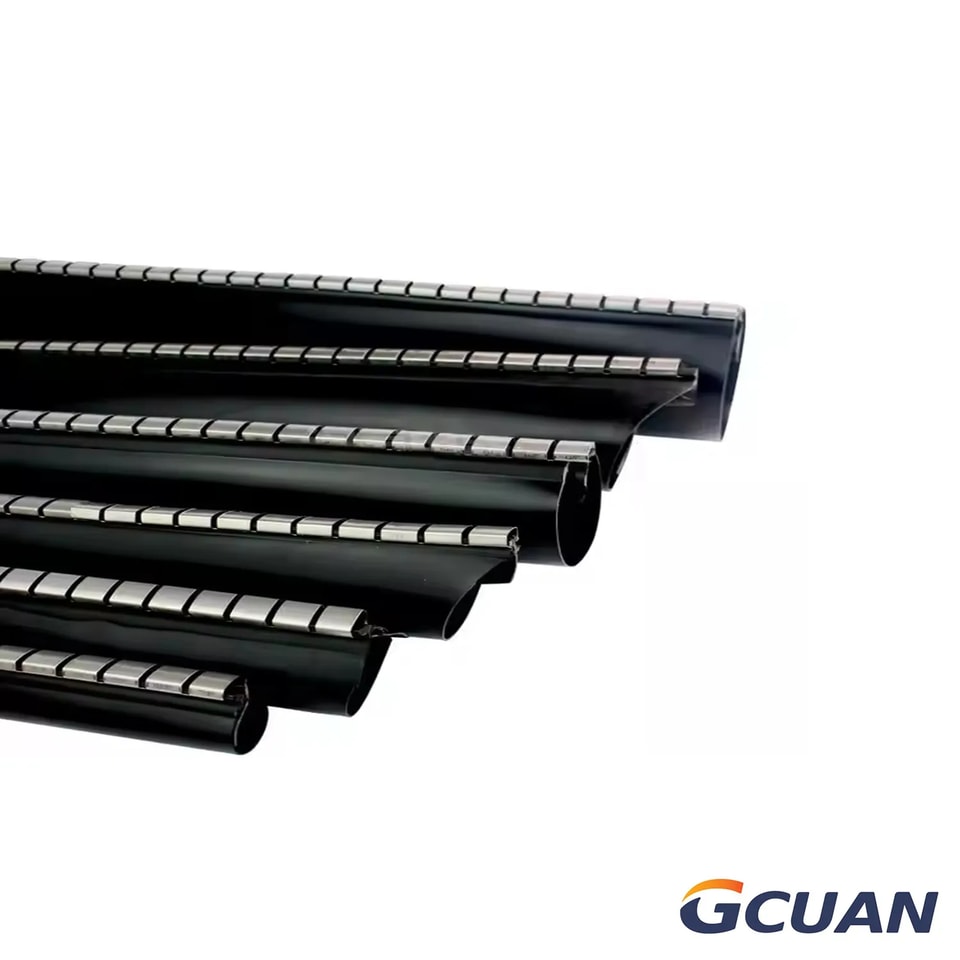

Heat Shrink Cable Repair Sleeve
Application:
Heat Shrink Cable Repair Sleeve, also known as cable wrap, zipper-type heat shrink tubing, or heat shrinkable cable joint outer sleeve, is made of polyolefin material with an inner layer of hot-melt adhesive. It is used for quick repair of damaged cable outer sheaths, providing fast and permanent insulation, sealing, and protection for power cables. It features easy installation, a wide range of size options, and excellent tensile strength, abrasion resistance, and corrosion resistance.
Features:
· Shrink Ratio: 3:1
· Polyolefin material with inner hot-melt adhesive for secure sealing.
· Fast installation with durable protection against abrasion and corrosion.
· Shrink temperature : starts at 90°C and fully recovers at 130°C.
Parameter:
| Size | Width(H) （mm) | Wall Thickness(T) （mm) | Standard Length /mm | ||
| As Supplied | After Recovered | As Supplied | After Recovered | ||
| Φ30 | 120 | 37 | 1.0±0.3 | 3.8±0.4 | 900 |
| Φ40 | 130 | 37 | 1.0±0.3 | 3.8±0.4 | 900 |
| Φ50 | 160 | 52 | 1.0±0.3 | 3.8±0.4 | 900 |
| Φ65 | 205 | 74 | 1.0±0.3 | 3.8±0.4 | 900 |
| Φ70 | 220 | 74 | 1.0±0.3 | 3.8±0.4 | 900 |
| Φ85 | 270 | 85 | 1.1±0.3 | 3.8±0.4 | 900 |
| Φ100 | 320 | 85 | 1.1±0.3 | 3.8±0.4 | 900 |
| Φ120 | 380 | 125 | 1.1±0.3 | 3.8±0.4 | 900 |
| Φ150 | 475 | 155 | 1.1±0.3 | 3.8±0.4 | 900 |
| Φ160 | 505 | 155 | 1.1±0.3 | 3.8±0.4 | 900 |
| Φ195 | 590 | 155 | 1.0±0.3 | 3.8±0.4 | 900 |
