LYF 90° Copper lug
Application:
Used for connection of copper cable with copper end of electrical equipment in low voltage. From 10 to 185mm2
Material:
Cu≥99.9%
Surface:
Tin plated
Feature:
90 degrees - one hole lug with die code marking to assist installation work and inspection

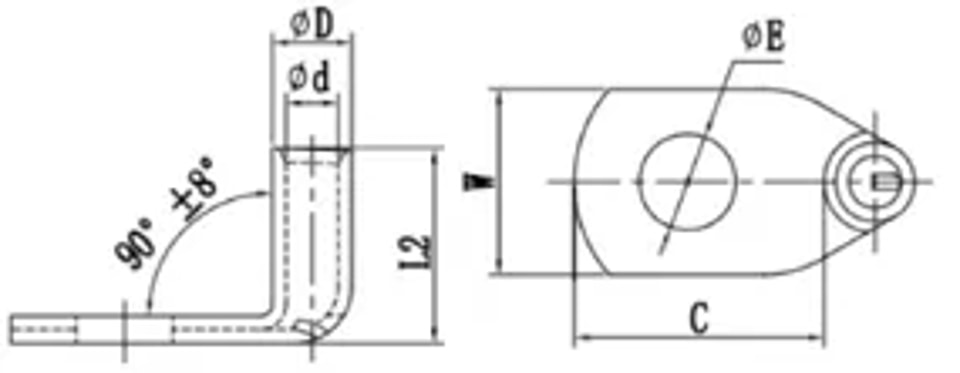

Dimensional Drawing:
Parameter
Type specification | ΦE | ΦD | Φd | W | L2 | C |
LYF90-10/6 | 6.5 | 8.0 | 5 | 13.0 | 18.0 | 18.0 |
LYF90-10/8 | 8.4 | 8.0 | 5 | 13.5 | 18.0 | 20.5 |
LYF90-16/6 | 6.5 | 9.0 | 6 | 13.0 | 20.0 | 18.0 |
LYF90-16/8 | 8.4 | 9.0 | 6 | 13.5 | 20.0 | 20.5 |
LYF90-25/6 | 6.5 | 11.0 | 8 | 16.0 | 21.5 | 18.0 |
LYF90-25/8 | 8.4 | 11.0 | 8 | 16.0 | 21.5 | 20.5 |
LYF90-25/10 | 10.5 | 11.0 | 8 | 17.0 | 21.5 | 25.0 |
LYF90-35/6 | 6.5 | 13.0 | 9 | 18.0 | 26.5 | 18.0 |
LYF90-35/8 | 8.4 | 12.0 | 8.5 | 17.0 | 26.0 | 20.5 |
LYF90-35/10 | 10.5 | 13.0 | 9 | 18.0 | 26.5 | 25.0 |
LYF90-50/6 | 6.5 | 14.5 | 11 | 21.0 | 34.0 | 26.0 |
LYF90-50/8 | 8.4 | 14.5 | 11 | 21.0 | 34.0 | 26.0 |
LYF90-50/10 | 10.5 | 14.5 | 11 | 21.0 | 34.0 | 30.0 |
LYF90-50/12 | 13.0 | 14.5 | 11 | 21.0 | 34.0 | 32.0 |
LYF90-70/6 | 6.5 | 16.5 | 12 | 24.0 | 35.9 | 26.0 |
LYF90-70/8 | 8.4 | 16.5 | 12 | 24.0 | 35.9 | 26.0 |
LYF90-70/10 | 10.5 | 16.5 | 12 | 24.0 | 35.9 | 30.0 |
LYF90-70/12 | 13.0 | 16.5 | 12 | 24.0 | 35.9 | 32.0 |
LYF90-95/8 | 8.4 | 20.0 | 15 | 29.0 | 37.5 | 26.0 |
LYF90-95/10 | 10.5 | 20.0 | 15 | 29.0 | 37.5 | 30.0 |
LYF90-95/12 | 13.0 | 20.0 | 15 | 29.0 | 37.5 | 32.0 |
LYF90-95/16 | 17.0 | 20.0 | 15 | 29.0 | 37.5 | 36.0 |
LYF90-120/10 | 10.5 | 22.0 | 17 | 32.0 | 39.5 | 30.0 |
LYF90-120/12 | 13.0 | 22.0 | 17 | 32.0 | 39.5 | 32.0 |
LYF90-120/16 | 17.0 | 22.0 | 17 | 32.0 | 39.5 | 36.0 |
LYF90-185/12 | 13.0 | 27.0 | 21 | 38.5 | 41.0 | 31.0 |
LYF90-185/16 | 17.0 | 27.0 | 21 | 38.5 | 41.0 | 31.0 |
