SG Copper lug

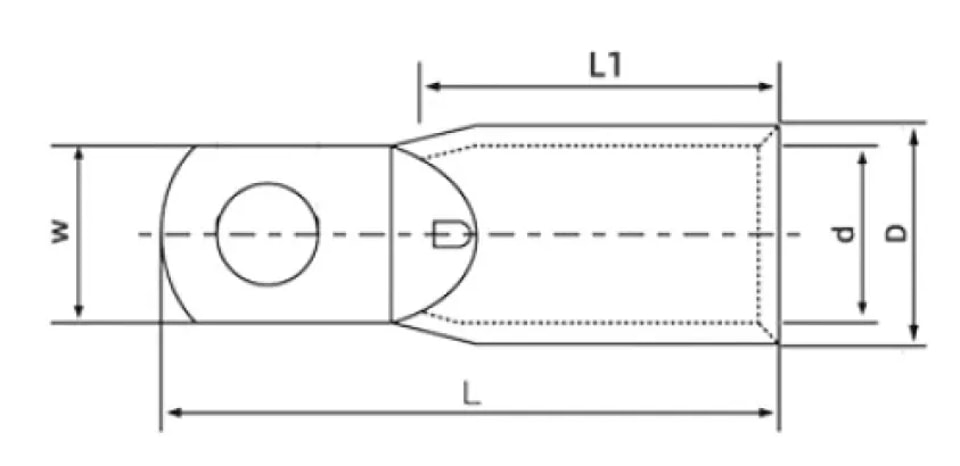

Type specification

Screw hole

Plate width (W)

Total length (L)

Pipe Length (L1)

Pipe outer diameter  (D)

Pipe inner diameter  (d)

Plate

thickness  (T)

SG50-6

6.31

15.5

49.25

23.55

13.68

9.67

4.48

SG50-8

8.39

15.75

49.26

24.27

13.9

9.85

4.41

SG50-10

10.54

15.8

49.99

24

13.97

9.9

4.37

SG70-6

6.29

17.64

54.99

28.98

16.74

11.96

5.67

SG70-8

8.49

18.13

54.85

28.87

16.87

12.02

5.42

SG70-10

10.63

17.93

54.68

29.15

16.76

12.2

5.45

SG70-12

10.26

17.97

54.86

28.91

16.77

11.75

5.49

SG95-6

6.29

18.6

59.01

32.26

17.76

13.83

4.95

SG95-8

8.39

18.64

58.98

31.61

17.91

13.75

4.94

SG95-10

10.49

18.95

59.78

31.59

17.9

13.95

4.78

SG95-12

12.23

18.7

58.27

31.85

17.76

13.8

4.85

SG120-6

6.29

20.6

64.14

35.93

19.44

15.54

4.75

SG120-8

8.5

20.9

64.43

37.11

19.86

15.81

5.04

SG120-10

10.46

20.92

65.17

36.9

19.85

15.83

4.84

SG120-12

12.29

20.84

64.42

36.22

19.54

15.61

4.61
