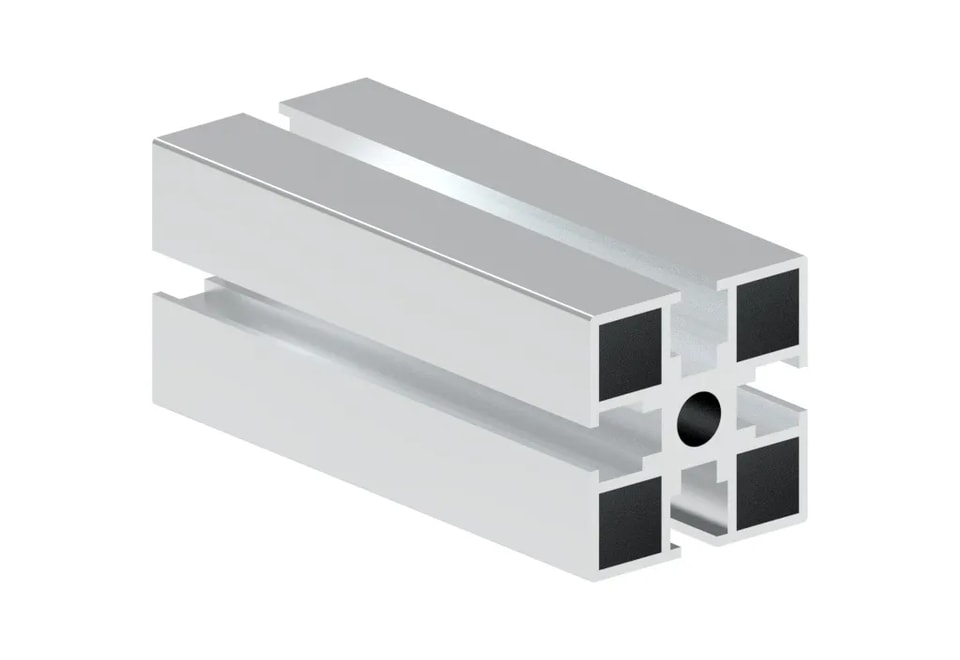

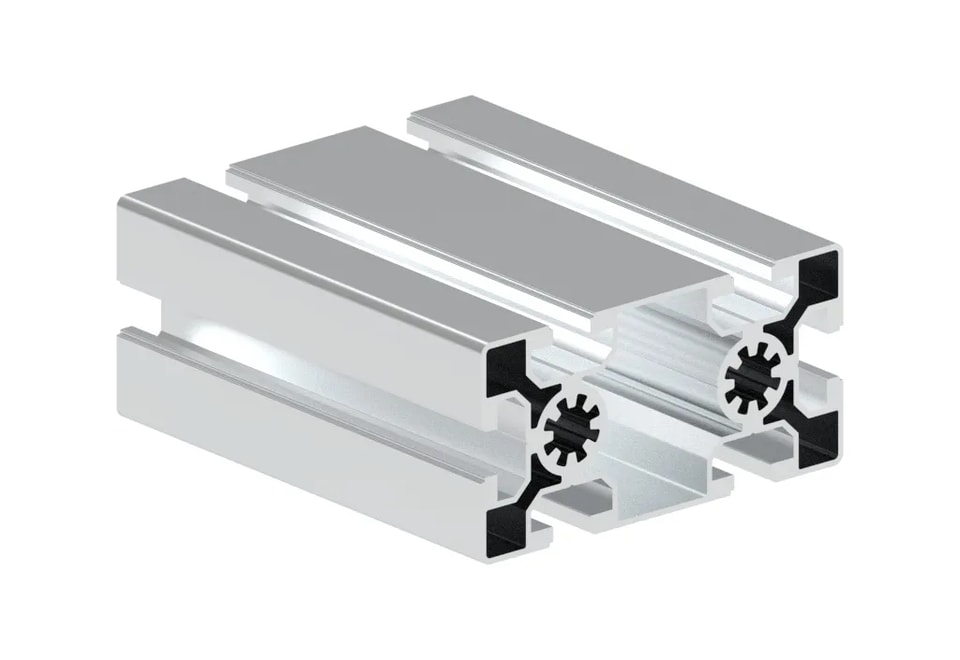

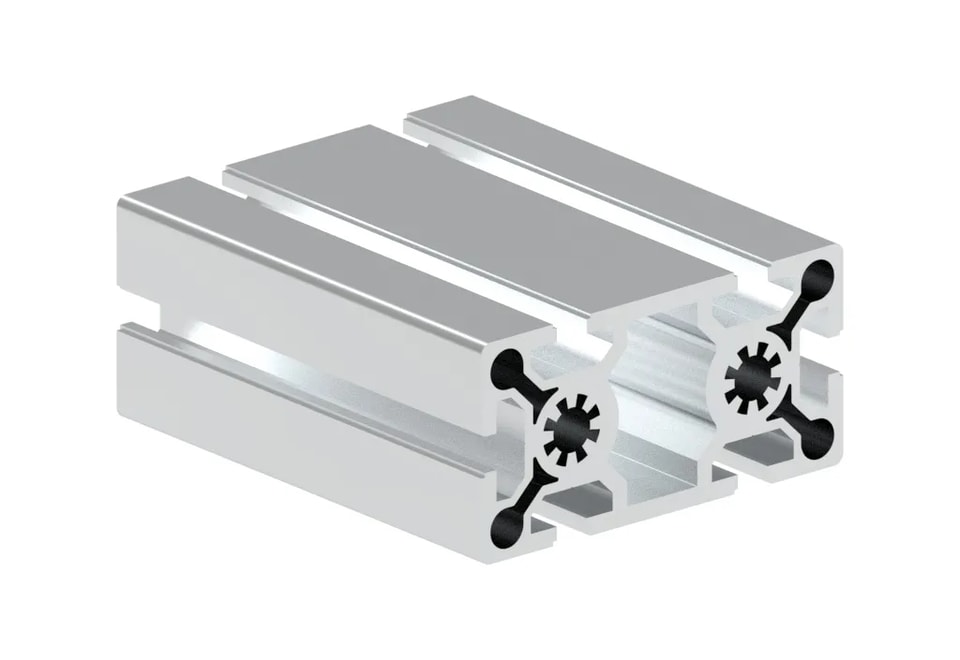

50 Series
50 Series means the section height is 50mm, Guchuan offers sectional dimension 50*50 and 50*100.
REQUEST A QUOTEProduct Description

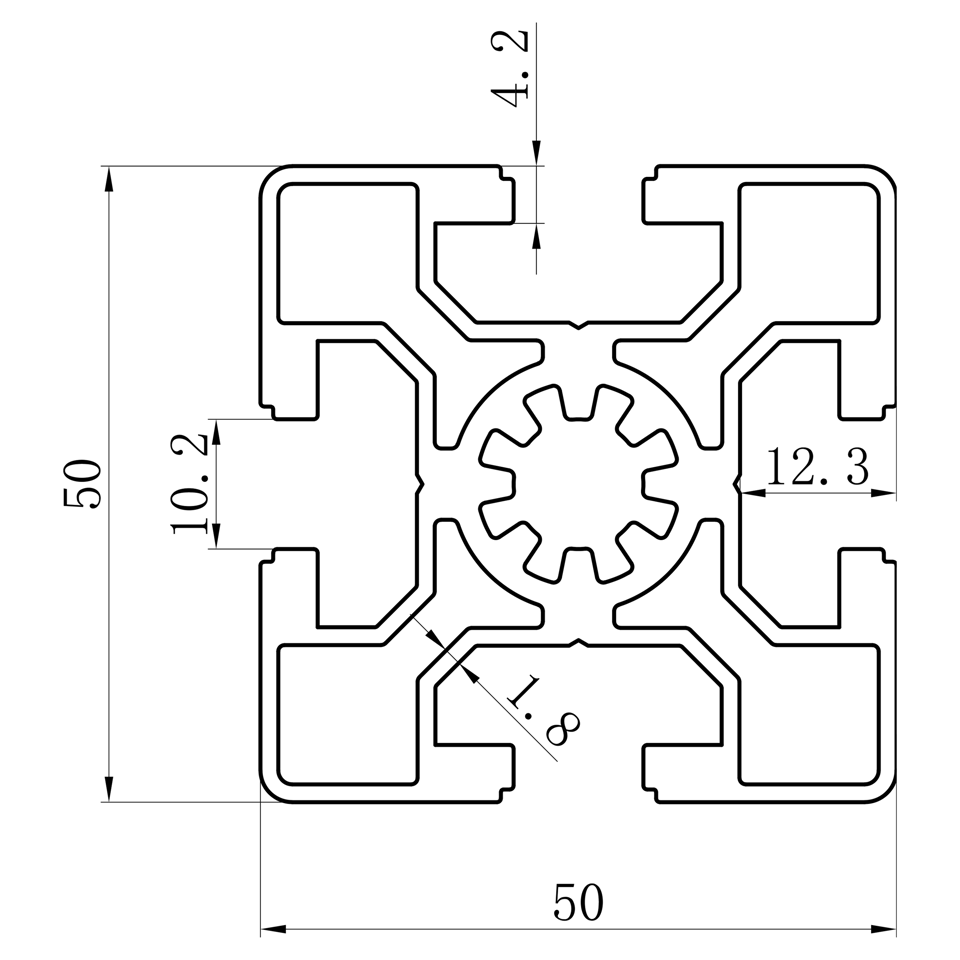

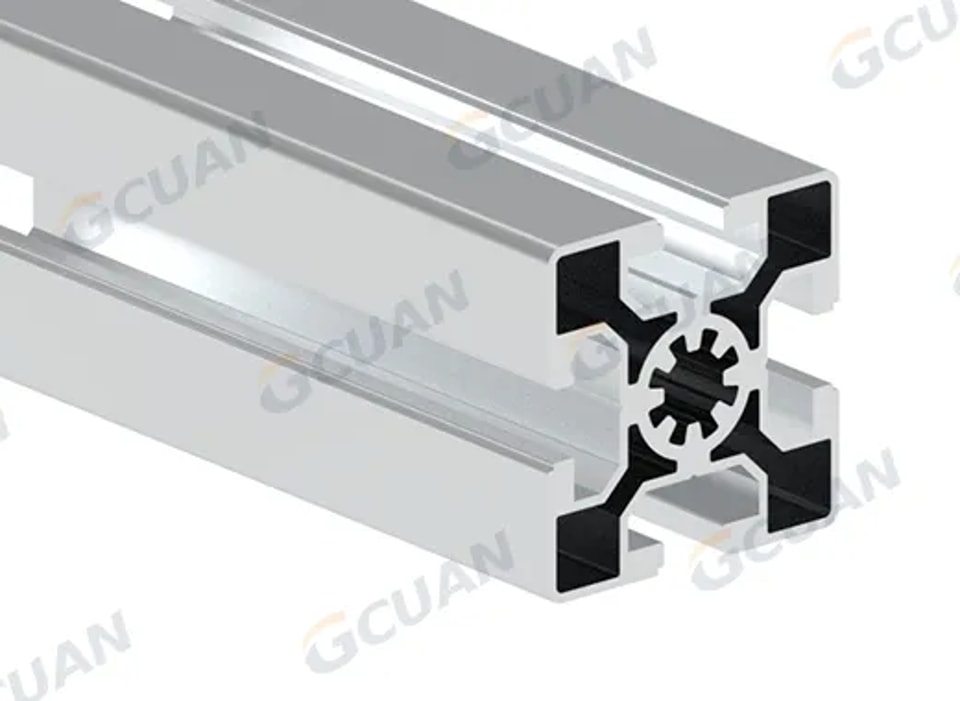

GCB-8-5050A
Material:
Aluminum(6063-T5)
Weight:
3.55kg/m
Length:
6.02m
Mass of inertia:
Ix:25.80cm⁴ ly:25.80cm⁴
Section Modulus:
Zx:10.30cm³ Zy:10.30cm³

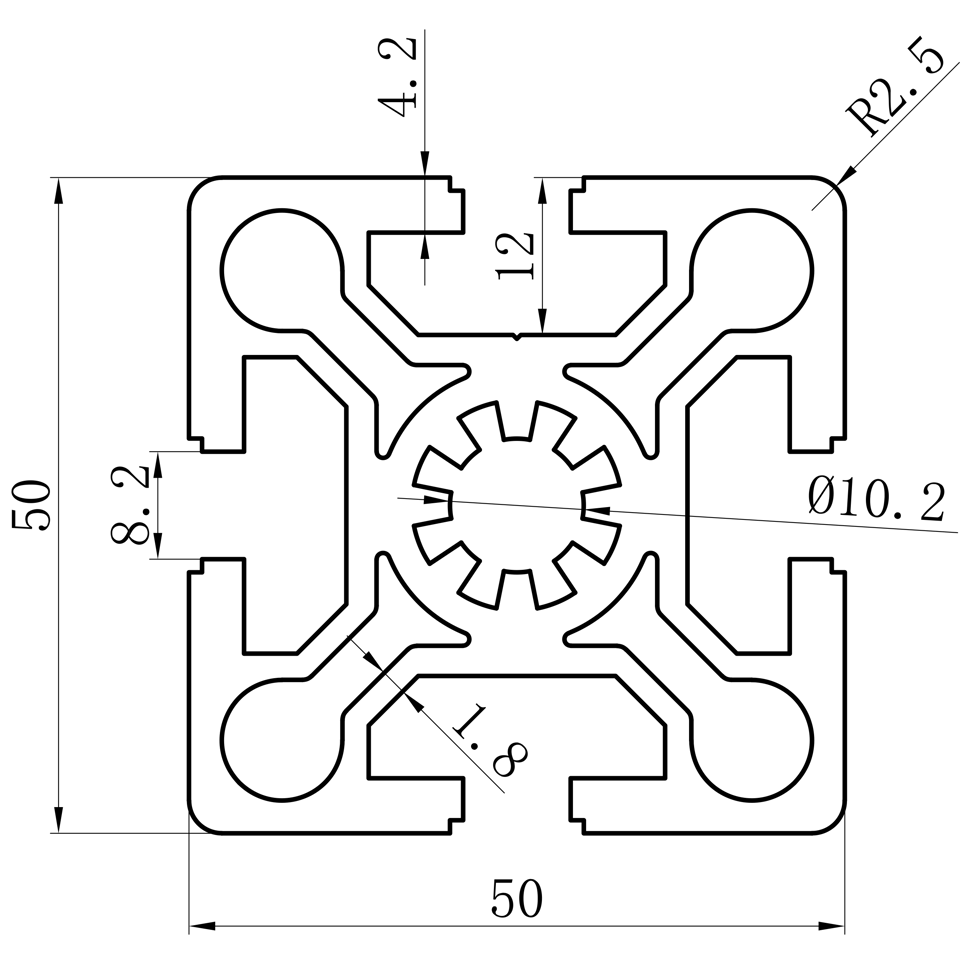

GCB-10-5050B
Material:
Aluminum(6063-T5)
Weight:
2.91kg/m
Length:
6.02m
Mass of inertia:
Ix:48.6cm⁴ ly:20.2cm⁴
Section Modulus:
Zx:14.6cm³ Zy:7.3cm³

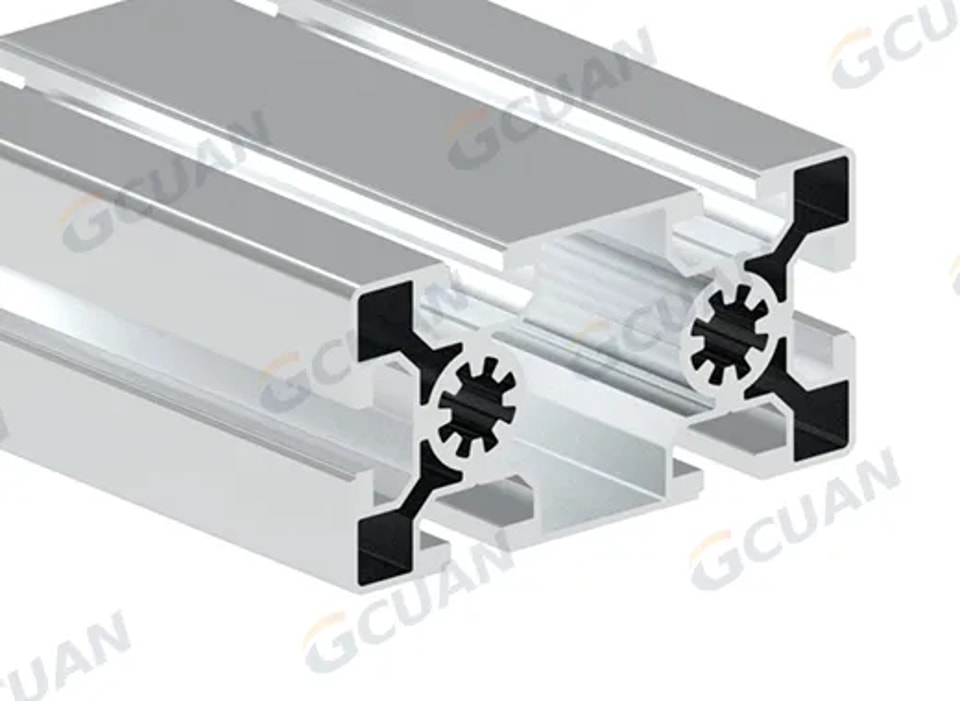

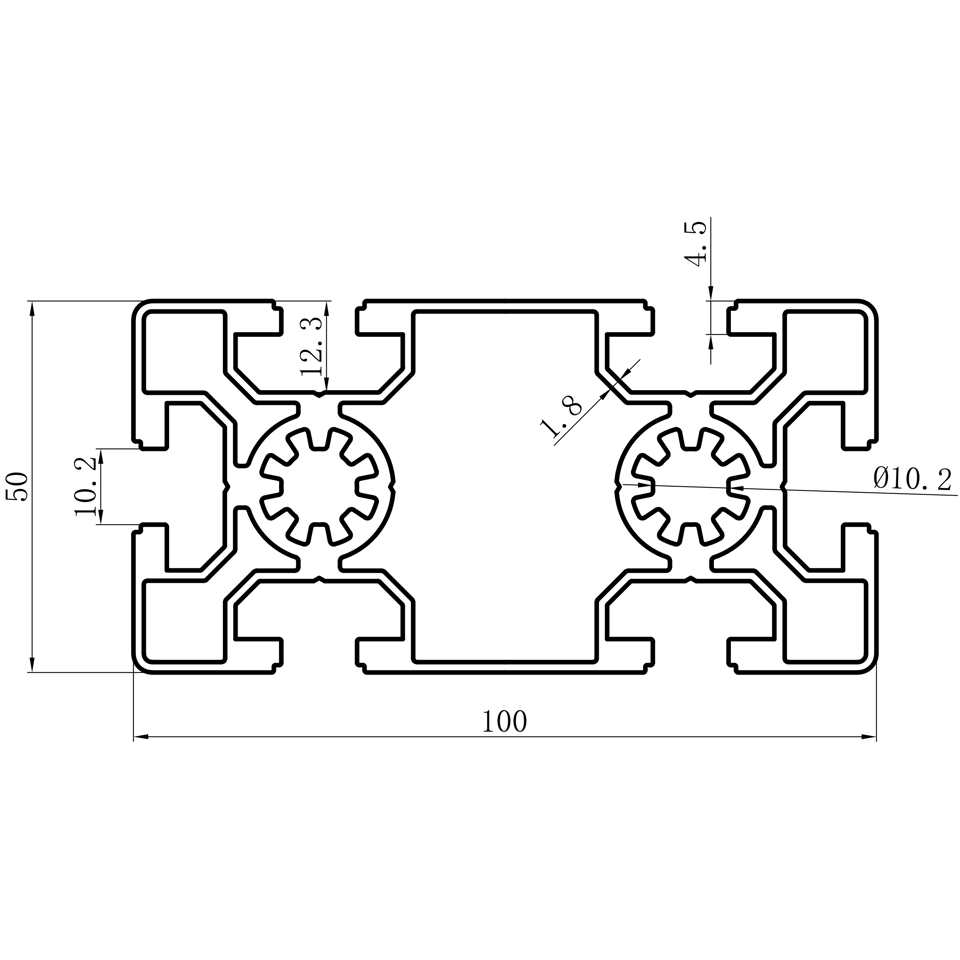

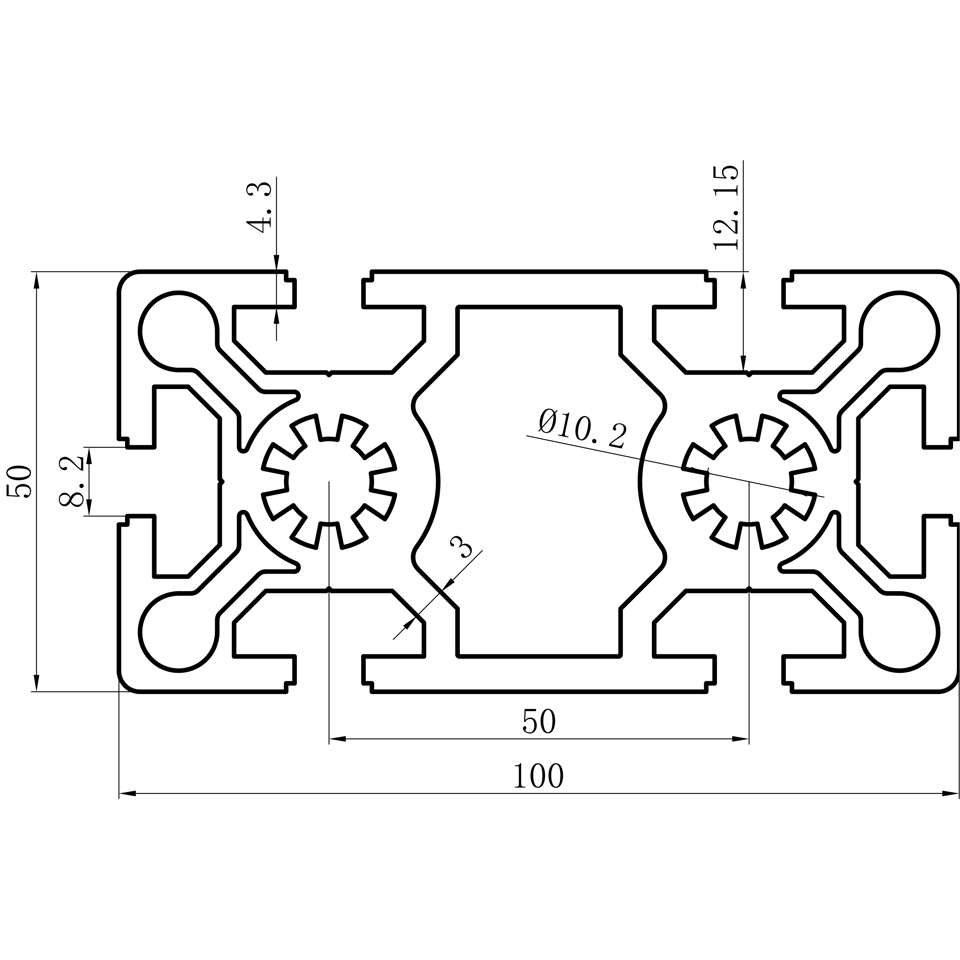

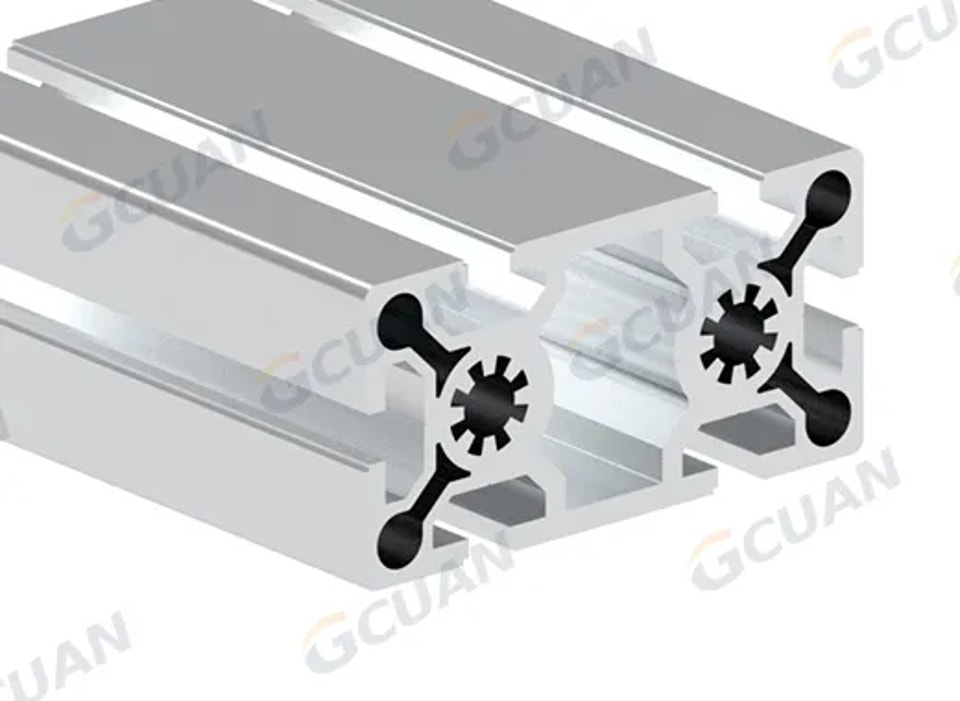

GCB-8-50100A
Material:
Aluminum(6063-T5)
Weight:
6.2kg/m
Length:
6.02m
Mass of inertia:
Ix:163.65cm⁴ ly:44.91cm⁴
Section Modulus:
Zx:32.75cm³ Zy:17.03cm³
GCB-10-50100B
Material:
Aluminum(6063-T5)
Weight:
4.8kg/m
Length:
6.02m
Mass of inertia:
Ix:165.15cm⁴ ly:46.21cm⁴
Section Modulus:
Zx:34.15cm³ Zy:18.23cm³

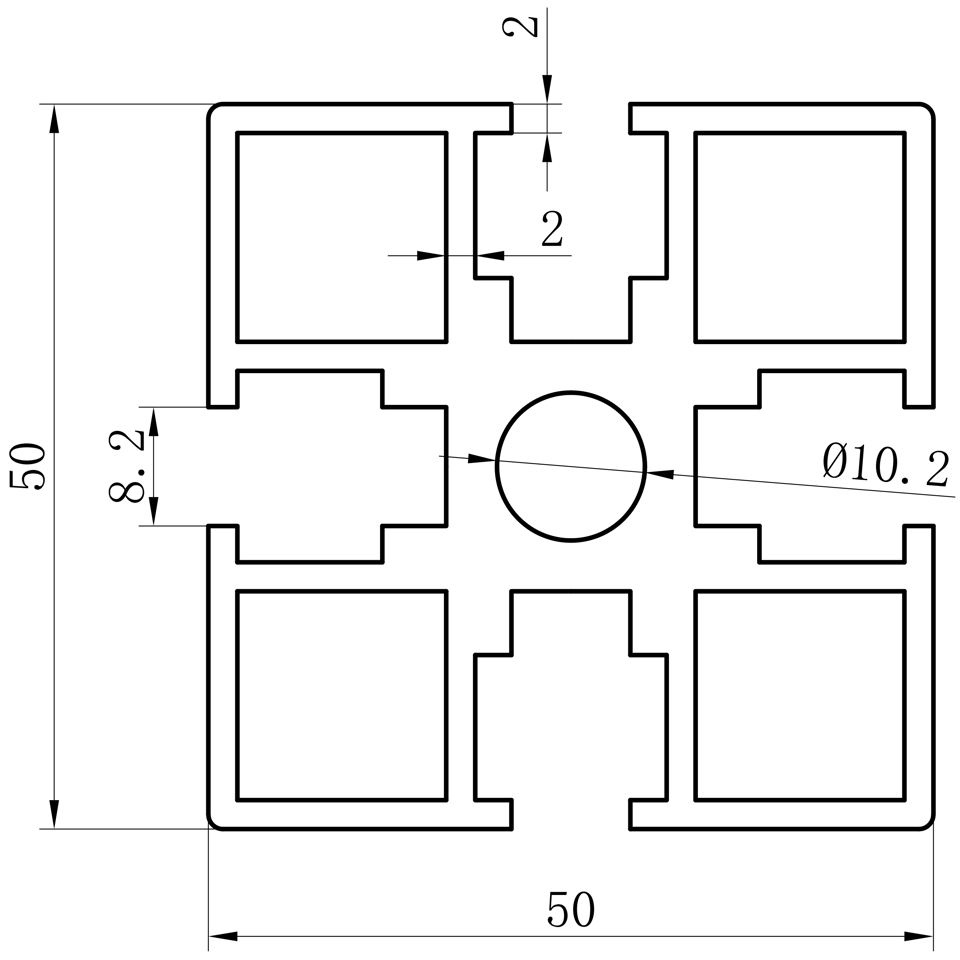

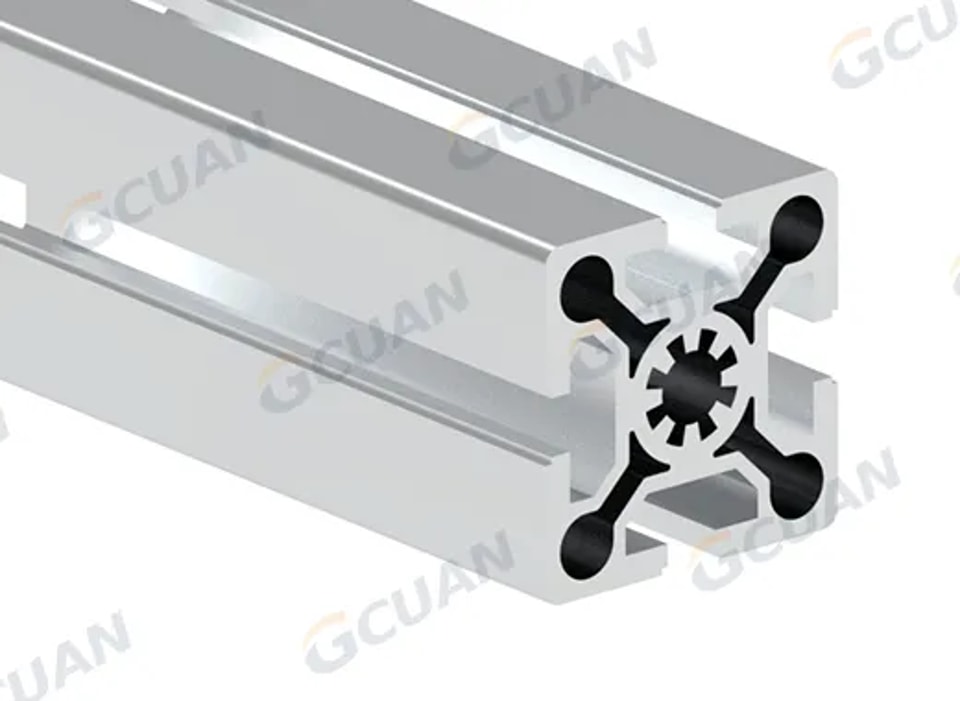

GCB-8-5050G
Material:
Aluminum(6063-T5)
Weight:
2.795kg/m
Length:
6.02m
Mass of inertia:
Ix:17.34cm⁴ ly:17.34cm⁴
Section Modulus:
Zx:6.936cm³ Zy:6.936cm³
