10kV Distribution Line Grounding Connectors

Application:

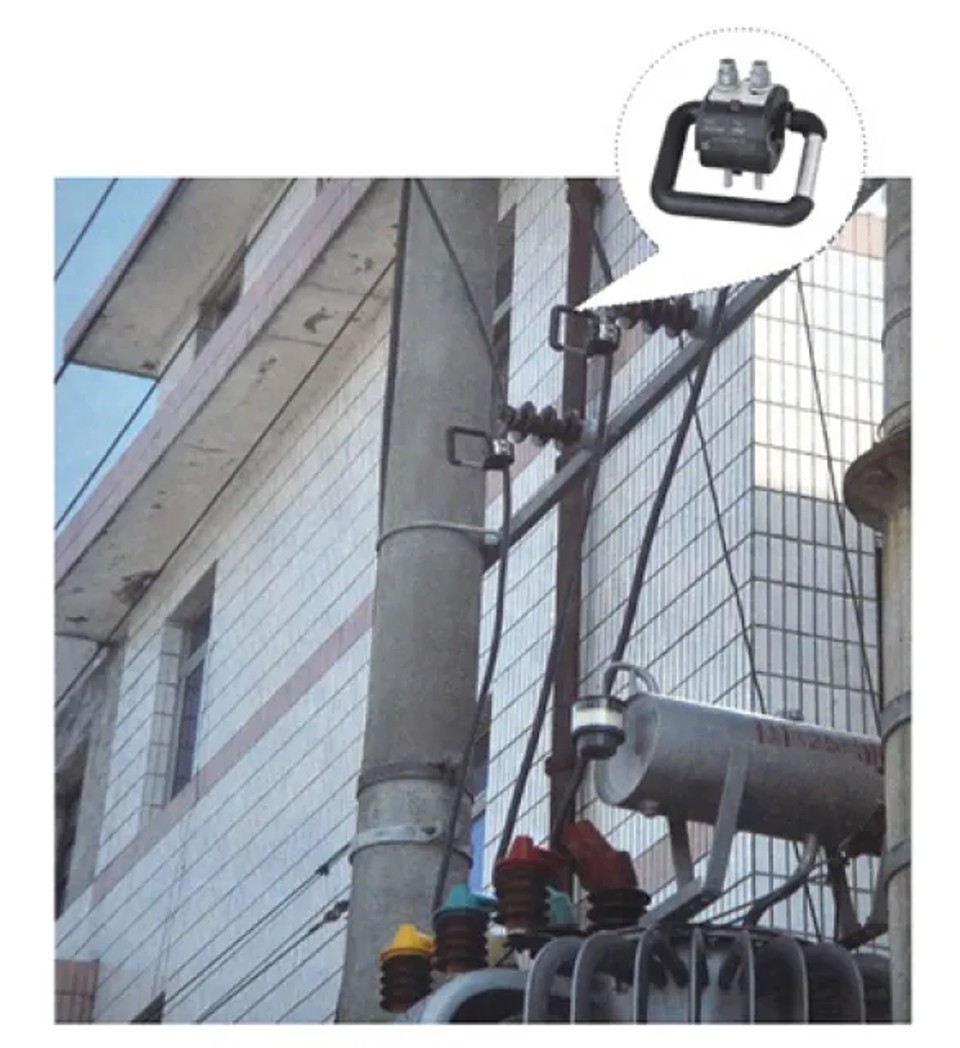

Applicable to earthing protection for 10kV distribution line.

Request a Quote

Product Description

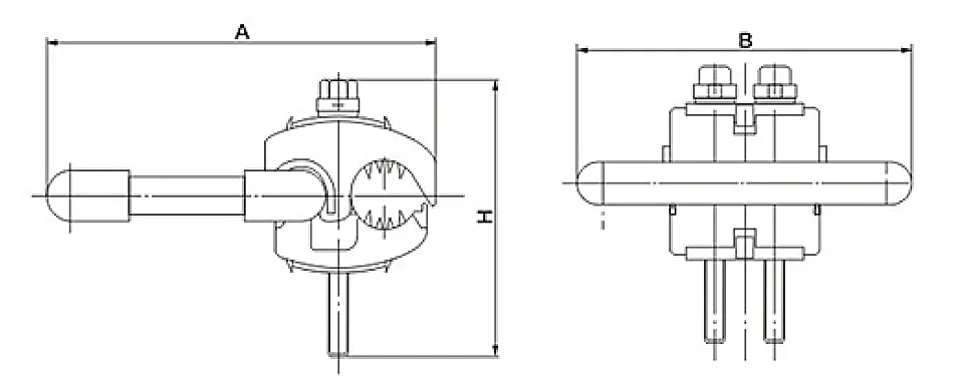

Dimensional Drawing

Parameter

Type	Suitable wire (mm²)	Dimensions (mm)			Normal Current (A)	Bolt Quantity (pcs)	Piercing Depth (mm)
Type	Suitable wire (mm²)	A	B	H	Normal Current (A)	Bolt Quantity (pcs)	Piercing Depth (mm)

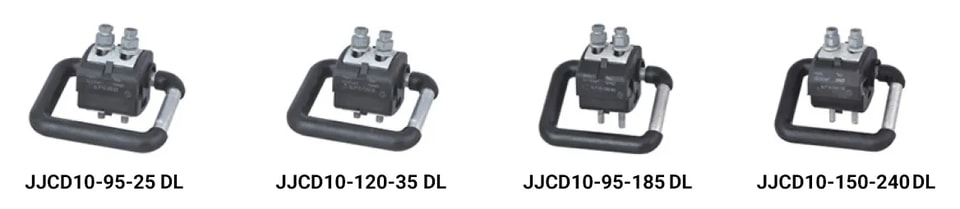

JJCD10-95-25DL	25-95	148.5	140	98	257	2	4-5
JJCD10-120-35DL	35-120	154	138	110	276	2	3-4
JJCD10-95-185DL	95-185	152	140	113	476	2	4-5
JJCD10-150-240DL	150-240	160	140	113	476	2	4-5
