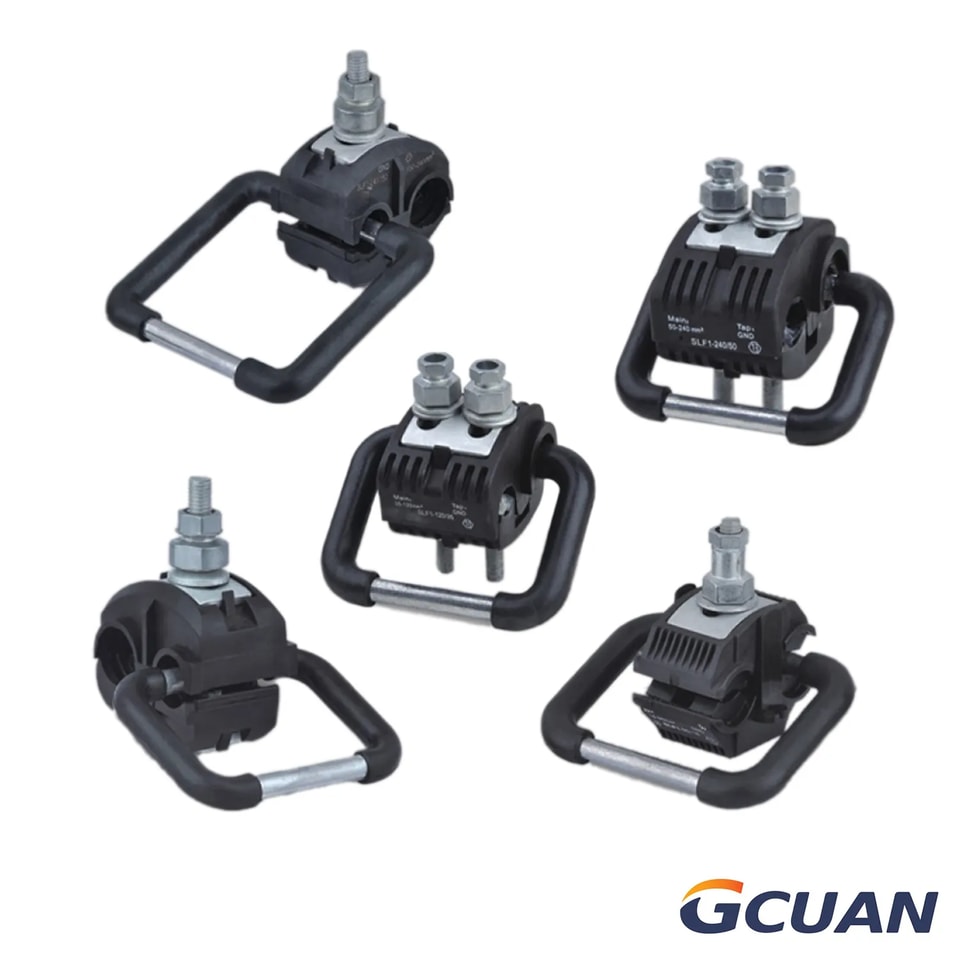

JJCD1 1kV Insulated Piercing Grounding Connector

Application:

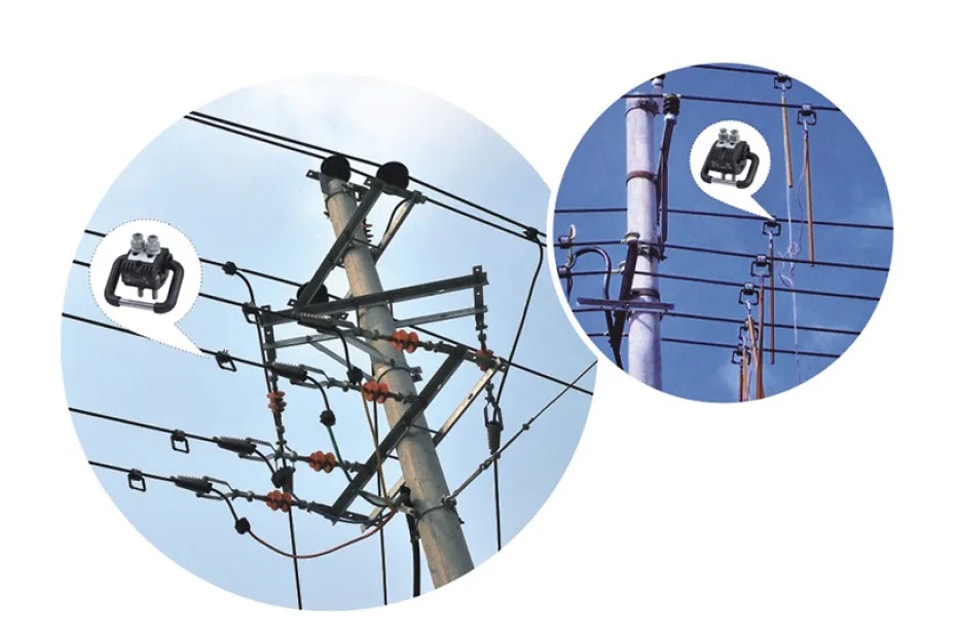

It is suitable for 1kv overhead insulated wire grounding protection and temporary electrical inspection.

Request a Quote

Product Description

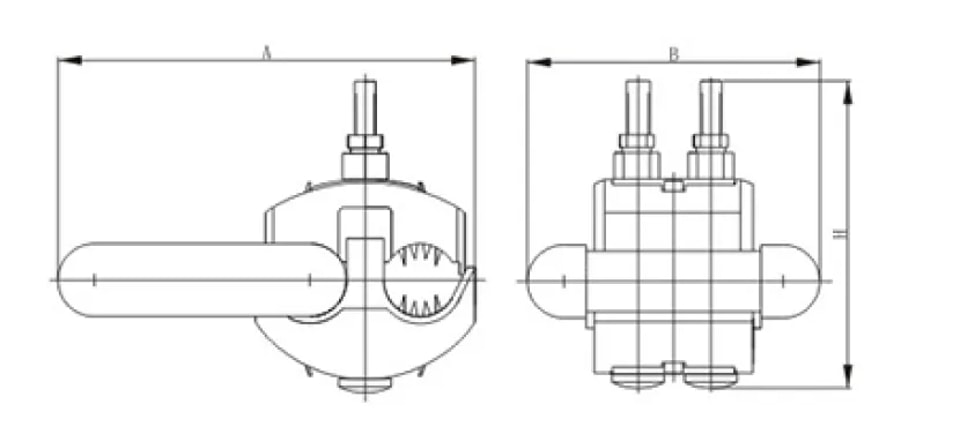

Dimensional Drawing

Parameter

Type	Suitable wire (mm²)	Dimensions (mm)			Normal Current (A)	Bolt Quantity (pcs)	Piercing Depth (mm)
Type	Suitable wire (mm²)	A	B	H	Normal Current (A)	Bolt Quantity (pcs)	Piercing Depth (mm)

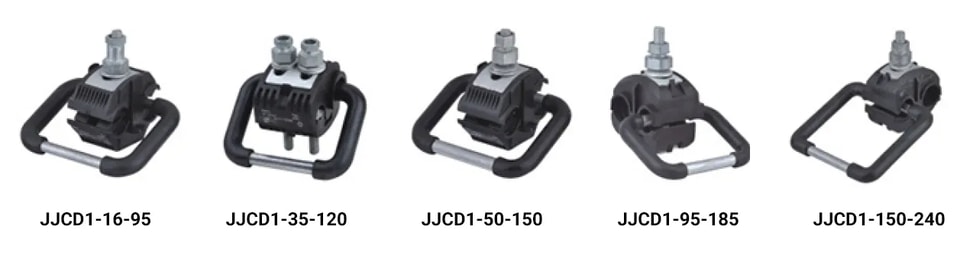

JJCD1-16-95	16-95	120	103	80	214	1	3-4
JJCD1-35-120	35-120	120	103	80	316	2	3-4
JJCD1-50-150	50-150	120	103	80	316	1	3-4
JJCD1-95-185	95-185	125	103	110	276	1	3-4
JJCD1-150-240	150-240	125	103	110	276	1	3-4

Related Products

JJC Fire-retardant IPC

  Four Major Functional Advantages   1. High-strength Insulating/Flame-retardant Shell The body of the piercing connector is made of an insulating and flame-retardant material that can withstand high temperatures, has strong insulation properties, and is resistant to mechanical and climatic changes. 2. Low Resistance/Low Temperature Rise It has a small contact resistance and a low temperature rise of the wire connector: The specially designed torque bolt ensures a constant piercing pressure, enabling the wire connector to achieve good electrical contact with the wire without excessively damaging the wire, thus guaranteeing the normal service life of the overhead insulated wire. 3. Convenient Installation Design During installation, there is no need to strip the insulating layer of the wire. Simply place the main wire and branch wire in the wire connector at the specified positions, and then evenly tighten and break off the torque nut with a socket wrench. 4. Sealed Structure with High Insulation The inside of the wire connector is filled with insulating and heat-conducting grease. After installation, the entire conductor forms a fully enclosed structure, which improves the insulation strength and safety.

JJC Insulated Piercing Connector

  Application: Used for low voltage aerial cables, These connectors are used to establish connections between bare cable and insulated aluminum cable or insulated copper cable.   Material: Body is molded from high strength and weather resistant material.   Structure feature: ·Puncture structure, torque nut, to ensure the puncture pressure, and it's easy to fix. ·Pressurized structure, corrosion protection, and have a longevity of service. ·Contact resistance is small, and the temperature of cord grip is low. ·Connected with different pathway lead, and it's useful. ·Insulating property is wonderful

10kV Distribution Line Grounding Connectors

  Application: Applicable to earthing protection for 10kV distribution line.

JJCD10 10kV Insulated Piercing Grounding Connector

  Application: lt is suitable for 10kV overhead insulated wire grounding protection and temporary electrical inspection.

TTD Fire-retardant IPC

TTD Insulated Piercing Connector

  Application: Used for branch connection of insulated cable for building distribution system, connection of LV overhead insulated cables, branch connection of LV insulated service-entrance cable, distribution system of streetlight, etc. Material: • Main line: insulated copper or aluminum • Branch line: insulated copper or aluminum • Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.   Structure feature: • Live-linework or power-cut work is allowable • The screw that is equipped with fastening torque nut is anti-corrosion treated, the torque nut enables the installation to be much simple, safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection. • The connector is featured with property of waterproof; it can withstand voltage of 6KV in water without breakdown phenomenon. The waterproof sealing end cap of branch line prevents water from entering the branch connected conductor. It can be branched on the left or right side according to the demand.
