JJCD10 10kV Insulated Piercing Grounding Connector

Application:

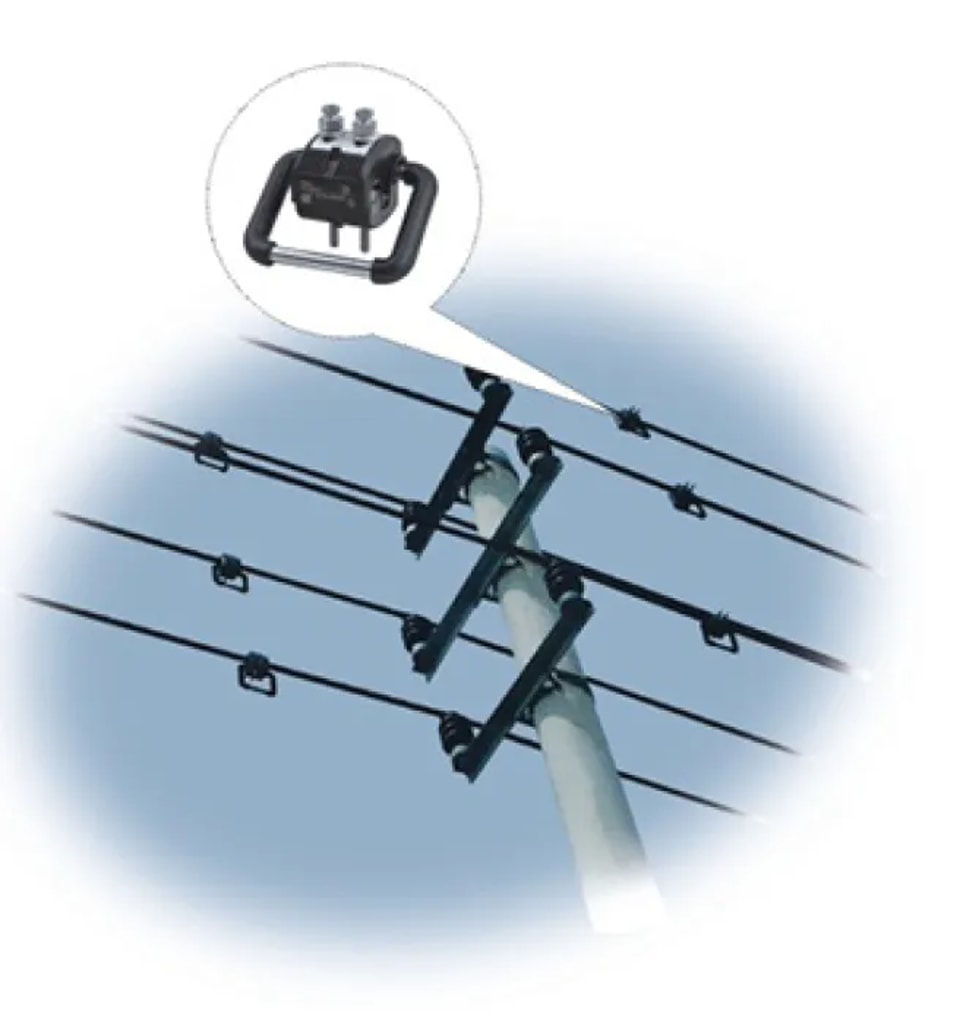

lt is suitable for 10kV overhead insulated wire grounding protection and temporary electrical inspection.

Request a Quote

Product Description

Dimensional Drawing

Parameter

Type	Suitable wire (mm²)	Dimensions (mm)			Normal Current (A)	Bolt Quantity (pcs)	Piercing Depth (mm)
Type	Suitable wire (mm²)	A	B	H	Normal Current (A)	Bolt Quantity (pcs)	Piercing Depth (mm)

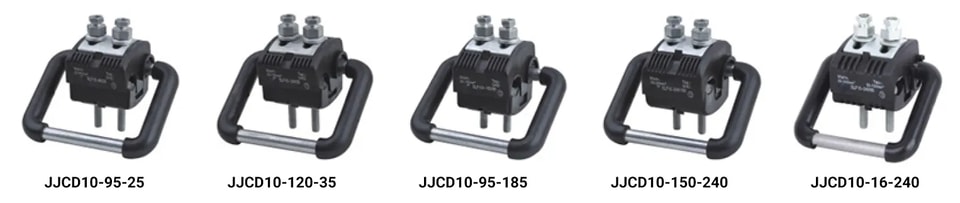

JJCD10-95-25	25-95	144.5	140	92.5	257	2	4-5
JJCD10-120-35	35-120	148	120	86	316	2	4-5
JJCD10-95-185	95-185	152	140	112.5	476	2	4-5
JJCD10-150-240	150-240	160	140	112.5	476	2	4-5
JJCD10-16-240	16-240	148	120	108	476	2	4-5
