Home > Products > Cable Lugs and Connectors > Bimetallic Lugs and Connectors

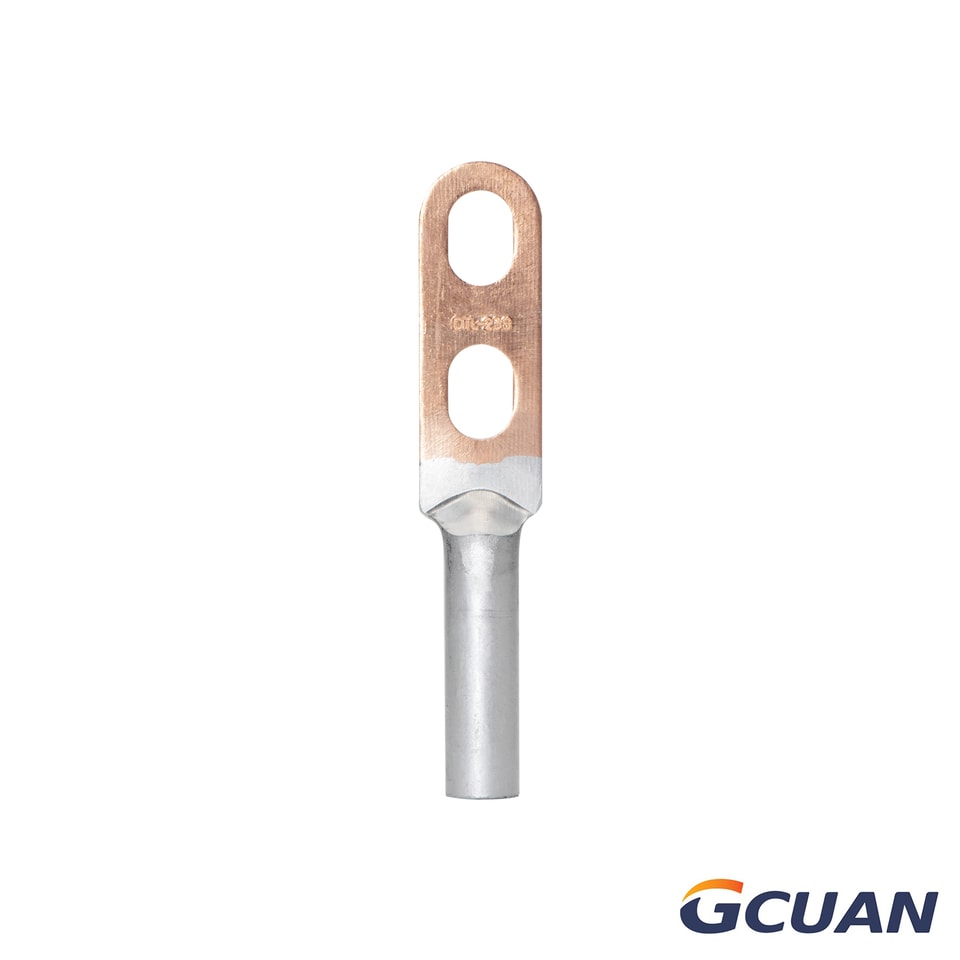

DTL-S Dual Hole Bimetallic Cable Lug

DTL-S Dual Hole Bimetallic Cable Lug

DTL-S Dual Hole Bimetallic Cable Lug

  Application: Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage. From 25 to 400 mm2. Dual hole design for higher stability of installation.   Material:  Al ≥ 99.5%, Cu ≥ 99.9%   Feature:  Friction welded

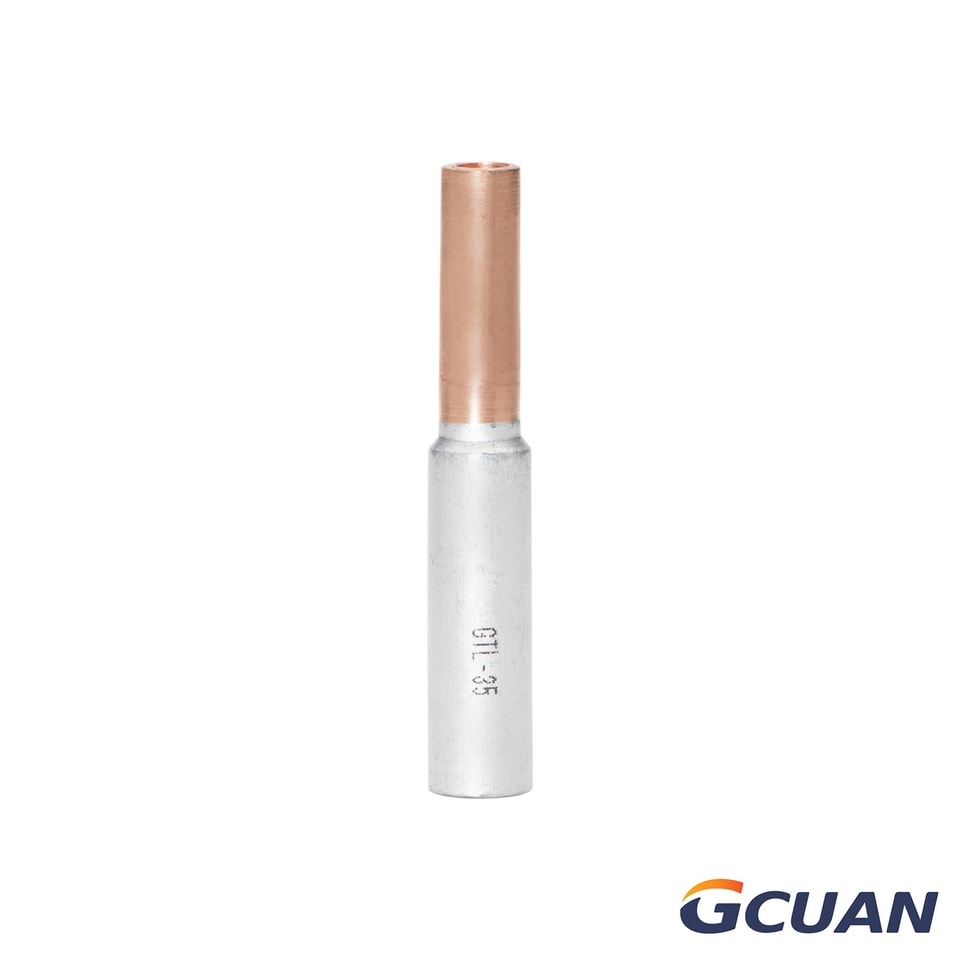

GTL Bimetallic Cable Connector

GTL Bimetallic Cable Connector

GTL Bimetallic Cable Connector

  Application: Used for intermediate transition connection of aluminum cable or aluminum alloy cable with copper cable in medium voltage. From 16 to 400mm² for Al conductor and 10 to 300 mm² for Cu conductor.   Material: Al≥99.5%, Cu≥99.9%   Feature: ·Oil blocking structure ·Friction welded

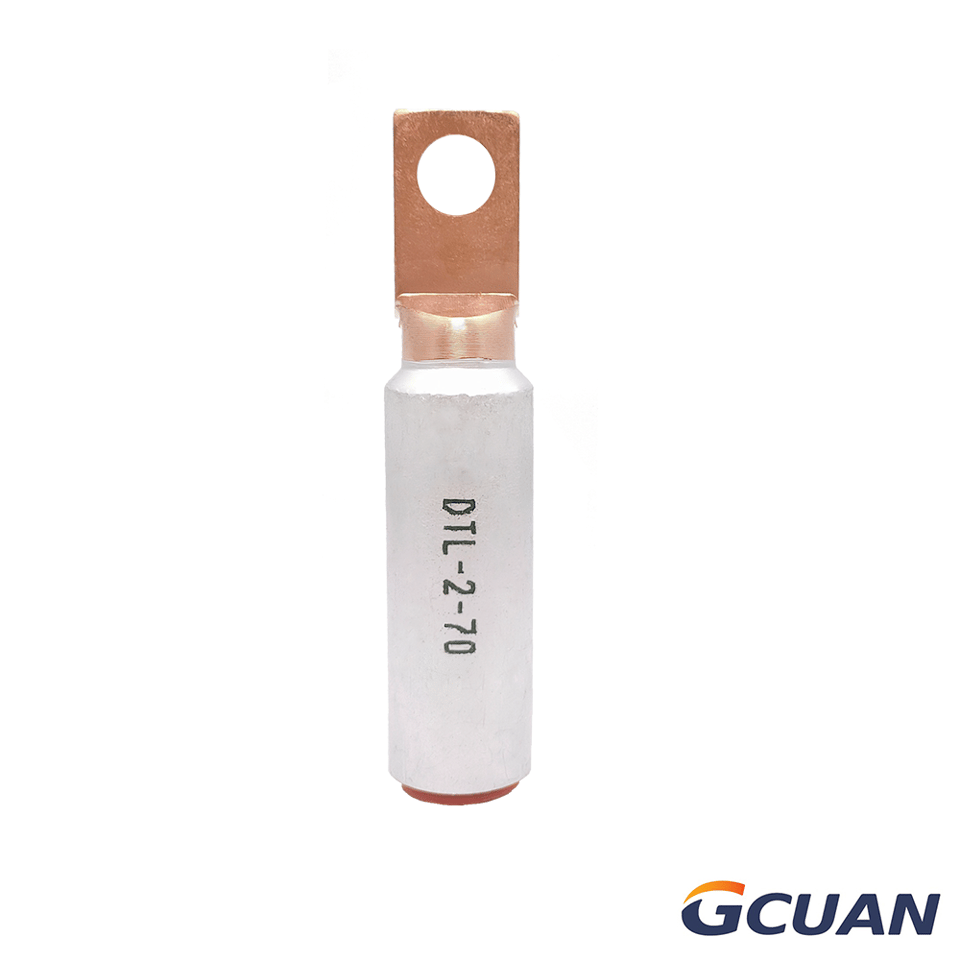

DTL-2F Bimetallic Cable Lug

DTL-2F Bimetallic Cable Lug

DTL-2F Bimetallic Cable Lug

  Application: Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage. From 16 to 500mm2   Material:  Al≥99.5%, Cu≥99.9%   Feature: ·Oil blocking structure ·Friction welded ·Squared head design

GTLA Bimetallic Cable Lug Pin

GTLA Bimetallic Cable Lug Pin

GTLA Bimetallic Cable Lug Pin

  Application: GTLA bimetallic lug pin works for electric meter or mini circuit breaker. From 10 to 70mm2   Material: Cu, Al   Feature: Surface acid washing. Strong electrical conductivity and corrosion resistance.
