Non-Insulated With Brazed Seam Ring Terminals

Item No.

Stud Size

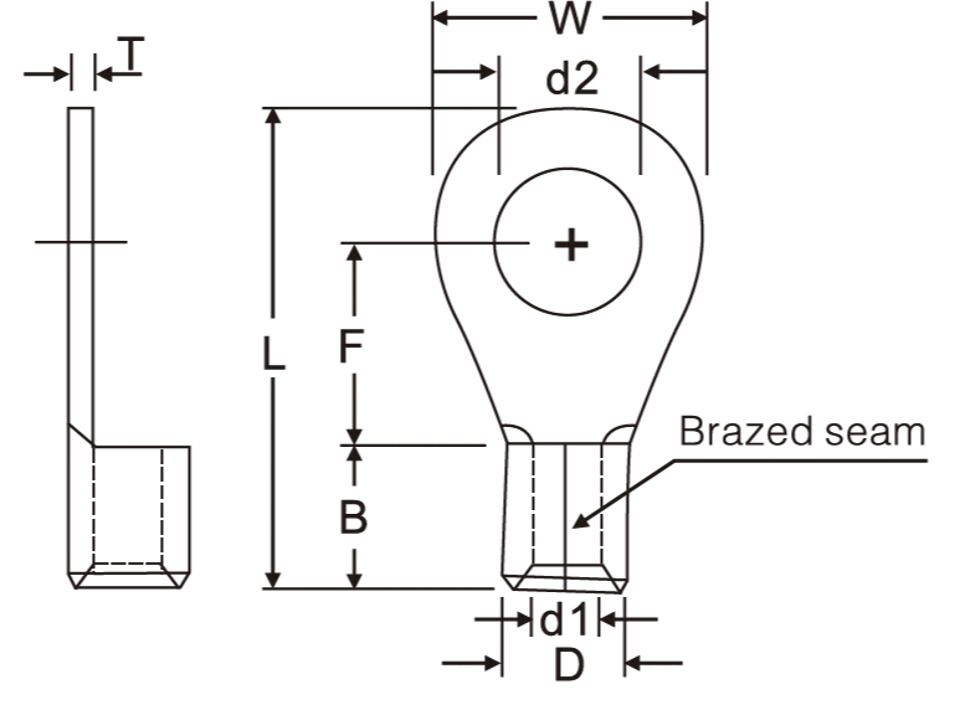

Dimension (mm)

Pcs/
Pack

Tools

Explanation

Metric

American

d2

W

F

L

B

D

d1

T

DRN 0.5-2

2

#2

2.2

5.0

6.0

13.0

4.3

2.2

1.2

0.5

1000

HS-101
jaw-0.5

Wirerange:
0.2-0.5mm²
A.W.G.(26-22)
Max.current=9A

DRN 0.5-2.5

2.5

#3

2.7

5.0

6.0

13.0

DRN 0.5-3

3

#4

3.2

5.0

6.0

13.0

DRN 0.5-3.5

3.5

#6

3.7

6.0

6.0

13.5

DRN 0.5-4

4

#8

4.3

6.5

6.0

13.5

DRNL 0.5-4

4

#8

4.3

8.0

7.0

16.2

DRN 0.5-5

5

#10

5.3

8.0

7.0

16.2

DRNS 0.5-6

6

1/4"

6.4

10.2

8.0

17.0

DRNL 0.5-6

6

1/4"

6.4

11.6

11.0

21.3

RNB 1.25-2

2

#2

2.2

5.5

5.0

12.6

4.8

3.4

1.8

0.75

1000

HS-101
jaw-1.25

Wirerange:
0.5-1.5mm²
A.W.G.(22-16)
Max.current=19A

RNB 1.25-2.5

2.5

#3

2.7

5.5

5.0

12.9

RNB 1.25-3

3

#4

3.2

5.5

5.0

13.0

RNBS 1.25-3.5

3.5

#6

3.7

RNBM 1.25-3.5

3.5

#6

3.7

6.6

6.3

14.4

RNBL 1.25-3.5

3.5

#6

3.7

7.2

7.0

15.5

RNBS 1.25-4

4

#8

4.3

6.6

6.3

14.4

RNBL 1.25-4

4

#8

4.3

8.0

7.0

15.8

RNBS 1.25-5

5

#10

5.3

RNBL 1.25-5

5

#10

5.3

9.5

8.0

17.5

RNBLL 1.25-5

5

#10

5.3

11.6

11.0

21.8

RNBS 1.25-6

6

1/4"

6.4

10.2

8.0

18.0

RNBL 1.25-6

6

1/4"

6.4

11.6

11.0

21.8

RNB 1.25-7

7

5/16"

7.4

11.6

11.0

21.8

RNBS 1.25-8

8

5/16"

8.4

11.6

11.0

21.8

RNBL 1.25-8

8

5/16"

8.4

14.5

12.7

24.7

RNBS 1.25-10

10

3/8"

10.5

13.6

13.9

25.0

RNBL 1.25-10

10

3/8"

10.5

18.0

16.0

27.8

RNB 1.25-12

12

1/2"

13.0

18.0

16.0

28.9

RNB 1.25-13

13

9/16"

14.0

18.0

16.0

30.4

RNB 1.25-14

14

9/16"

15.0

27.0

21.0

30.4

500

RNB 1.25-16

16

5/8"

17.0

27.0

21.0

39.3

RNB 1.25-18

18

11/16"

19.0

27.0

21.0

39.3

RNB 1.25-20

20

3/4"

21.0

27.0

21.0

39.3

RNB 2-2

2

#2

2.2

6.6

4.8

13.0

4.8

4.1

2.3

0.8

1000

HS-101
jaw-2

Wire range:
 1.5-2.5mm²
A.W.G.: (16-14)
Max.current=27A

RNB 2-3

3

#4

3.2

RNBS 2-3.5

3.5

#6

3.7

RNBM 2-3.5

3.5

#6

3.7

6.4

14.7

RNBL 2-3.5

3.5

#6

3.7

8.5

7.8

16.8

RNBS 2-4

4

#8

4.3

6.6

7.0

14.5

RNBL 2-4

4

#8

4.3

8.5

7.8

16.8

RNBS 2-5

5

#10

5.3

RNBL 2-5

5

#10

5.3

9.5

7.8

RNBS 2-6

6

1/4"

6.4

10.2

10.0

20.3

RNBL 2-6

6

1/4"

6.4

12.0

11.0

21.4

RNBS 2-8

8

5/16"

8.4

12.0

10.8

21.8

RNBL 2-8

8

5/16"

8.4

14.5

12.6

25.0

RNB 2-9

9

5/16"

9.8

13.6

13.9

25.5

RNBS 2-10

10

3/8"

10.5

13.6

13.5

25.0

RNBL 2-10

10

3/8"

10.5

18.0

14.8

28.6

RNB 2-12

12

1/2"

13.0

18.0

14.8

28.8

RNB 2-14

14

9/16"

15.0

27.0

21.4

39.7

500

RNB 2-16

16

5/8"

17.0

27.0

21.0

39.7

RNB 2-18

18

11/16"

19.0

27.0

21.0

39.7

RNB 2-20

20

3/4"

21.0

27.0

21.0

39.7

RNBS 3.5-3

3

#4

3.2

5.5

7.7

16.7

6.0

5.0

3.0

1.0

1000

HS-101
jaw-5.5

Wire range:
2.5-4mm²
A.W.G.:(14-12)
Max.current=37A

RNB 3.5-3

3

#4

3.2

6.6

7.7

17.3

RNBS 3.5-4

4

#8

4.3

6.6

7.7

17.3

RNB 3.5-4

4

#8

4.3

8.0

7.7

18.0

RNBS 3.5-5

5

#10

5.3

8.0

7.7

18.0

RNBM 3.5-5

5

#10

5.3

9.5

8.3

19.3

RNBL 3.5-5

5

#10

5.3

12.0

9.4

21.4

RNB 3.5-6

6

1/4"

6.4

12.0

9.4

21.4

RNB 3.5-8

8

5/16"

8.4

15.0

12.5

26.2

500

RNB 3.5-10

10

3/8"

10.5

15.0

12.5

26.2

RNB 3.5-12

12

1/2"

13.0

19.2

15.8

31.6

RNB 5.5-3

3

#4

3.2

7.2

6.0

15.7

6.0

5.6

3.4

1.0

1000

HS-101
jaw-5.5

Wire range:
 4-6mm²
A.W.G.: (12-10)
Max.current=48A

RNB 5.5-3.5

3.5

#6

3.7

7.2

RNBS 5.5-4

4

#8

4.3

7.2

RNBL 5.5-4

4

#8

4.3

9.5

9.1

19.6

RNB 5.5-5

5

#10

5.3

RNB 5.5-6

6

1/4"

6.4

12.2

10.5

22.5

RNBL 5.5-6

6

1/4"

6.4

11.8

13.6

25.6

RNB 5.5-8

8

5/16"

8.4

15.0

13.0

26.8

500

RNB 5.5-10

10

3/8"

10.5

15.0

13.5

26.8

RNB 5.5-12

12

1/2"

13.0

19.2

16.0

32.0

RNB 5.5-13

13

9/16"

14.0

19.2

16.0

32.0

RNB 5.5-14

14

9/16"

15.0

27.0

23.8

43.7

RNB 5.5-16

16

5/8"

17.0

RNB 5.5-18

18

11/16"

19.0

RNB 5.5-20

20

3/4"

21.0

RNB 8-3.5

3.5

#6

3.7

8.8

9.3

23.8

8.5

7.2

4.5

1.2

500

CT-38
jaw-8

Wire range:
 6-10mm²
A.W.G.:(8)
Max.current=62A

RNBS 8-4

4

#8

4.3

8.8

10.5

23.8

RNBL 8-4

4

#8

4.3

12.0

9.3

23.8

RNBS 8-5

5

#10

5.3

8.8

10.5

RNBM 8-5

5

#10

5.3

12.0

9.3

RNBL 8-5

5

#10

5.3

15.0

13.8

30.6

RNBS 8-6

6

1/4"

6.4

12.0

9.3

23.6

RNBL 8-6

6

1/4"

6.4

15.0

13.8

30.0

250

RNB 8-8

8

5/16"

8.4

RNB 8-10

10

3/8"

10.5

15.0

13.8

30.0

RNB 8-11

11

7/16"

11.5

20.0

15.3

39.5

200

RNB 8-12

12

1/2"

13.0

22.0

15.0

39.5

RNB 8-14

14

9/16"

15.0

31.6

25.6

49.5

RNB 8-16

16

5/8"

17.0

RNB 8-18

18

11/16"

19.0

RNB 8-20

20

3/4"

21.0

RNB 8-22

22

7/8"

23.0

RNB 14-4

4

#8

4.3

12.0

13.3

29.8

10.5

9.0

5.8

1.5

200

CT-38
jaw-14

Wire range:
10-16mm²
A.W.G.:(6)
Max.current=88A

RNB 14-5

5

#10

5.3

RNBS 14-6

6

1/4"

6.4

RNBL 14-6

6

1/4"

6.4

16.0

14.2

32.5

RNB 14-8

8

5/16"

8.4

RNB 14-10

10

3/8"

10.5

RNBL 14-10

10

3/8"

10.5

22.0

19.8

41.0

RNB 14-11

11

7/16"

11.5

RNB 14-12

12

1/2"

13.0

RNB 14-14

14

9/16"

15.0

31.6

25.3

51.0

RNB 14-16

16

5/8"

17.0

RNB 14-18

18

11/16"

19.0

RNB 14-20

20

3/4"

21.0

RNB 14-22

22

7/8"

23.0

RNBS 22-4

4

#8

4.3

12.2

14.4

33.0

12.0

11.5

7.7

1.7

200

CT-38
jaw-22

Wire
range:16-25mm²
A.W.G.:(4)
Max.current=115A

RNBS 22-5

5

#10

5.3

12.2

14.4

33.0

RNBL 22-5

5

#10

5.3

16.5

13.5

33.5

RNBS 22-6

6

1/4"

6.4

12.2

14.6

33.0

RNBL 22-6

6

1/4"

6.4

16.5

13.5

33.5

RNB 22-8

8

5/16"

8.4

RNB 22-10

10

3/8"

10.5

RNB 22-11

11

7/16"

11.5

22.0

19.7

42.5

RNB 22-12

12

1/2"

13.0

RNB 22-14

14

9/16"

15.0

30.0

24.2

51.0

RNB 22-16

16

5/8"

17.0

RNB 22-18

18

11/16"

19.0

RNB 22-20

20

3/4"

21.0

RNB 22-22

22

7/8"

23.0

RNB 38-5

5

#10

5.3

15.3

17.4

39.0

14.0

13.3

9.4

1.8

200

CT-38
jaw-38

Wire range
:35mm²
A.W.G.:(2)
Max.current=160A

RNBS 38-6

6

1/4"

6.4

RNBL 38-6

6

1/4"

6.4

22.0

17.4

42.7

RNBS 38-8

8

5/16"

8.4

15.3

17.4

38.8

RNBL 38-8

8

5/16"

8.4

22.0

17.1

42.7

100

RNBS 38-10

10

3/8"

10.5

15.3

17.3

39.0

200

RNBL 38-10

10

3/8"

10.5

22.0

17.7

42.7

100

RNB 38-11

11

7/16"

11.5

RNB 38-12

12

1/2"

13.0

RNB 38-13

13

9/16"

14.0

RNB 38-14

14

9/16"

15.0

28.0

24.1

52.2

RNB 38-16

16

5/8"

17.0

RNB 38-18

18

11/16"

19.0

RNB 38-20

20

3/4"

21.0

RNB 38-22

22

7/8"

23.0

RNB 38-24

24

15/16"

25.0

30.0

23.3

52.2

RNB 60-6

6

1/4"

6.4

22.0

20.7

49.7

18.0

15.4

11.4

1.8

100

CT-80
jaw-60

Wire range:
50mm²
A.W.G.:(1/0)
Max.current=215A

RNB 60-8

8

5/6"

8.4

RNB 60-10

10

3/8"

10.5

RNB 60-11

11

7/16"

11.5

RNB 60-12

12

1/2"

13.0

RNB 60-13

13

9/16"

14.0

RNB 60-14

14

9/16"

15.0

32.0

23.5

57.5

RNB 60-16

16

5/18"

17.0

RNB 60-18

18

11/16"

19.0

RNB 60-20

20

3/4"

21.0

RNB 60-22

22

7/8"

23.0

RNB 70-6

6

1/4"

6.4

24.0

20.0

50.0

18.0

17.5

13.3

2.0

100

CT-80
jaw-70

Wire range:
70mm²
A.W.G.:(2/0)
Max.current=235A

RNB 70-8

8

5/16"

8.4

RNB 70-10

10

3/8"

10.5

RNB 70-11

11

7/16"

11.5

RNB 70-12

12

1/2"

13.0

RNB 70-13

13

9/16"

14.0

32.0

26.0

61.0

RNB 70-14

14

9/16"

15.0

RNB 70-16

16

5/18"

17.0

RNB 70-18

18

11/16"

19.0

RNB 70-20

20

3/4"

21.0

RNB 70-22

22

7/8"

23.0

RNB 80-6

6

1/4"

6.4

27.0

20.7

54.2

20.0

19.5

14.5

2.3

50

CT-80
jaw-80

Wire range:
95mm²
A.W.G.:(3/0)
Max.current=255A

RNB 80-8

8

5/16"

8.4

RNB 80-10

10

3/8"

10.5

RNB 80-11

11

7/16"

11.5

RNB 80-12

12

1/2"

13.0

RNB 80-13

13

9/16"

14.0

RNB 80-14

14

9/16"

15.0

32.0

32.0

68.0

RNB 80-16

16

5/18"

17.0

RNB 80-18

18

11/16"

19.0

RNB 80-20

20

3/4"

21.0

RNB 80-22

22

7/8"

23.0

RNB 100-6

6

1/4"

6.4

28.5

20.4

55.6

21.0

22.1

16.4

2.5

50

CT-150
jaw-100

Wire range:
120mm²
A.W.G.:(4/0)
Max.current=300A

RNB 100-8

8

5/16"

8.4

RNB 100-10

10

3/8"

10.5

RNB 100-11

11

7/16"

11.5

RNB 100-12

12

1/2"

13.0

RNB 100-13

13

9/16"

14.0

32.0

32.0

69.0

RNB 100-14

14

9/16"

15.0

RNB 100-16

16

5/8"

17.0

RNB 100-18

18

11/16"

19.0

RNB 100-20

20

3/4"

21.0

RNB 100-22

22

7/8"

23.0

RNB 150-8

8

5/16"

8.4

36.0

23.0

66.0

27.0

26.6

19.5

3.2

25

CT-150
KH-230
jaw-150

Wire range:
150mm²
A.W.G.:
(250/300MCM)
Max.current=395A

RNB 150-10

10

3/8"

10.5

RNB 150-11

11

7/16"

11.5

RNB 150-12

12

1/2"

13.0

RNB 150-14

14

9/16"

15.0

RNB 150-16

16

5/8"

17.0

RNB 150-18

18

11/16"

19.0

36.0

36.0

81.0

RNB 150-20

20

3/4"

21.0

RNB 150-22

22

7/8"

23.0

RNB 150-24

24

15/16"

25.0

RNB 180-6

6

1/4"

6.4

38.5

24.5

69.0

28.5

28.6

21.0

3.5

25

CT-150
KH-230
jaw-180

Wire range:
185mm²
A.W.G.:
(300/350MCM)
Max.current=440A

RNB 180-8

8

5/16"

8.4

RNB 180-10

10

3/8"

10.5

RNB 180-11

11

7/16"

11.5

RNB 180-12

12

1/2"

13.0

RNB 180-14

14

9/16"

15.0

RNB 180-16

16

5/8"

17.0

RNB 180-18

18

11/16"

19.0

38.5

39.0

86.6

28.5

28.6

21.0

3.5

25

CT-150
KH-230
jaw-180

Wire range:
185mm²
A.W.G.:
(300/350MCM)
Max.current=440A

RNB 180-20

20

3/4"

21.0

RNB 180-22

22

7/8"

23.0

RNB 180-24

24

15/16"

25.0

RNB 200-10

10

3/8"

10.5

44.0

24.5

78.0

31.5

32.6

24.0

4.0

10

KH-230
jaw-200

Wire range:
240mm²
A.W.G.:
(400/500MCM)
Max.current=470A

RNB 200-11

11

7/16"

11.5

RNB 200-12

12

1/2"

13.0

RNB 200-14

14

9/16"

15.0

RNB 200-16

16

5/8"

17.0

RNB 200-18

18

11/16"

19.0

44.0

37.5

91.0

RNB 200-20

20

3/4"

21.0

RNB 200-22

22

7/8"

23.0

RNB 200-24

24

15/16"

25.0

RNB 325-8

8

5/16"

8.4

50.5

33.5

88.0

35.5

37.6

28.0

4.3

5

KH-230
jaw-325

Wire range:
300mm²
A.W.G.:
(500/600MCM)
Max.current=650A

RNB 325-10

10

3/8"

10.5

RNB 325-11

11

7/16"

11.5

RNB 325-12

12

1/2"

13.0

RNB 325-14

14

9/16"

15.0

RNB 325-16

16

5/8"

17.0

RNB 325-18

18

11/16"

19.0

50.5

45.0

105.7

RNB 325-20

20

3/4"

21.0

RNB 325-22

22

7/8"

23.0

RNB 325-24

24

15/16"

25.0
