Vinyl Insulated-Single Crimp Ring Terminals

Item No.

Stud Size

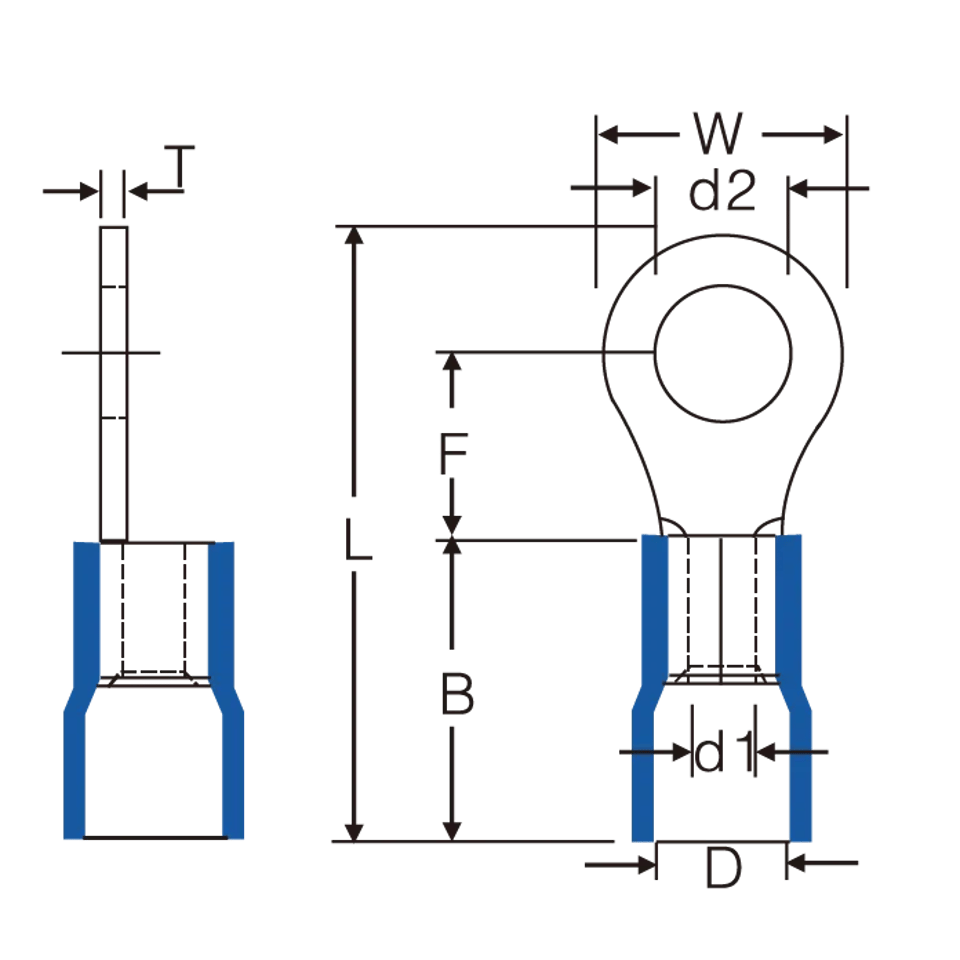

Dimension (mm)

Pcs/

Pack

Color

Tools

Explanation

Metric

American

d2

W

F

L

B

D

d1

T

RV 1.25-2

2

#2

2.2

5.5

5.0

17.8

10.0

4.2

1.8

0.75

1000

Red

LY-03C
red jaw

Wire range:
0.5-1.5mm²
A.W.G.:(22-16)
Max.current=19A

RV 1.25-2.5

2.5

#3

2.7

5.5

5.0

18.1

RV 1.25-3

3

#4

3.2

5.5

5.0

18.2

RVS 1.25-3.5

3.5

#6

3.7

RVM 1.25-3.5

3.5

#6

3.7

6.6

6.3

19.6

RVL 1.25-3.5

3.5

#6

3.7

7.2

7.0

20.7

RVS 1.25-4

4

#8

4.3

6.6

6.3

19.6

RVL 1.25-4

4

#8

4.3

8.0

7.0

21.0

RVS 1.25-5

5

#10

5.3

RVL 1.25-5

5

#10

5.3

9.5

8.0

22.7

RVLL 1.25-5

5

#10

5.3

11.6

11.0

27.0

RVS 1.25-6

6

1/4"

6.4

10.2

8.0

23.2

RVL 1.25-6

6

1/4"

6.4

11.6

11.0

27.0

RV 1.25-7

7

5/16"

7.4

11.6

11.0

27.0

RVS 1.25-8

8

5/16"

8.4

11.6

11.0

27.0

RVL 1.25-8

8

5/16"

8.4

14.5

12.7

29.9

RVS 1.25-10

10

3/8"

10.5

13.6

13.9

30.2

RVL 1.25-10

10

3/8"

10.5

18.0

16.0

33.0

500

RV 1.25-12

12

1/2"

13.0

18.0

16.0

34.1

RV 1.25-13

13

9/16"

14.0

18.0

16.0

35.6

RV 1.25-14

14

9/16"

15.0

27.0

21.0

35.6

250

RV 1.25-16

16

5/8"

17.0

27.0

21.0

44.5

RV 1.25-18

18

11/16"

19.0

27.0

21.0

44.5

RV 1.25-20

20

3/4"

21.0

27.0

21.0

44.5

RV 2-2

2

#2

2.2

6.6

4.8

18.2

10.0

4.9

2.3

0.8

1000

Blue

LY-03C
blue jaw

Wire range:
1.5-2.5mm²
A.W.G.:(16-14)
Max.current=27A

RV 2-3

3

#4

3.2

RVS 2-3.5

3.5

#6

3.7

RVM 2-3.5

3.5

#6

3.7

6.4

19.9

RVL 2-3.5

3.5

#6

3.7

8.5

7.8

22.0

RVS 2-4

4

#8

4.3

6.6

7.0

19.7

RVL 2-4

4

#8

4.3

8.5

7.8

22.0

RVS 2-5

5

#10

5.3

RVL 2-5

5

#10

5.3

9.5

7.8

RVS 2-6

6

1/4"

6.4

10.2

10.0

25.5

RVL 2-6

6

1/4"

6.4

12.0

11.0

26.6

RVS 2-8

8

5/16"

8.4

12.0

10.8

27.0

RVL 2-8

8

5/16"

8.4

14.5

12.6

30.2

500

RV 2-9

9

5/16"

9.8

13.6

13.9

30.7

1000

RVS 2-10

10

3/8"

10.5

13.6

13.5

30.2

RVL 2-10

10

3/8"

10.5

18.0

14.8

33.8

500

RV 2-12

12

1/2"

13.0

18.0

14.8

34.0

RV 2-14

14

9/16"

15.0

27.0

21.4

44.9

250

RV 2-16

16

5/8"

17.0

27.0

21.0

44.9

RV 2-18

18

11/16"

19.0

27.0

21.0

44.9

RV 2-20

20

3/4"

21.0

27.0

21.0

44.9

RVS 3.5-3

3

#4

3.2

5.5

7.7

23.8

12.5

6.2

3.0

1.0

500

Black

LY-03C
yellow jaw

Wire range:
2.5-4mm²
A.W.G.:(14-12)
Max.current=37A

RV 3.5-3

3

#4

3.2

6.6

7.7

23.8

RVS 3.5-4

4

#8

4.3

6.6

7.7

23.8

RV 3.5-4

4

#8

4.3

8.0

7.7

24.5

RVS 3.5-5

5

#10

5.3

8.0

7.7

24.5

RVM 3.5-5

5

#10

5.3

9.5

8.3

25.8

RVL 3.5-5

5

#10

5.3

12.0

9.4

27.9

RV 3.5-6

6

1/4"

6.4

12.0

9.4

27.9

RV 3.5-8

8

5/16"

8.4

15.0

12.5

32.7

RV 3.5-10

10

3/8"

10.5

15.0

12.5

32.7

RV 3.5-12

12

1/2"

13.0

19.2

15.8

38.1

RV 5.5-3

3

#4

3.2

7.2

6.0

22.7

13.0

6.6

3.4

1.0

500

Yellow

LY-03C
yellow jaw

Wire range:
4-6mm²
A.W.G.:(12-10)
Max.current=48A

RV 5.5-3.5

3.5

#6

3.7

7.2

RVS 5.5-4

4

#8

4.3

7.2

RVL 5.5-4

4

#8

4.3

9.5

9.1

26.6

RV 5.5-5

5

#10

5.3

RV 5.5-6

6

1/4"

6.4

12.2

10.5

29.5

RVL 5.5-6

6

1/4"

6.4

11.8

13.6

32.6

RV 5.5-8

8

5/16"

8.4

15.0

13.0

33.8

RV 5.5-10

10

3/8"

10.5

13.5

33.8

RV 5.5-12

12

1/2"

13.0

19.2

16.0

39.0

RV 5.5-13

13

9/16"

14.0

19.2

16.0

39.0

RV 5.5-14

14

9/16"

15.0

27.0

23.8

50.7

250

RV 5.5-16

16

5/8"

17.0

RV 5.5-18

18

11/16"

19.0

RV 5.5-20

20

3/4"

21.0

RV 8-3.5

3.5

#6

3.7

8.8

9.3

31.3

15.5

8.0

4.5

1.2

250

Red

/

Wire range:
6-10mm²
A.W.G.:(8)
Max.current=62A

RVS 8-4

4

#8

4.3

8.8

10.5

31.3

RVL 8-4

4

#8

4.3

12.0

9.3

31.3

RVS 8-5

5

#10

5.3

8.8

10.5

RVM 8-5

5

#10

5.3

12.0

9.3

RVL 8-5

5

#10

5.3

15.0

13.8

38.1

RVS 8-6

6

1/4"

6.4

12.0

9.3

31.1

RVL 8-6

6

1/4"

6.4

15.0

13.8

37.5

RV 8-8

8

5/16"

8.4

RV 8-10

10

3/8"

10.5

15.0

13.8

37.5

RV 8-11

11

7/16"

11.5

20.0

15.3

47.0

RV 8-12

12

1/2"

13.0

22.0

15.0

47.0

RV 8-14

14

9/16"

15.0

31.6

25.6

57.0

200

RV 8-16

16

5/8"

17.0

RV 8-18

18

11/16"

19.0

RV 8-20

20

3/4"

21.0

RV 8-22

22

7/8"

23.0

RV 14-4

4

#8

4.3

12.0

13.3

41.3

22.0

10.5

5.8

1.5

200

Blue

/

Wire range:
10-16mm²
A.W.G.:(6)
Max.current=88A

RV 14-5

5

#10

5.3

RVS 14-6

6

1/4"

6.4

RVL 14-6

6

1/4"

6.4

16.0

14.2

44.0

RV 14-8

8

5/16"

8.4

RV 14-10

10

3/8"

10.5

RV 14-11

11

7/16"

11.5

22.0

19.8

53.5

RV 14-12

12

1/2"

13.0

RV 14-14

14

9/16"

15.0

31.6

25.3

62.5

100

RV 14-16

16

5/8"

17.0

RV 14-18

18

11/16"

19.0

RV 14-20

20

3/4"

21.0

RV 14-22

22

7/8"

23.0

RVS 22-6

6

1/4"

6.4

12.2

14.6

44.3

23.3

13.4

7.7

1.7

100

Yellow

/

Wire range:
16-25mm²
A.W.G.:(4)
Max.current=115A

RV 22-8

8

5/16"

8.4

16.5

13.5

44.8
