Pin Type, 1P+N Busbars-DPN
Specifications:
· Material: Pure copper, fire-resistance PVC
· Phase/pole: 1P+N
· Rated Current (A): 20-70
Features:
· With standard pin spacing to match DPN breakers
· Good conductivity, Low contact resistance
· Good versatility and tractability
· Advantages and security and convenience to install and widely used in construction electrical devices.

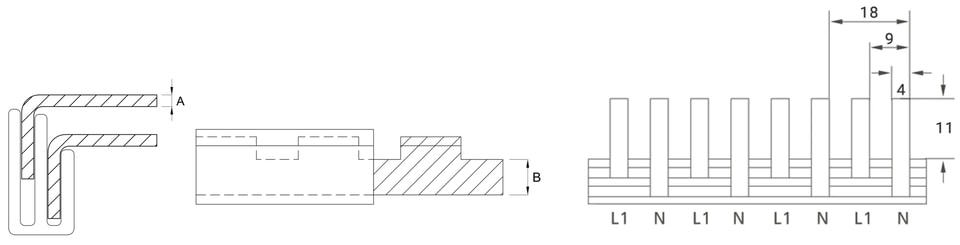

Dimensional Drawing:
Parameter:
Type | A - Thickness of Pin(mm) | B - Width of Conductor (mm) | Pin Pitch (mm) | Distance (mm) | Width of Pin | Length of Pin (mm) | Modules | Length (mm) | Reference Current |
DPN-20A-1-4.5 | 1 | 4.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 20A |
DPN-32A-1-4.5 | 1 | 4.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 32A |
DPN-40A-1.2-4.5 | 1.2 | 4.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 40A |
DPN-60A-1.4-4.5 | 1.4 | 4.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 60A |
DPN-60A-1.2-6.5 | 1.2 | 6.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 60A |
DPN-63A-1.2-7.5 | 1.2 | 7.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 63A |
DPN-63A-1.4-6.5 | 1.4 | 6.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 63A |
DPN-70A-1.4-7.5 | 1.4 | 7.5 | 18 | 9 | 4 | 11 | 53 | 1000 | 70A |
