Pin Type, 3 Phase Busbars-3P
Specifications:
· Material: Pure copper, fire-resistance PVC
· Phase/pole:3p
· Rated Current (A): 20-100
Features:
· Good conductivity
· Low contact resistance
· Good versatility and tractability
· Advantages and security and convenience to install and widely used in construction electrical devices.

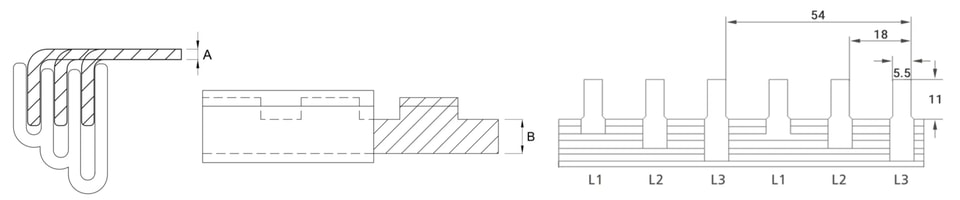

Dimensional Drawing:
Parameter:
Type | A - Thickness of Pin(mm) | B - Width of Conductor (mm) | Pin Pitch (mm) | Distance (mm) | Width of Pin | Length of Pin (mm) | Modules | Length (mm) | Reference Current |
3P-20A-1.0-4.5 | 1.0 | 4.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 20A |
3P-32A-1.0-4.5 | 1.0 | 4.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 32A |
3P-40A-1.2-4.5 | 1.2 | 4.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 40A |
3P-60A-1.4-4.5 | 1.4 | 4.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 60A |
3P-60A-1.7-4.5 | 1.7 | 4.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 60A |
3P-60A-1.2-6.5 | 1.2 | 6.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 60A |
3P-63A-1.2-7.5 | 1.2 | 7.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 63A |
3P-63A-1.4-6.5 | 1.4 | 6.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 63A |
3P-70A-1.4-7.5 | 1.4 | 7.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 70A |
3P-80A-1.7-6.5 | 1.7 | 6.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 80A |
3P-100A-1.7-7.5 | 1.7 | 7.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 100A |
3P-100A-1.7-9.5 | 1.7 | 9.5 | 54 | 18 | 5.5 | 11 | 54 | 1000 | 100A |
