Pin Type, 4 Phase Busbars-4P
Specifications:
· Material: Pure copper, fire-resistance PVC
· Phase/pole:4p
· Rated Current (A): 40-100
Features:
· Good conductivity
· Low contact resistance
· Good versatility and tractability
· Advantages and security and convenience to install and widely used in construction electrical devices.

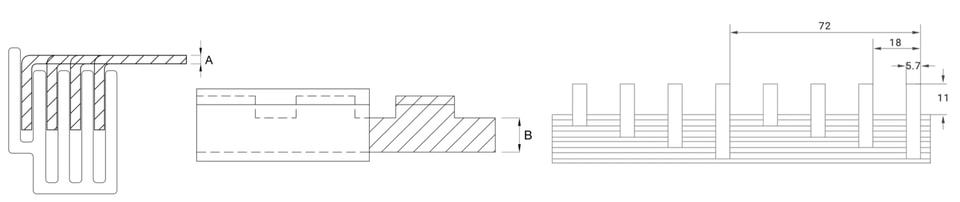

Dimensional Drawing:
Parameter:
Type | A - Thickness of Pin(mm) | B - Width of Conductor (mm) | Pin Pitch (mm) | Distance (mm) | Width of Pin | Length of Pin (mm) | Modules | Length (mm) | Reference Current |
4P-40A-1.2-4.5 | 1.2 | 4.5 | 72 | 18 | 5.7 | 11 | 52 | 1000 | 40A |
4P-60A-1.4-4.5 | 1.4 | 4.5 | 72 | 18 | 5.7 | 11 | 52 | 1000 | 60A |
4P-60A-1.7-4.5 | 1.7 | 4.5 | 72 | 18 | 5.7 | 11 | 52 | 1000 | 60A |
4P-63A-1.4-6.5 | 1.4 | 6.5 | 72 | 18 | 5.7 | 11 | 52 | 1000 | 63A |
4P-100A-1.7-7.5 | 1.7 | 7.5 | 72 | 18 | 5.7 | 11 | 52 | 1000 | 100A |
4P-100A-1.7-9.5 | 1.7 | 9.5 | 72 | 18 | 5.7 | 11 | 52 | 1000 | 100A |
