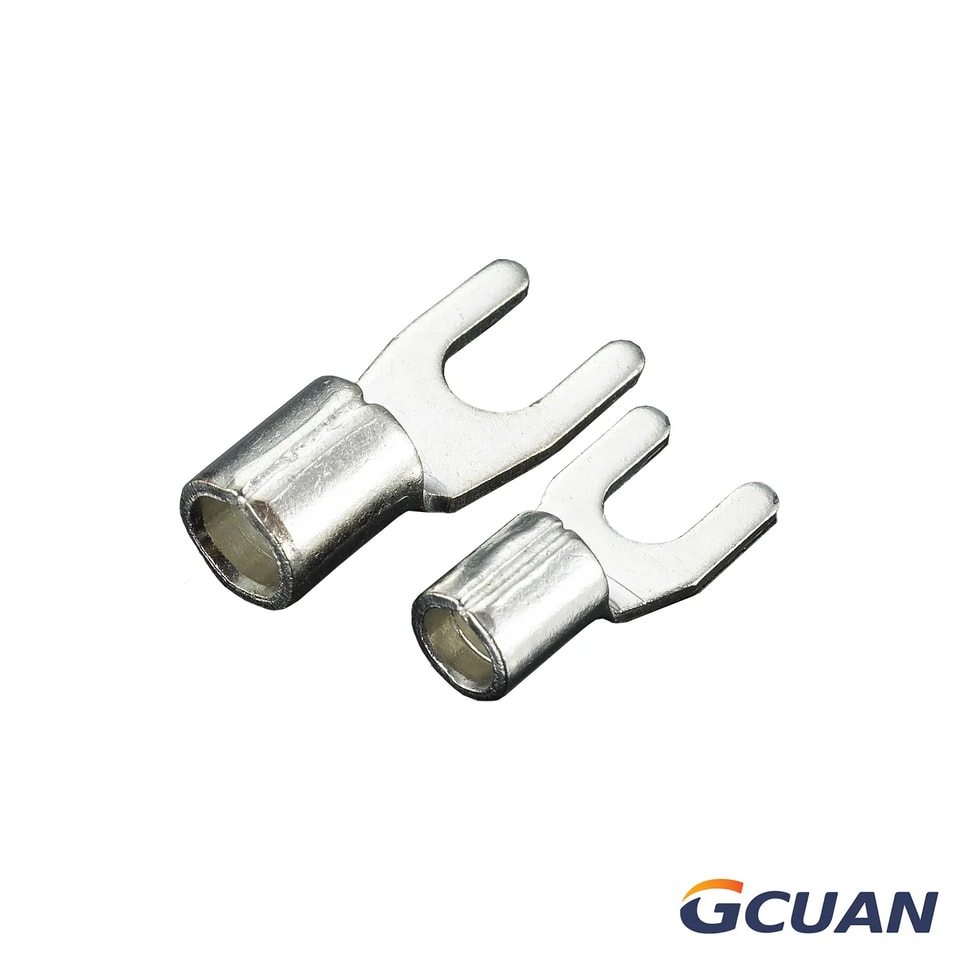

Non-Insulated With Brazed Seam Spade Terminals

Item No.

Stud Size

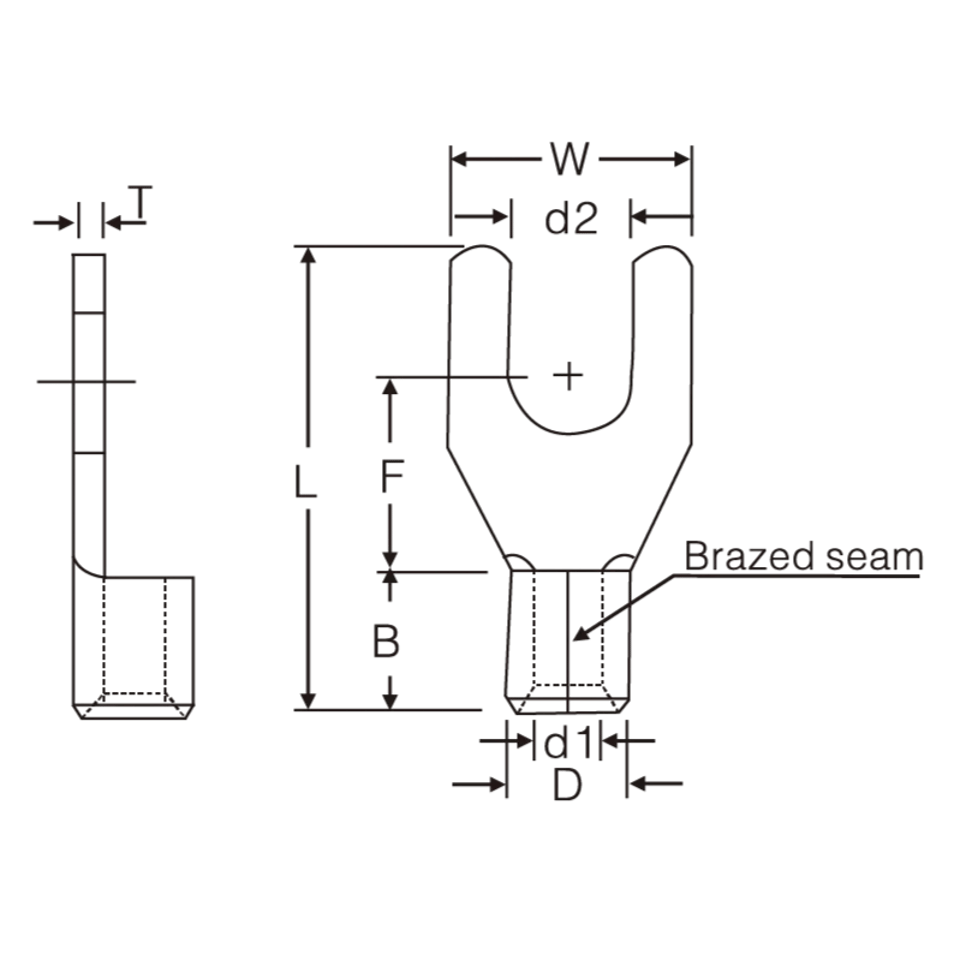

Dimension (mm)

Pcs/

Pack

Tools

Explanation

Metric

American

d2

W

F

L

B

D

d1

T

DSN 0.5-2

2

#2

2.2

5.0

4.0

11.2

4.3

2.2

1.2

0.5

1000

HS-101
jaw-0.5

Wire range:
0.2-0.5mm²
A.W.G.:(26-22)
Max.current=9A

DSN 0.5-3

3

#4

3.2

5.0

4.1

11.2

DSN 0.5-3.5

3.5

#6

3.7

6.0

6.0

13.5

DSN 0.5-4

4

#8

4.3

6.5

6.0

13.5

DSN 0.5-5

5

#10

5.3

8.0

6.5

14.7

SNB 1.25-3

3

#4

3.2

5.7

6.5

16.0

4.8

3.4

1.8

0.75

1000

HS-101
jaw-1.25

Wire range:
0.5-1.5mm²
A.W.G.:(22-16)
Max.current=19A

SNBS 1.25-3.5

3.5

#6

3.7

SNBL 1.25-3.5

3.5

#6

3.7

6.4

SNBS 1.25-4

4

#8

4.3

6.4

SNBM 1.25-4

4

#8

4.3

7.2

6.5

16.0

SNBL 1.25-4

4

#8

4.3

8.1

6.5

16.0

SNBS 1.25-5

5

#10

5.3

6.5

16.0

SNBL 1.25-5

5

#10

5.3

9.5

6.5

16.0

SNBS 1.25-6

6

1/4"

6.4

6.5

16.7

SNBL 1.25-6

6

1/4"

6.4

12.0

11.0

22.0

SNB 1.25-8

8

5/16"

8.4

14.0

11.8

22.8

SNB 2-3

3

#4

3.2

5.7

6.5

15.5

4.8

4.1

2.3

0.8

1000

HS-101
jaw-2

Wire range:
1.5-2.5mm²
A.W.G.:(16-14)
Max.current=27A

SNBS 2-3.5

3.5

#6

3.7

6.5

15.5

SNBL 2-3.5

3.5

#6

3.7

6.4

6.5

16.0

SNBS 2-4

4

#8

4.3

6.4

6.5

16.0

SNBM 2-4

4

#8

4.3

7.2

6.5

16.0

SNBL 2-4

4

#8

4.3

8.1

6.5

16.0

SNBS 2-5

5

#10

5.3

6.5

16.0

SNBL 2-5

5

#10

5.3

9.3

6.5

16.0

SNBS 2-6

6

1/4"

6.4

9.3

6.5

16.0

SNBL 2-6

6

1/4"

6.4

12.0

11.0

22.0

SNB 2-8

8

5/16"

8.4

14.0

13.0

23.5

SNB 3.5-3

3

#4

3.2

5.7

6.3

17.8

6.0

5.0

3.0

1.0

1000

HS-101
jaw-5.5

Wire range:
2.5-4mm²
A.W.G.:(14-12)
Max.current = 37A

SNB 3.5-3.5

3.5

#6

3.7

8.0

7.0

18.3

SNB 3.5-4

4

#8

4.3

SNB 3.5-5

5

#10

5.3

SNB 3.5-6

6

1/4"

6.4

12.0

8.7

21.5

SNB 3.5-8

8

5/16"

8.4

14.0

11.5

23.7

SNB 3.5-10

10

3/8"

10.5

17.5

12.5

26.5

SNB 5.5-3

3

#4

3.2

7.3

6.5

18.7

6.0

5.6

3.4

1.0

1000

HS-101
jaw-5.5

Wire range:
4-6mm²
A.W.G.:(12-10)
Max.current = 48A

SNB 5.5-3.5

3.5

#6

3.7

8.3

7.0

18.7

SNBS 5.5-4

4

#8

4.3

8.3

7.0

18.2

SNBL 5.5-4

4

#8

4.3

9.0

7.0

18.5

SNB 5.5-5

5

#10

5.3

9.0

7.0

18.2

SNBS 5.5-6

6

1/4"

6.4

9.2

7.0

18.7

SNBL 5.5-6

6

1/4"

6.4

12.0

12.0

23.8

SNB 5.5-8

8

5/16"

8.4

14.0

12.0

23.8

500

SNB 5.5-10

10

3/8"

10.5

17.5

12.5

26.5

SNB 8-4

4

#8

4.3

8.0

8.0

23.0

8.5

7.2

4.5

1.2

500

HS-38
jaw-8

Wire range:
6-10mm²
A.W.G.:(8)
Max.current = 62A

SNB 8-5

5

#10

5.3

10.8

10.5

23.0

SNB 8-6

6

1/4"

6.4

10.8

10.5

23.0

SNB 8-8

8

5/16"

8.4

14.4

14.0

28.0

SNB 8-10

10

3/8"

10.5

15.9

10.7

28.0

SNB 14-4

4

#8

4.3

9.0

9.5

25.5

11.0

9.0

5.8

1.5

250

HS-38
jaw-14

Wire range:
10-16mm²
A.W.G.:(6)
Max.current = 88A

SNB 14-5

5

#10

5.3

11.7

10.7

28.9

SNB 14-6

6

1/4"

6.4

11.7

10.7

28.7

SNB 14-8

8

5/16"

8.4

13.8

10.7

28.7

SNB 14-10

10

3/8"

10.5

15.9

10.7

28.7

SNB 22-5

5

#10

5.3

13.8

9.0

33.7

12.0

11.5

8.0

1.7

200

HS-38
jaw-22

Wire range:
16-25mm²
A.W.G.:(4)
Max.current = 115A

SNB 22-6

6

1/4"

6.4

13.8

9.0

33.7

SNB 22-8

8

5/16"

8.4

SNB 22-10

10

3/8"

10.5

16.5

13.5

33.7
