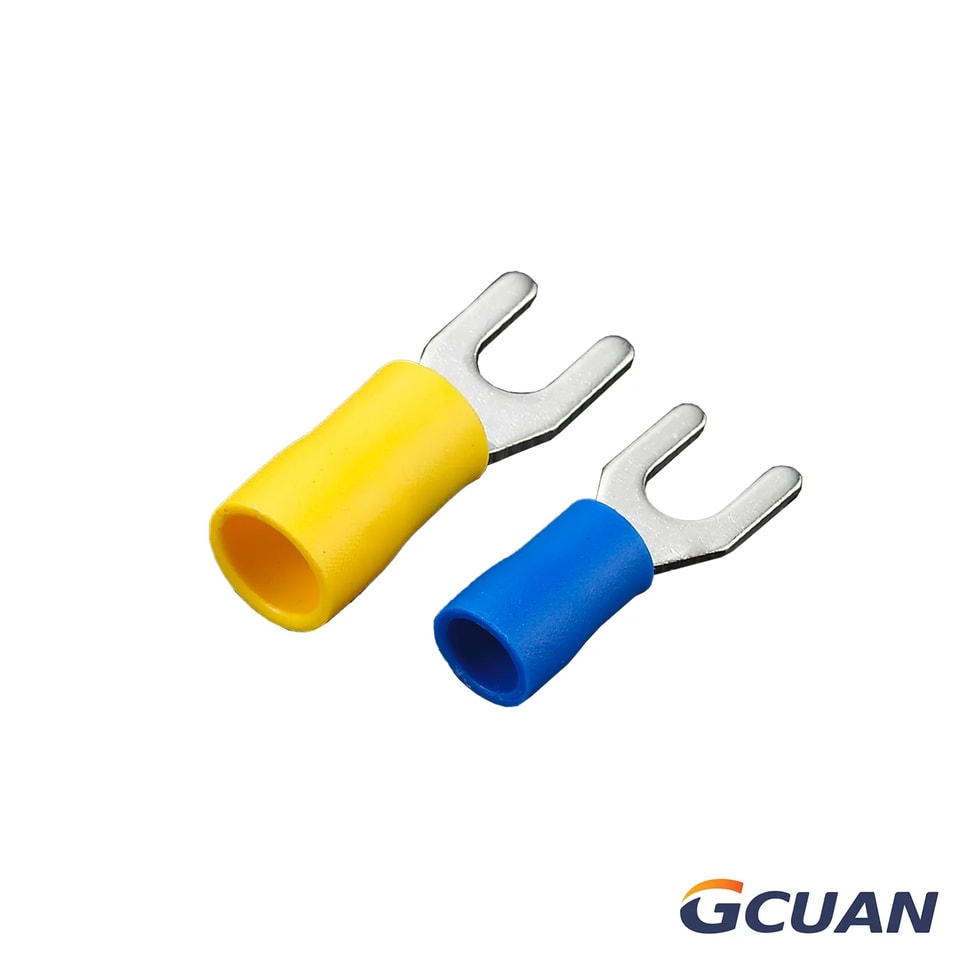

Vinyl Insulated-Single Crimp Spade Terminals

Item No.

Stud Size

Dimension (mm)

Pcs/

Pack

Color

Tools

Explanation

Metric

American

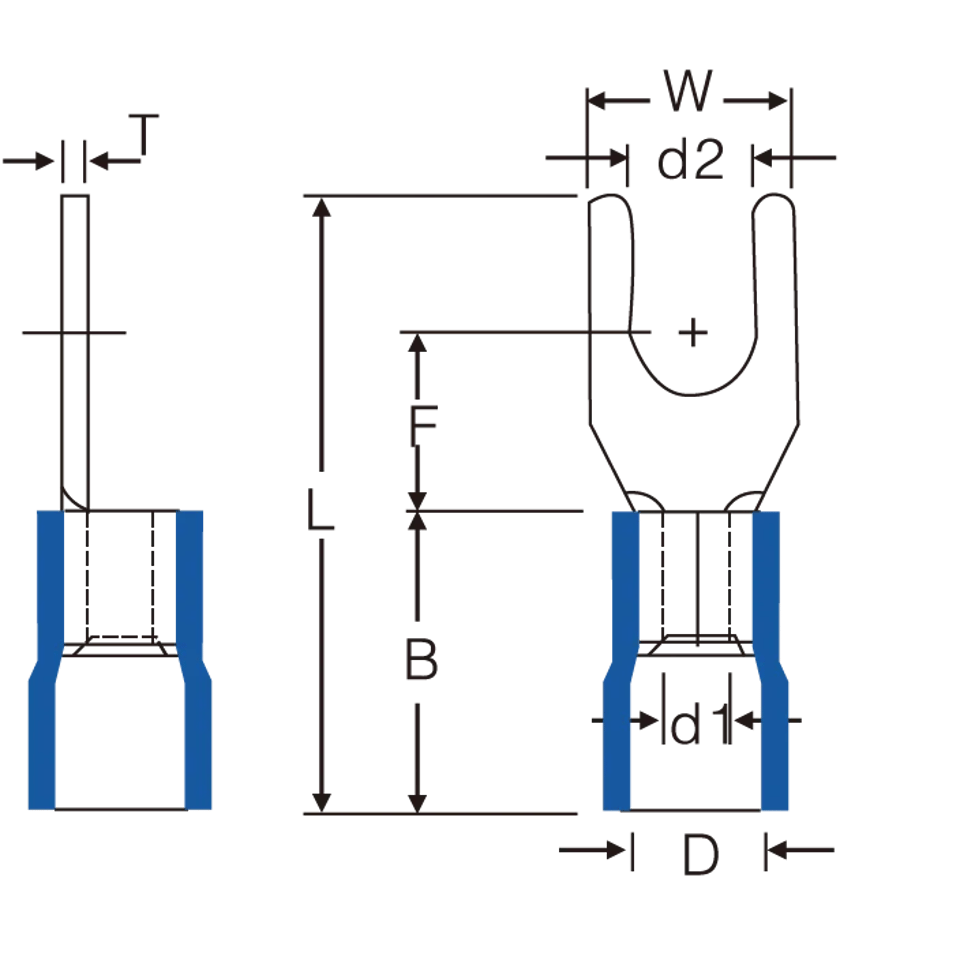

d2

W

F

L

B

D

d1

T

SV 1.25-3

3

#4

3.2

5.7

6.5

21.0

10.0

4.2

1.8

0.75

1000

Red

LY-03C
red jaw

Wire range:
0.5-1.5mm²
A.W.G.:(22-16)
Max.current=19A

SVS 1.25-3.5

3.5

#6

3.7

SVL 1.25-3.5

3.5

#6

3.7

6.4

21.0

SVS 1.25-4

4

#8

4.3

6.4

SVM 1.25-4

4

#8

4.3

7.2

6.5

SVL 1.25-4

4

#8

4.3

8.1

6.5

SVS 1.25-5

5

#10

5.3

SVL 1.25-5

5

#10

5.3

9.5

6.5

21.2

SVS 1.25-6

6

1/4"

6.4

6.5

21.9

SVL 1.25-6

6

1/4"

6.4

12.0

11.0

27.2

SV 1.25-8

8

5/16"

8.4

14.0

11.8

28.0

500

SV 2-3

3

#4

3.2

5.7

6.5

21.0

10.0

4.9

2.3

0.8

1000

Blue

LY-03C
blue jaw

Wire range:
1.5-2.5mm²
A.W.G.:(16-14)
Max.current=27A

SVS 2-3.5

3.5

#6

3.7

6.5

SVL 2-3.5

3.5

#6

3.7

6.4

6.5

SVS 2-4

4

#8

4.3

6.4

6.5

SVM 2-4

4

#8

4.3

7.2

6.5

SVL 2-4

4

#8

4.3

8.1

6.5

SVS 2-5

5

#10

5.3

SVL 2-5

5

#10

5.3

9.3

SVS 2-6

6

1/4"

6.4

9.2

SVL 2-6

6

1/4"

6.4

12.0

11.0

27.2

SV 2-8

8

5/16"

8.4

14.0

13.0

28.7

500

SV 3.5-3

3

#4

3.2

5.7

6.3

24.4

12.5

6.2

3.0

1.0

500

Black

LY-03C
yellow jaw

Wire range:
2.5-4mm²
A.W.G.:(14-12)
Max.current=37A

SV 3.5-3.5

3.5

#6

3.7

8.0

7.0

24.9

SV 3.5-4

4

#8

4.3

SV 3.5-5

5

#10

5.3

SV 3.5-6

6

1/4"

6.4

12.0

8.7

28.0

SV 3.5-8

8

5/16"

8.4

14.0

11.5

30.3

SV 3.5-10

10

3/8"

10.5

17.5

12.5

33.1

SV 5.5-3

3

#4

3.2

7.3

6.5

25.7

13.0

6.6

3.4

1.0

500

Yellow

LY-03C
yellow jaw

Wire range:
4-6mm²
A.W.G.:(12-10)
Max.current=48A

SV 5.5-3.5

3.5

#6

3.7

8.3

7.0

25.7

SVS 5.5-4

4

#8

4.3

8.3

7.0

25.2

SVL 5.5-4

4

#8

4.3

9.0

7.0

25.5

SV 5.5-5

5

#10

5.3

9.0

7.0

25.5

SVS 5.5-6

6

1/4"

6.4

9.2

7.0

25.7

SVL 5.5-6

6

1/4"

6.4

12.0

12.0

30.8

SV 5.5-8

8

5/16"

8.4

14.0

12.0

30.8

SV 5.5-10

10

3/8"

10.5

17.5

12.5

33.5

SV 8-4

4

#8

4.3

8.0

8.0

30.0

15.5

8.0

4.5

1.2

250

Red

HS-38
jaw-14

Wire range:
6-10mm²
A.W.G.:(8)
Max.current=62A

SV 8-5

5

#10

5.3

10.8

10.5

30.0

SV 8-6

6

1/4"

6.4

10.8

10.5

30.0

SV 8-8

8

5/16"

8.4

14.4

14.0

35.0

SV 8-10

10

3/8"

10.5

15.9

10.7

35.0

SV 14-4

4

#8

4.3

9.0

9.5

36.5

22.0

10.5

5.8

1.5

200

Blue

HS-38
 jaw-22

Wire range:
10-16mm²
A.W.G.:(6)
Max.current=88A

SV 14-5

5

#10

5.3

11.7

10.7

39.9

SV 14-6

6

1/4"

6.4

11.7

10.7

39.7

SV 14-8

8

5/16"

8.4

13.8

10.7

39.7

SV 14-10

10

3/8"

10.5

15.9

10.7

39.7

SV 22-5

5

#10

5.3

13.8

9.0

45.0

23.3

13.4

7.7

1.7

100

Yellow

HS-38
jaw-38

Wire range:
16-25mm²
A.W.G.:(4)
Max.current=115A

SV 22-6

6

1/4"

6.4

SV 22-8

8

5/16"

8.4

SV 22-10

10

3/8"

10.5

16.5

13.5
