Nylon Insulated-Single Crimp Spade Terminals

Item No.

Stud Size

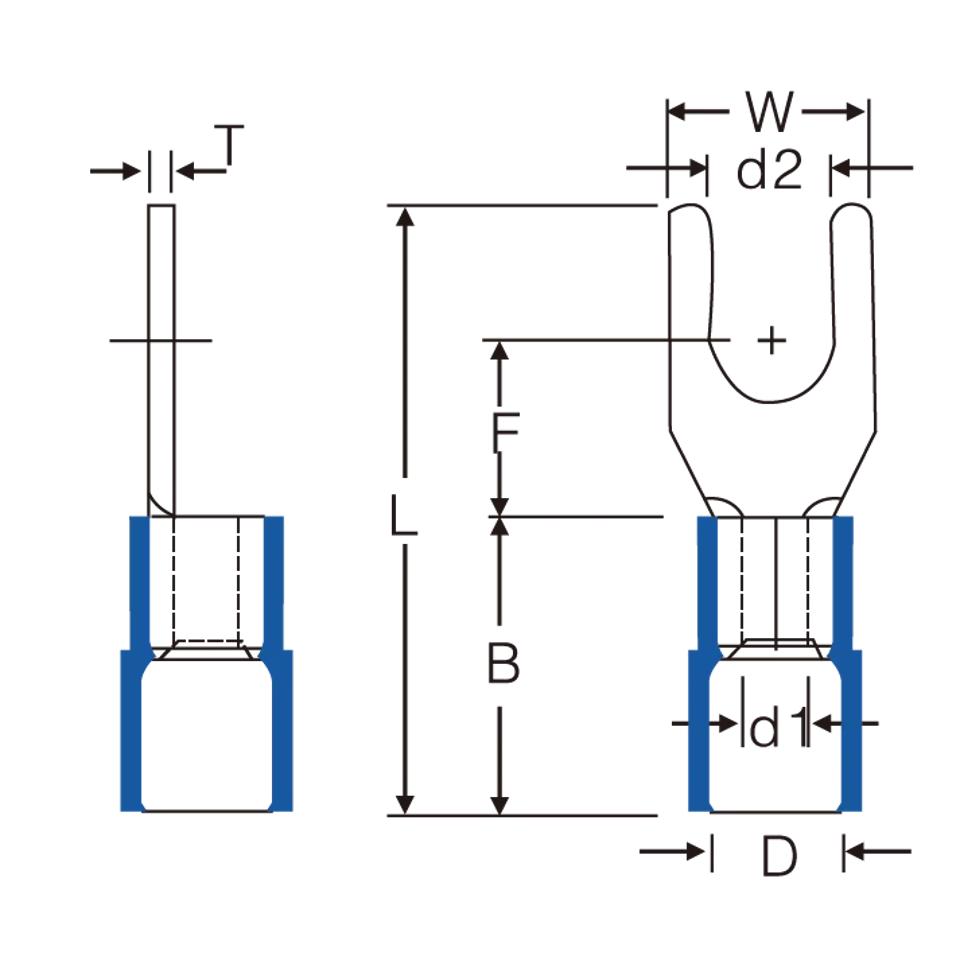

Dimension (mm)

Pcs/

Pack

Color

Tools

Explanation

Metric

American

d2

W

F

L

B

D

d1

T

DSNYB 0.5-2

2

#2

2.2

5.0

4.0

14.6

7.7

2.8

1.2

0.5

1000

Yellow

/

Wire range:
0.2-0.5mm²
A.W.G.:(26-22)
Max.current=9A

DSNYB 0.5-3

3

#4

3.2

5.0

4.1

14.6

DSNYB 0.5-3.5

3.5

#6

3.7

6.0

6.0

16.9

DSNYB 0.5-4

4

#8

4.3

6.5

6.0

16.9

DSNYB 0.5-5

5

#10

5.3

8.0

6.5

18.1

SNYB 1.25-3

3

#4

3.2

5.7

6.5

21.7

10.5

4.2

1.8

0.75

1000

Red

LY-03C
red jaw

Wire range:
0.5-1.5mm²
A.W.G.:(22-16)
Max.current=19A

SNYBS 1.25-3.5

3.5

#6

3.7

SNYBL 1.25-3.5

3.5

#6

3.7

6.4

SNYBS 1.25-4

4

#8

4.3

6.4

SNYBM 1.25-4

4

#8

4.3

7.2

6.5

21.7

SNYBL 1.25-4

4

#8

4.3

8.1

6.5

21.7

SNYBS 1.25-5

5

#10

5.3

6.5

21.7

SNYBL 1.25-5

5

#10

5.3

9.5

6.5

21.7

SNYBS 1.25-6

6

1/4"

6.4

6.5

22.4

SNYBL 1.25-6

6

1/4"

6.4

12.0

11.0

27.7

SNYB 1.25-8

8

5/16"

8.4

14.0

11.8

28.5

SNYB 2-3

3

#4

3.2

5.7

6.5

21.7

11.0

4.9

2.3

0.8

1000

Blue

LY-03C
blue jaw

Wire range:
1.5-2.5mm²
A.W.G.:(16-14)
Max.current=27A

SNYBS 2-3.5

3.5

#6

3.7

6.5

21.7

SNYBL 2-3.5

3.5

#6

3.7

6.4

6.5

22.2

SNYBS 2-4

4

#8

4.3

6.4

6.5

22.2

SNYBM 2-4

4

#8

4.3

7.2

6.5

22.2

SNYBL 2-4

4

#8

4.3

8.1

6.5

22.2

SNYBS 2-5

5

#10

5.3

6.5

22.2

SNYBL 2-5

5

#10

5.3

9.3

6.5

22.2

SNYBS 2-6

6

1/4"

6.4

9.3

6.5

22.2

SNYBL 2-6

6

1/4"

6.4

12.0

11.0

28.2

SNYB 2-8

8

5/16"

8.4

14.0

13.0

29.7

SNYB 3.5-3

3

#4

3.2

5.7

6.3

25.3

13.5

6.3

3.0

1.0

500

Black

LY-03C
yellow jaw

Wire range:
2.5-4mm²
A.W.G.:(14-12)
Max.current=37A

SNYB 3.5-3.5

3.5

#6

3.7

8.0

7.0

25.8

SNYB 3.5-4

4

#8

4.3

SNYB 3.5-5

5

#10

5.3

SNYB 3.5-6

6

1/4"

6.4

12.0

8.7

29.0

SNYB 3.5-8

8

5/16"

8.4

14.0

11.5

31.2

SNYB 3.5-10

10

3/8"

10.5

17.5

12.5

34.0

SNYB 5.5-3

3

#4

3.2

7.3

6.5

26.2

13.5

6.7

3.4

1.0

500

Yellow

LY-03C
yellow jaw

Wire range:
4-6mm²
A.W.G.:(12-10)
Max.current=48A

SNYB 5.5-3.5

3.5

#6

3.7

8.3

7.0

26.2

SNYBS 5.5-4

4

#8

4.3

8.3

7.0

25.7

SNYBL 5.5-4

4

#8

4.3

9.0

7.0

26.0

SNYB 5.5-5

5

#10

5.3

9.0

7.0

25.7

SNYBS 5.5-6

6

1/4"

6.4

9.2

7.0

26.2

SNYBL 5.5-6

6

1/4"

6.4

12.0

12.0

31.3

SNYB 5.5-8

8

5/16"

8.4

14.0

12.0

31.3

SNYB 5.5-10

10

3/8"

10.5

17.5

12.5

34.0

SNYB 8-4

4

#8

4.3

8.0

8.0

31.2

16.7

8.0

4.5

1.2

250

Red

/

Wire range:
6-10mm²
A.W.G.:(8)
Max.current=62A

SNYB 8-5

5

#10

5.3

10.8

10.5

31.2

SNYB 8-6

6

1/4"

6.4

10.8

10.5

31.2

SNYB 8-8

8

5/16"

8.4

14.4

14.0

36.2

SNYB 8-10

10

3/8"

10.5

15.9

10.7

36.2

SNYB 14-4

4

#8

4.3

9.0

9.5

36.0

21.5

11.0

5.8

1.5

200

Blue

/

Wire range:
10-16mm²
A.W.G.:(6)
Max.current = 88A

SNYB 14-5

5

#10

5.3

11.7

10.7

39.4

SNYB 14-6

6

1/4"

6.4

11.7

10.7

39.2

SNYB 14-8

8

5/16"

8.4

13.8

10.7

39.2

SNYB 14-10

10

3/8"

10.5

15.9

10.7

39.2

SNYB 22-5

5

#10

5.3

13.8

9.0

45.7

24.0

13.0

8.0

1.7

100

Yellow

/

Wire range:
16-25mm²
A.W.G.:(4)
Max.current = 115A

SNYB 22-6

6

1/4"

6.4

13.8

9.0

45.7

SNYB 22-8

8

5/16"

8.4

SNYB 22-10

10

3/8"

10.5

16.5

13.5

45.7
