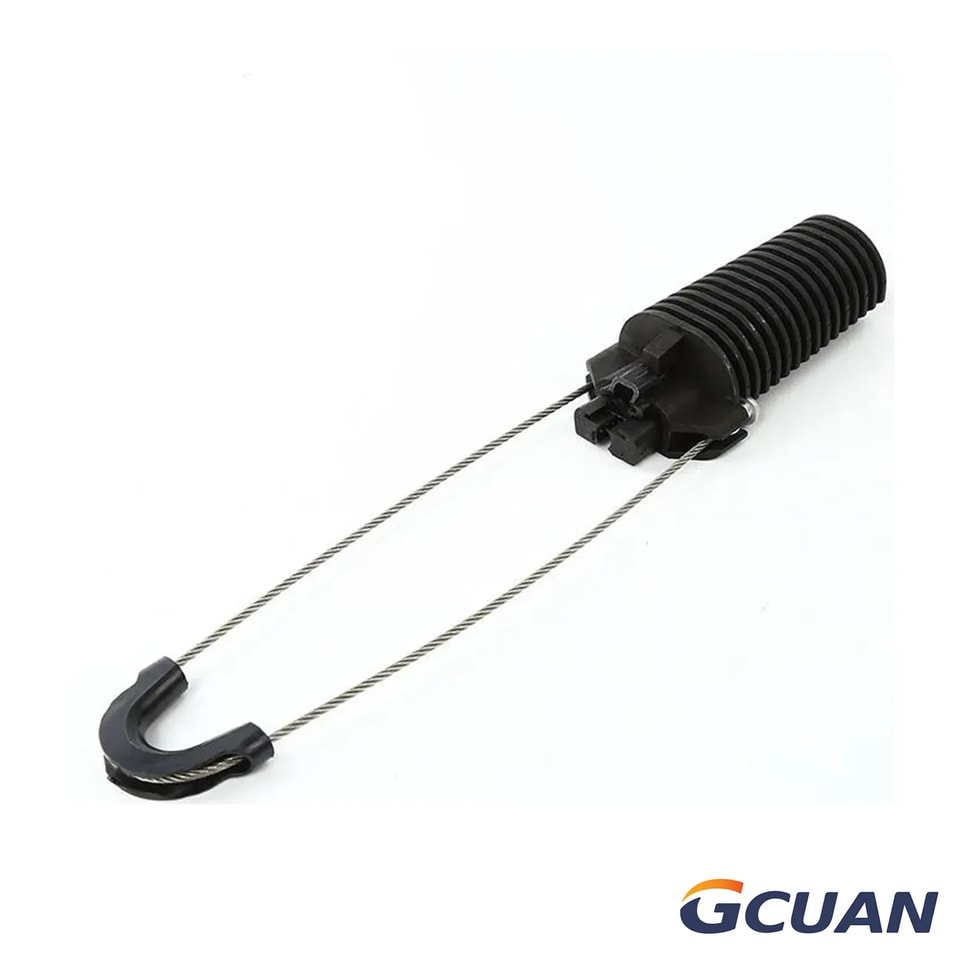

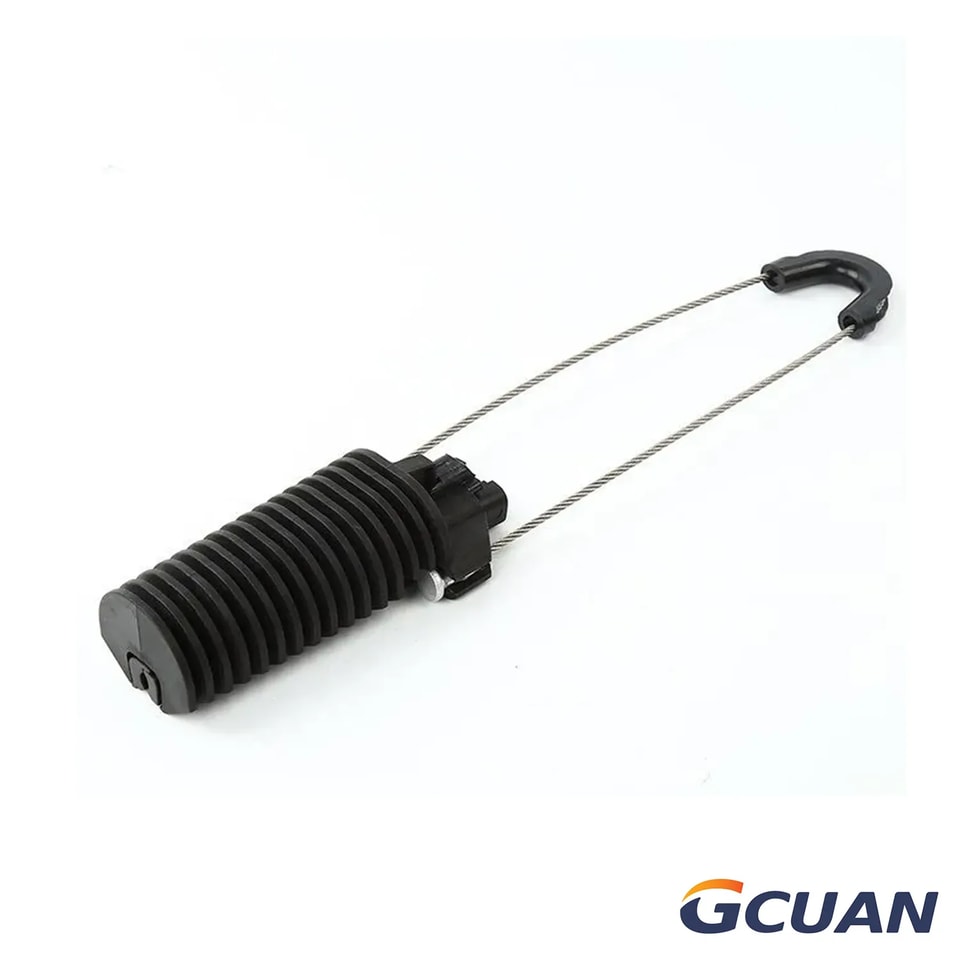

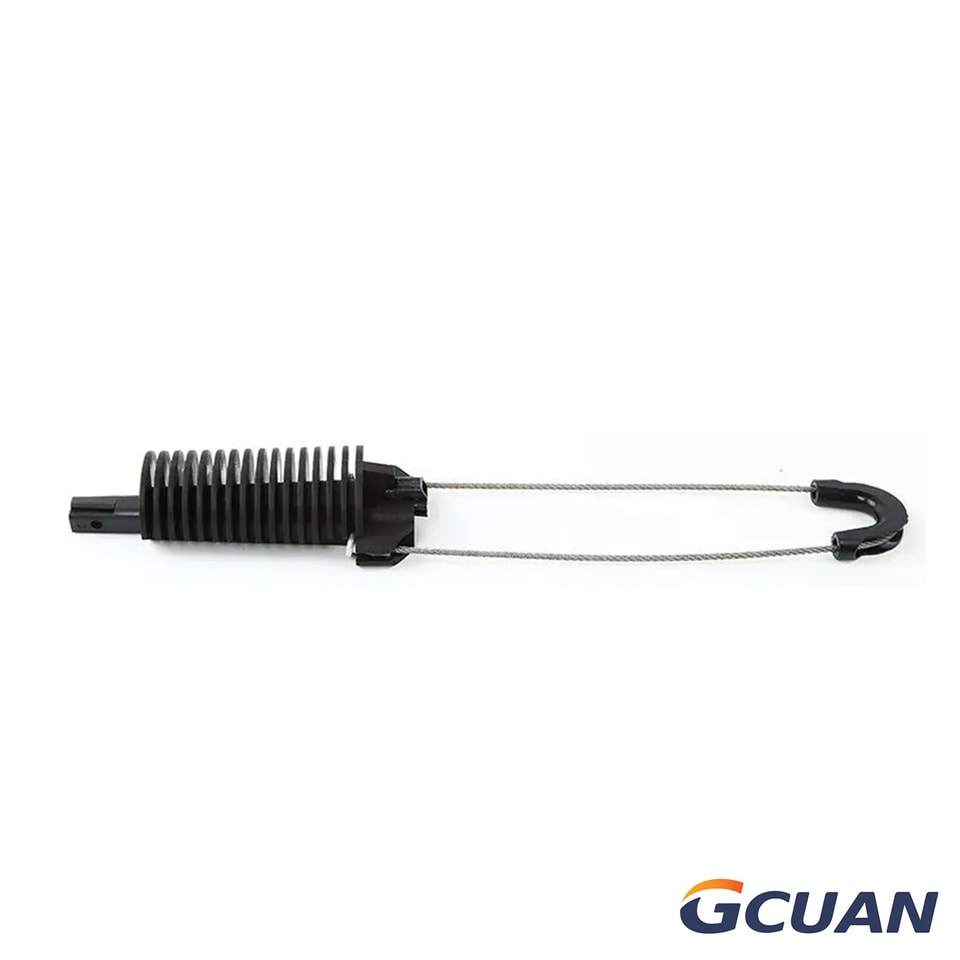

PA-02-SS Anchoring Clamp

Application:

The Anchoring Dead-end Clamps are composed of an opened thermoplastic body with very high mechanical and climatic resistance; the wedge grip clamps are designed to anchor insulated service lines with 1 conductor.

Material:

· Body and Wedge: Weather and UV-radiation resistant thermoplastic

· Bail: Hot-dip galvanized steel

Breaking Load:

4.5kN

Installation:

The clamp is opened, and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained.

Request a Quote

Product Description

Parameter

Type	Cross-section（mm²）
STA	1×10/1x16
STB	2×16/2x25
STC	4×16/4×25
DCR-2	2×4/2×25
LA1	4×16/4×25
PA-01-SS	4-25
PA-02-SS	2.5-10
PA-03-SS	1.5-6
SL2.1	16-25
PA1500	25-50
PA2000	70-120
PA4/6-35	4×16-35
PA16	50-120
