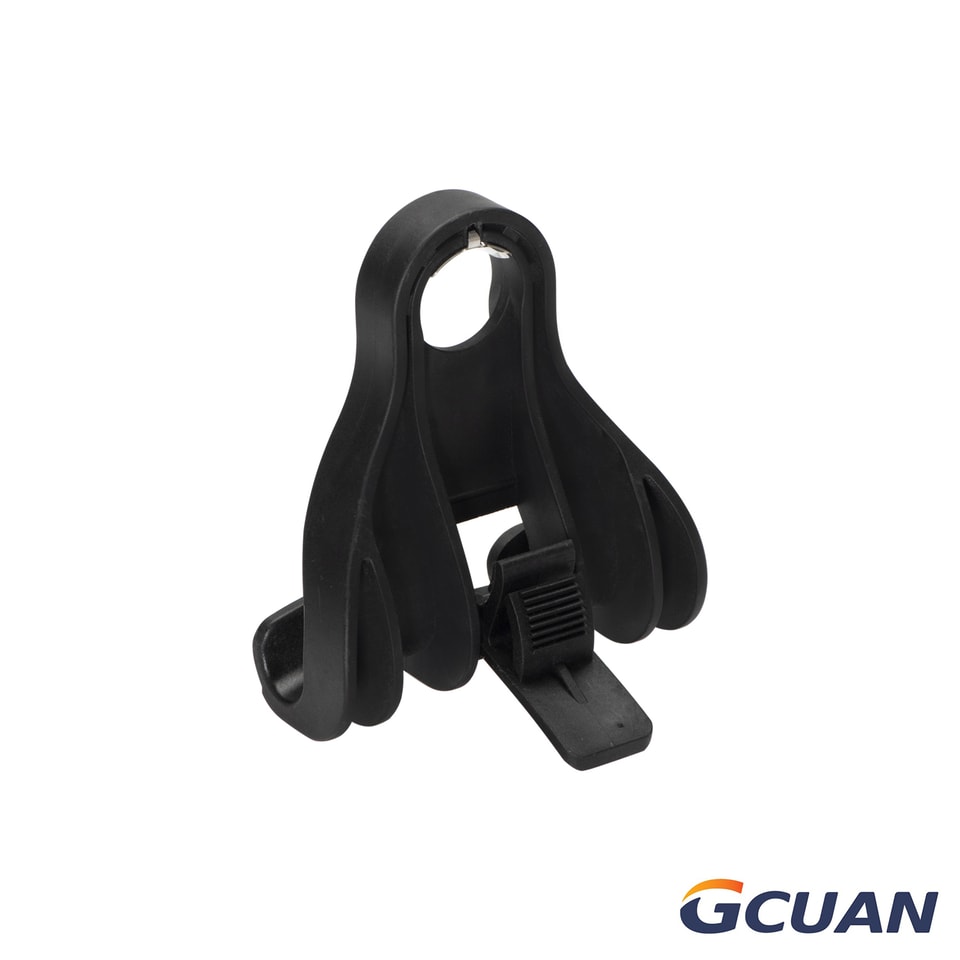

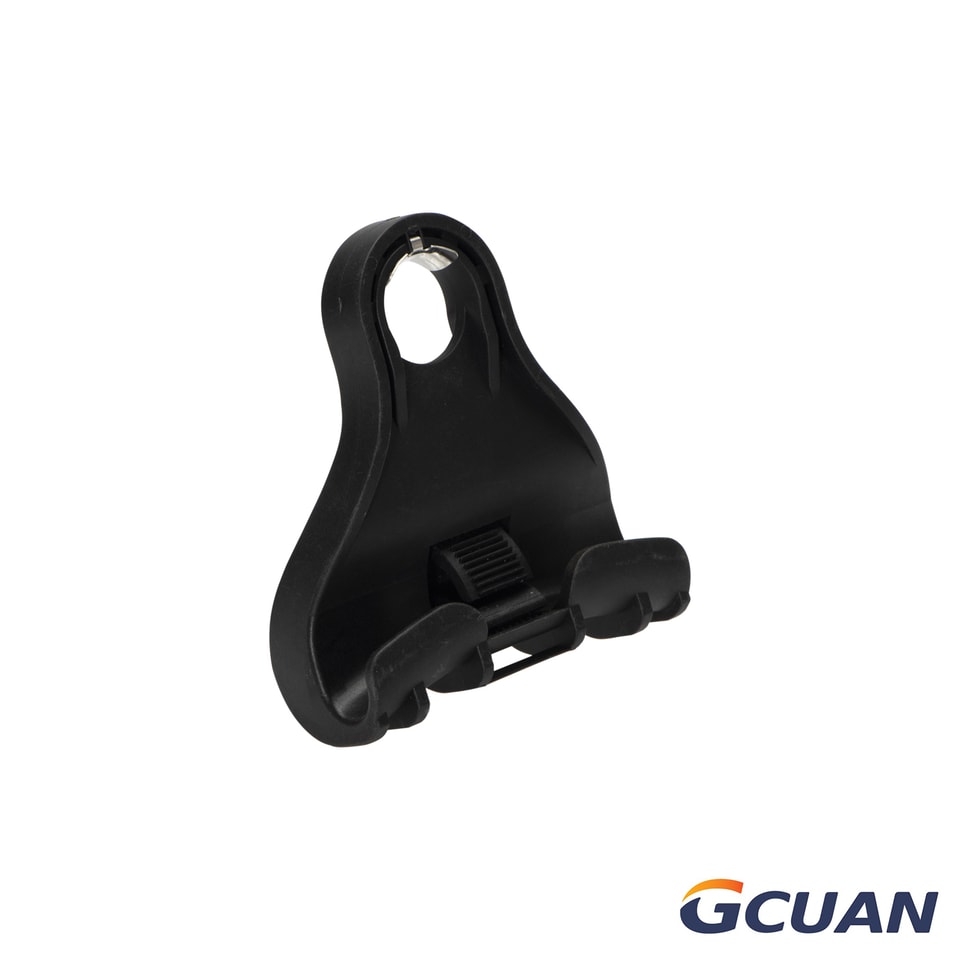

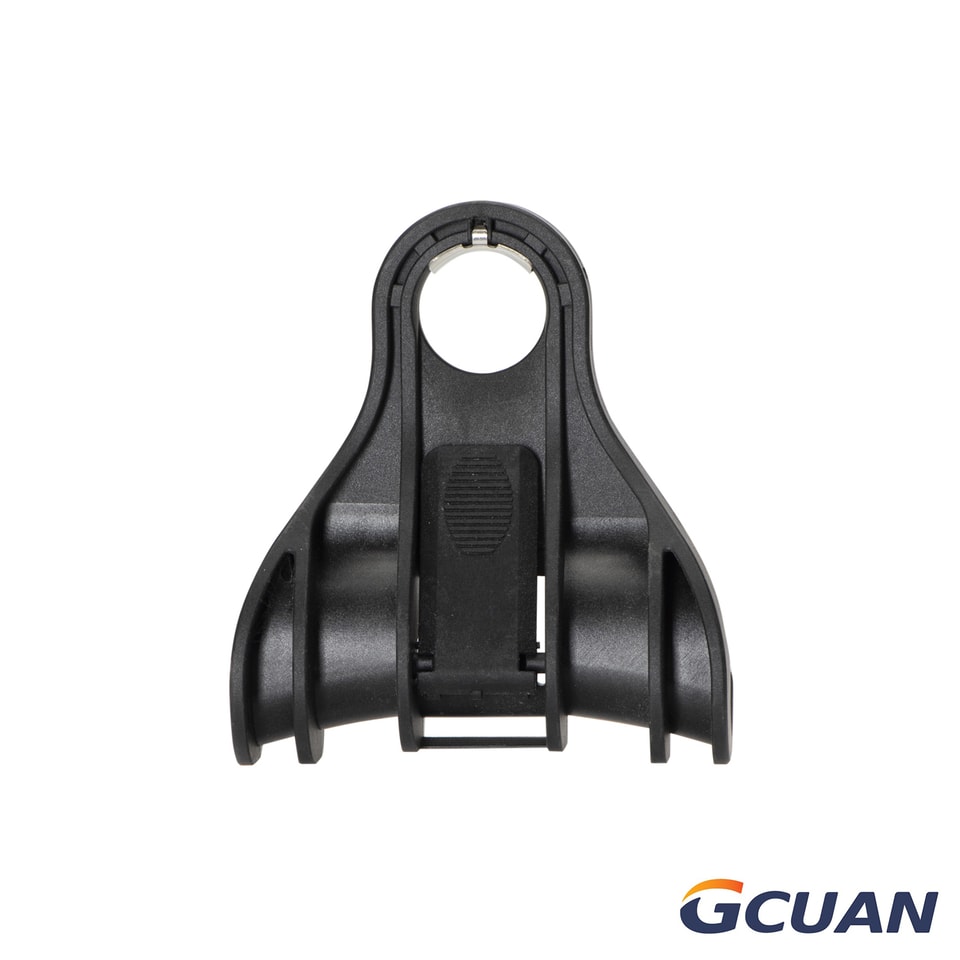

SL1.1A Suspension Clamp

Application:
Suspension clamps for overhead line control the movement of the conductor. This provides protection against the vibrations that have been induced by strong winds.

Breaking Load:

5kN

Material:
UV-resistant plastic

Installation:
Messenger wire is installed into the groove and locked with the locking part.

Request a Quote

Product Description

Parameter

Type	Conductor Range（mm²）
SC50(SC35)	16-50
SC95	50-95
SC150	120-150
HC-8-12	25-50
PSP25-120	4×25-4×120
SL1500	16-95
SL2500	16-95
SL95	16-95
SL1.1A	16-95
