Non-Insulated With Brazed Seam Blade Terminals

Material:

• Terminal Body: Copper

• Plating: Tin

Product Description

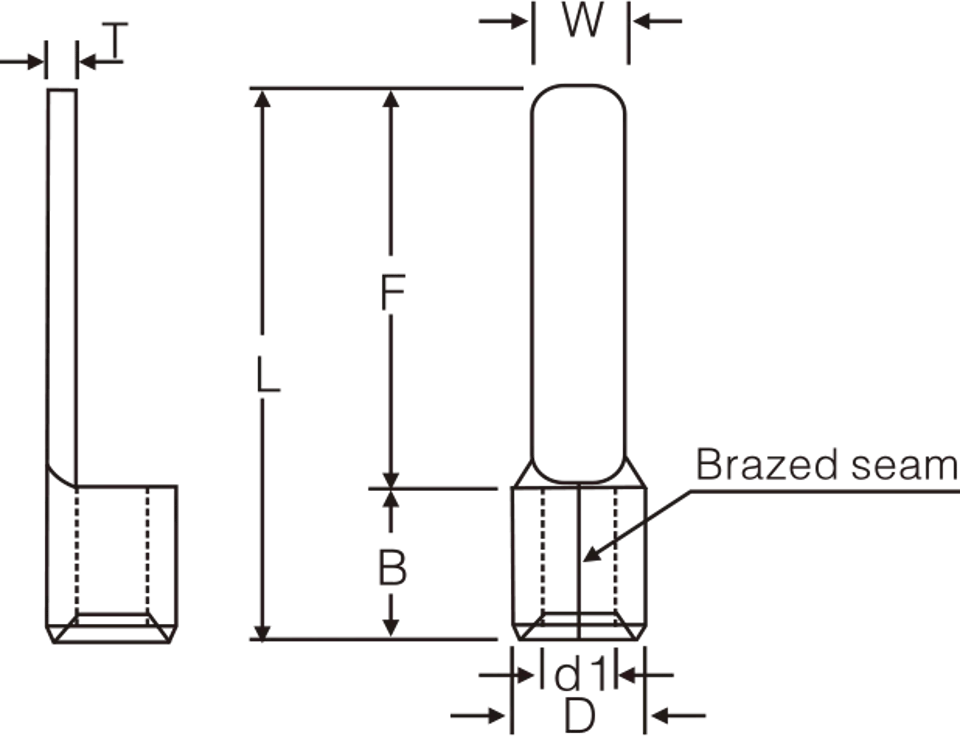

Dimensional Drawing:

Parameter:

Item No.	Dimension (mm)							Pcs/ Pack	Tools	Explanation
Item No.	W	F	L	B	D	d1	T	Pcs/ Pack	Tools	Explanation
DBN 1.25-10	2.3	10.0	14.8	4.8	3.4	1.8	0.75	1000	HS-101 jaw-1.25	Wire range: 0.5-1.5mm² A.W.G.:(22-16) Max.current=19A
DBN 1.25-11	3.0	11.0	15.8
DBN 1.25-14	3.0	14.0	18.8
DBN 1.25-18	2.3	18.0	22.8
DBN 2-9	2.8	9.0	13.8	4.8	4.1	2.3	0.8	1000	HS-101 jaw-2	Wire range: 1.5-2.5mm² A.W.G.:(16-14) Max.current=27A
DBN 2-10	2.4	10.0	14.8
DBNS 2-14	2.4	14.0	18.8
DBNL 2-14	3.0	14.0	18.8
DBN 2-18	2.3	18.0	22.8
DBNL 2-18	3.0	18.0	22.8
DBN 3.5-14	4.6	14.0	20.0	6.0	5.0	3.0	1.0	1000	HS-101 jaw-5.5	Wire range: 2.5-4mm² A.W.G.:(14-12) Max.current=37A
DBN 5.5-10	2.8	10.0	16.0	6.0	5.6	3.4	1.0	1000	HS-101 jaw-5.5	Wire range: 4-6mm² A.W.G.:(12-10) Max.current=48A
DBN 5.5-14	4.5	14.0	20.0
DBNS 5.5-18	3.0	18.0	24.0
DBN 5.5-18	4.5	18.0	24.0
DBN 8-14	6.0	14.0	22.5	8.5	7.2	4.5	1.2	500	HS-38	Wire range: 6-10mm² A.W.G.:(8) Max.current=62A
DBN 14-16	6.0	16.0	27.0	11.0	9.0	5.8	1.5	250	HS-38	Wire range: 10-16mm² A.W.G.:(6) Max.current=88A
DBN S22-17	4.0	17.0	29.0	12.0	11.5	7.7	1.7	200	HS-38	Wire range: 16-25mm² A.W.G.:(4) Max.current=115A
DBN 22-17	7.0	17.0	29.0	12.0	11.5	7.7	1.7	200	HS-38	Wire range: 16-25mm² A.W.G.:(4) Max.current=115A
DBN 38-17	8.0	17.0	31.4	14.4	13.3	9.4	1.8	200	HS-38	Wire range: 35mm² A.W.G.:(2) Max.current=160A
