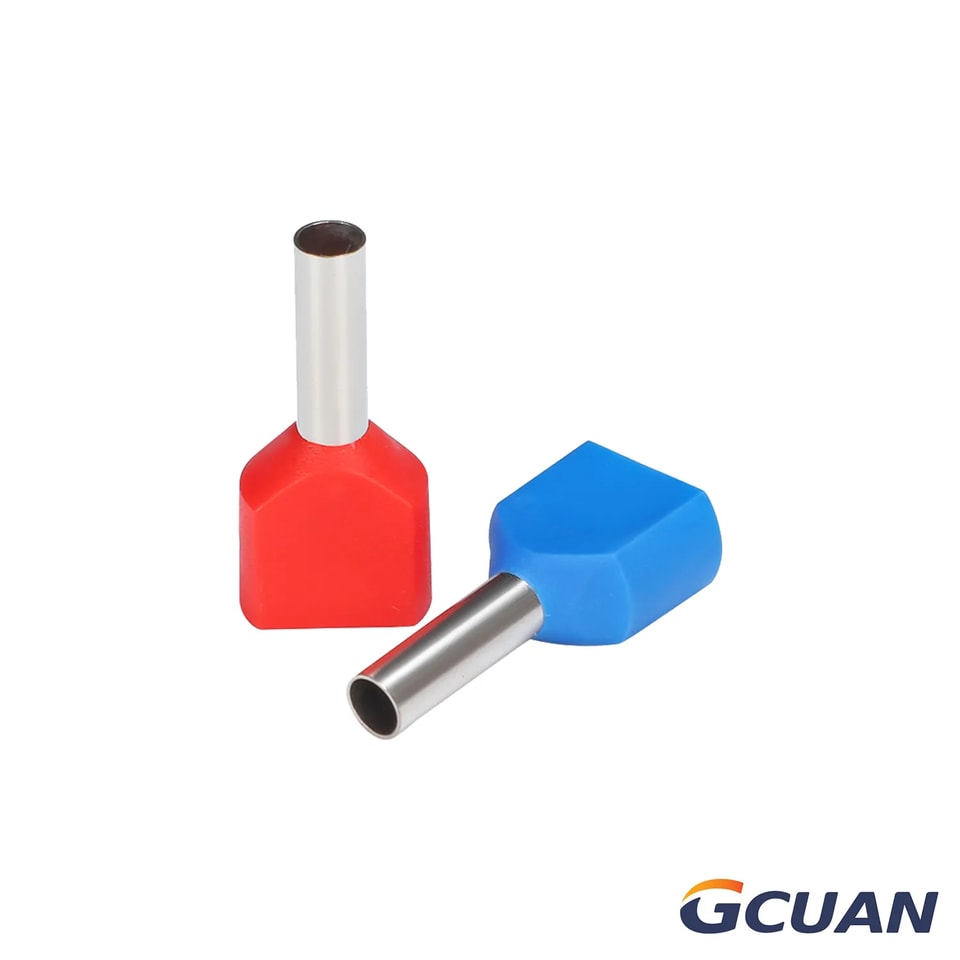

Nylon Insulated Cord End Terminals Twin Cables Type

Material:
• Terminal Body: Copper
• Plating: Tin
• Insulation: Vinyl/Nylon

Product Description

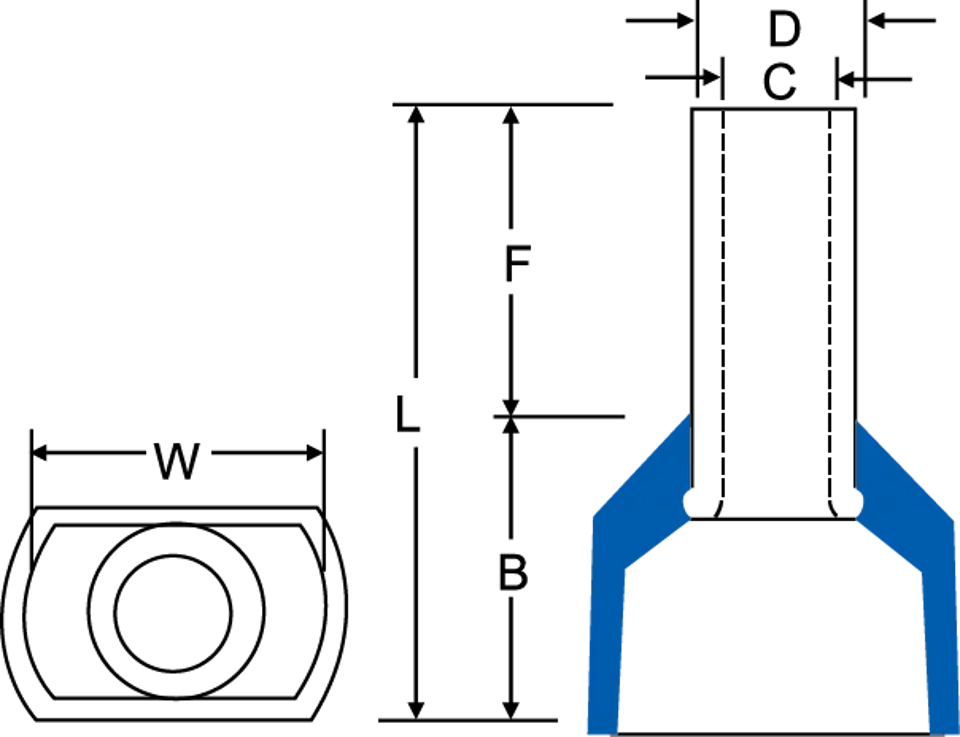

Dimensional Drawing:

Parameter:

ITEM NO.	F	L	A.W.G. MM²	W	B	D	C	STANDARD COLOR	SELECTED COLOR	PCS/PACK	USE THE TOOLS
TE0508	8	14.5	2×22A.W.G. 2×0.5mm²	5	6.5	1.8	1.5	White Orange	● Red ● Blue ● Yellow ● Black ● Green ● Gray ● White ● Orange ● Purple ● Pink	1000	HSC8 6-4
TE0510	10	16.5
TE0512	12	18.5
TE07508	8	14.7	2×20A.W.G. 2×0.75mm²	5.5	6.7	2.1	1.8	Blue Gray		1000	HSC8 6-4
TE07510	10	16.7
TE07512	12	18.5
TE1008	8	15.1	2×18A.W.G. 2×1.0mm²	5.5	7.1	2.3	2	Red Yellow		1000	HSC8 6-4
TE1010	10	17.1
TE1012	12	19.1
TE1508	8	15.5	2×16A.W.G. 2×1.5mm²	6.4	7.2	2.3	2.3	Black Yellow		1000	HSC8 6-4
TE1510	10	17.5
TE1512	12	19.5
TE2508	8	16.5	2×14A.W.G. 2×2.5mm²	8	8.5	3.3	2.9	Gray Blue		1000	HSC8 6-4
TE2510	10	18.5
TE2512	12	20.5
TE2513	13	21.5
TE4012	12	23.1	2×12A.W.G. 2×4mm²	8.8	11.1	4.2	3.8	Orange Gray		1000	HSC8 16-4
TE4018	18	29.1
TE6014	14	26.1	2×10A.W.G. 2×6mm²	9.5	12.1	5.3	4.9	Green Black		500	HSC8 16-4
TE6018	18	30.1
TE10-14	14	26.6	2×8A.W.G. 2×10mm²	12.6	12.6	6.9	6.5	Brown Red		500	HS-35WF
TE16-14	14	31.3	2×6A.W.G. 2×16mm²	19	17.3	8.7	8.3	Milk Blue		200	HS-35WF
TE16-25	25	42.3
