Nylon Insulated-Single Crimp Pin Terminals
Material:
• Terminal Body: Copper
• Plating: Tin
• Insulation: PA66/Nylon
Maximum Temperature Resistance: 105℃
Product Description

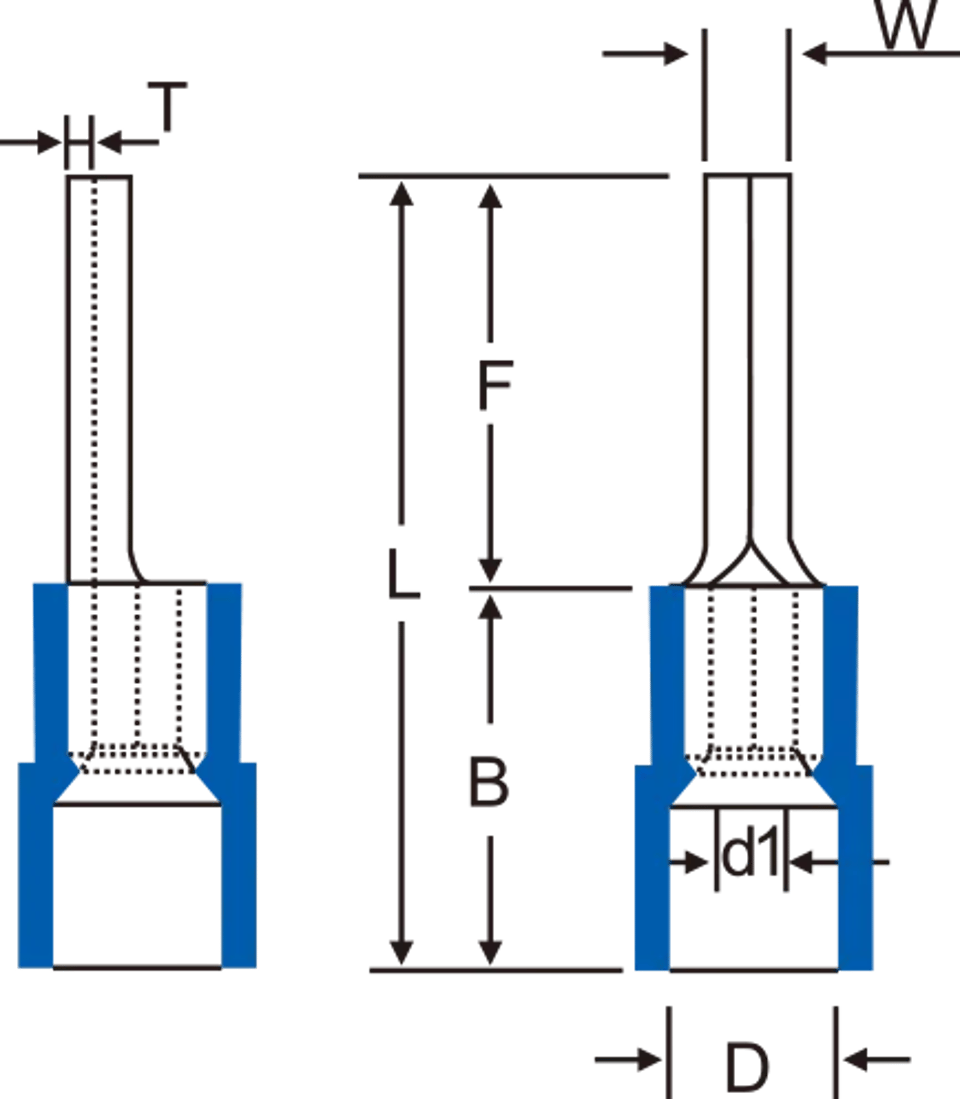

Dimensional Drawing:
Parameter:
| Item No. | Dimension (mm) | Pcs/ Pack | Color | Tools | Explanation | ||||||
| W | F | L | B | D | d1 | T | |||||
| PTNY 0.5-10 | 1.4 | 10.0 | 17.7 | 7.7 | 2.8 | 1.2 | 0.5 | 1000 | Yellow | / | Wire range: 0.2-0.5mm² A.W.G.:(26-22) Max.current=9A |
| PTNY 1.25-9 | 1.9 | 9.0 | 20.0 | 10.5 | 4.3 | 1.8 | 0.75 | 1000 | Red | HS-30J | Wire range: 0.5-1.5mm² A.W.G.:(22-16) Max.current=19A |
| PTNY 1.25-10 | 10.0 | 21.0 | |||||||||
| PTNY 1.25-12 | 12.0 | 23.0 | |||||||||
| PTNY 1.25-13 | 13.0 | 24.0 | |||||||||
| PTNY 1.25-16 | 16.0 | 27.0 | |||||||||
| PTNY 1.25-18 | 18.0 | 29.0 | |||||||||
| PTNY 2-9 | 1.9 | 9.0 | 20.0 | 11.0 | 4.9 | 2.3 | 0.8 | 1000 | Blue | HS-30J | Wire range: 1.5-2.5mm² A.W.G.:(16-14) Max.current=27A |
| PTNY 2-10 | 10.0 | 21.0 | |||||||||
| PTNY 2-12 | 12.0 | 23.0 | |||||||||
| PTNY 2-13 | 13.0 | 24.0 | |||||||||
| PTNY 2-18 | 18.0 | 29.0 | |||||||||
| PTNY 3.5-12 | 2.8 | 12.0 | 25.5 | 13.5 | 6.3 | 3.0 | 1.0 | 500 | Black | HS-30J | Wire range: 2.5-4mm² A.W.G.:(14-12) Max.current=37A |
| PTNY 5.5-13 | 2.8 | 13.0 | 26.5 | 13.5 | 6.7 | 3.4 | 1.0 | 500 | Yellow | HS-30J | Wire range: 4-6mm² A.W.G.:(12-10) Max.current=48A |
| PTNY 5.5-18 | 18.0 | 31.5 | |||||||||
