Vinyl Insulated-Single Crimp Locking Spade Terminals

Item No.

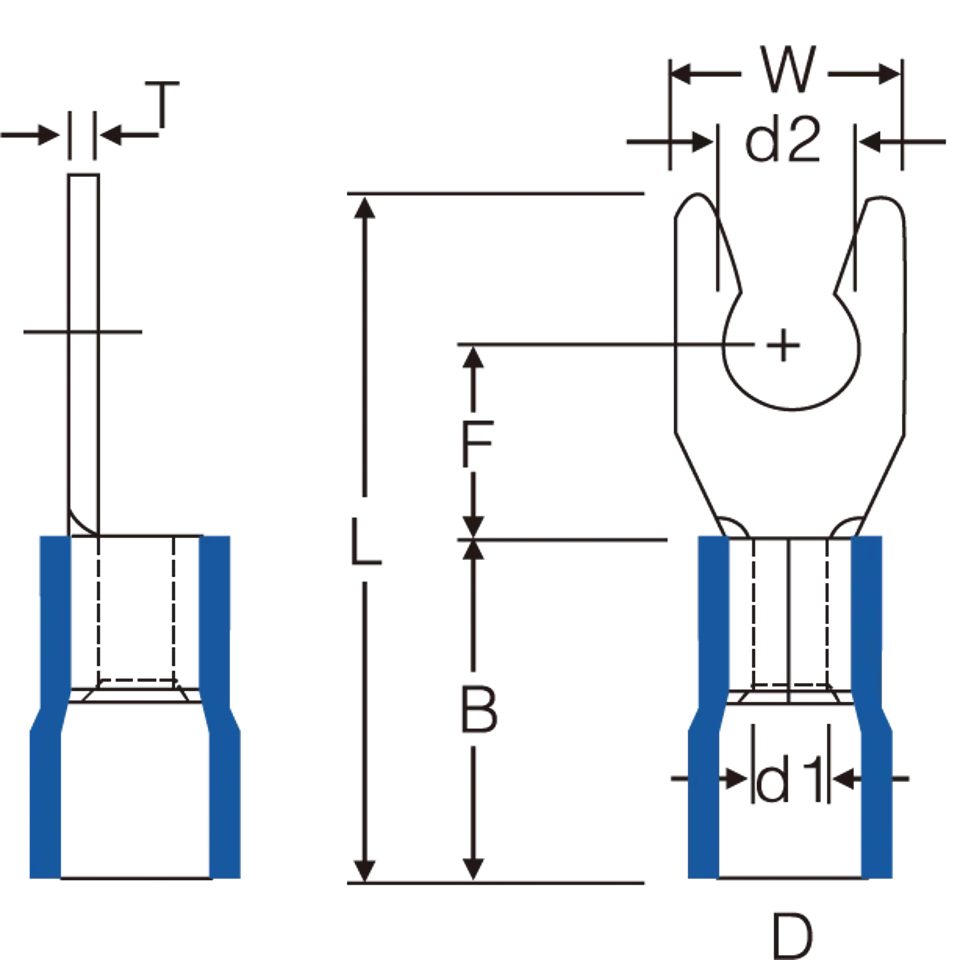

Stud Size

Dimension (mm)

Pcs/

Pack

Color

Tools

Explanation

Metric

American

d2

W

F

L

B

D

d1

T

LSV 1.25-3.5

3.5

#6

3.7

6.4

6.5

21.0

10.0

4.2

1.8

0.75

1000

Red

HS-30J
red jaw

Wire range:
0.5-1.5mm²
A.W.G.:(22-16)
Max.current=19A

LSVS 1.25-4

4

#8

4.3

7.2

LSVL 1.25-4

4

#8

4.3

8.1

LSVS 1.25-5

5

#10

5.3

8.1

LSVL 1.25-5

5

#10

5.3

9.5

LSV 2-3.5

3.5

#6

3.7

6.0

6.5

21.0

10.0

4.9

2.3

0.8

1000

Blue

HS-30J
blue jaw

Wire range:
1.5-2.5mm²
A.W.G.:(16-14)
Max.current=27A

LSV 2-4

4

#8

4.3

7.2

LSVL 2-4

4

#8

4.3

8.1

LSVS 2-5

5

#10

5.3

8.1

LSVL 2-5

5

#10

5.3

9.3

LSV 5.5-3.5

3.5

#6

3.7

8.3

7.0

25.2

13.0

6.6

3.4

1.0

500

Yellow

HS-30J
yellow jaw

Wire range:
4-6mm²
A.W.G.:(12-10)
Max.current=48A

LSV 5.5-4

4

#8

4.3

8.3

LSV 5.5-5

5

#10

5.3

9.0

LSV 5.5-6

6

1/4"

6.4

12.0

12.0

31.5
