Products
DLS Dual hole aluminum lug
Application : Used for connection of aluminum cable with aluminum end of electrical equipment in low voltage. From 25 to 400 mm². Dual hole design for higher stability of installation Material : AL ≥ 99.5% Surface: acid pickling
Learn More
SG Copper lug
Application:Used for connection of copper cable with copper end of electrical equipment for rated voltage up to 36kV. From 50 to 120 mm². Specially designed to accommodate both stranded (class 2) and flexible (class 5) power cables according to IEC 60228. Material: Cu≥99.9% Surface: Tin plated Feature: Hole inspection for easy installation.
Learn More
GTY Copper connector
Application: Used for connection of copper cable. From 10 to 630 mm2 Material: Cu ≥ 99.9% Surface: Tin plated Feature: Solid center barrier
Learn More

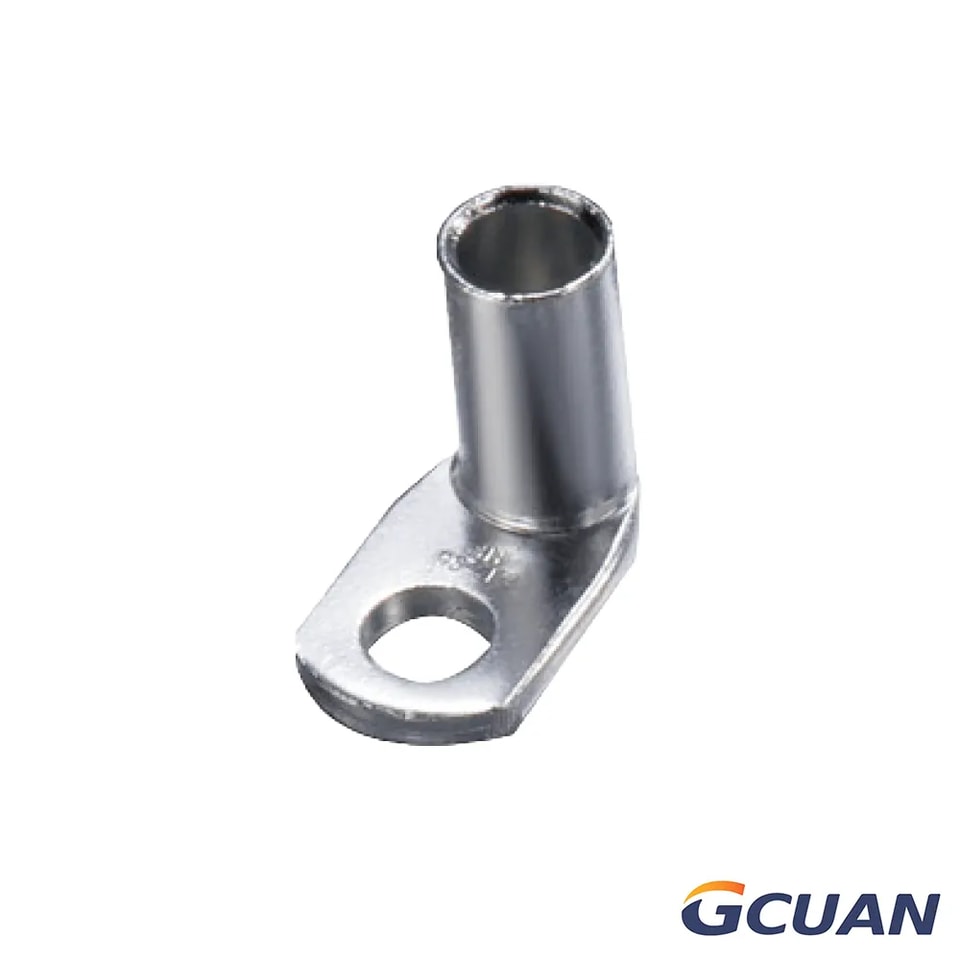

GPH 90° Copper lug
Application:Used for connection of copper cable with copper end of electrical equipment in low voltage. From 16 to 400mm2 Material: Cu≥99.9% Surface: Tin plated Feature: 90 degrees - one hole lug with die code marking to assist installation work and inspection
Learn More
DTM Copper lug
Application :Used for connection of copper cable with copper end of electrical equipment in low voltage. From 10 to 800 mm². Material : Cu ≥ 99.9% Surface: acid pickling
Learn More
MJPT Pre-insulated Aluminum Connector
Application : Used for LV-ABC systems with neutral messenger. MJPT is used on phase conductor. From 16 to 150 mm². Material : Al ≥ 99.5% Insulation sheath is made of weather and UV resistant material.
Learn More
CPTAU Pre-insulated bimetallic lug
Application:The CPTAU pre-insulated bimetal lug is used to establish connection between LV-ABC cable and electrical equipment. Material: Al≥99.5%, Cu≥99.9% Feature:Cross-section of conductor can be easily identified by the color code of elastomeric rings.Elastomeric ring and pre-filled grease enable superior waterproof performance.Watertightness test carried out at 6kV for 1 minute under water.Insulation tube is made of weather and UV resistant polymer.
Learn More
GTD-S Dual hole bimetallic lug
Material: CU ≥ 99.9%, AL ≥ 99.5% Features : The barrels are chemically treated to reduce contact resistance and corrosion refilled with jointing compound.Friction welded.
Learn More

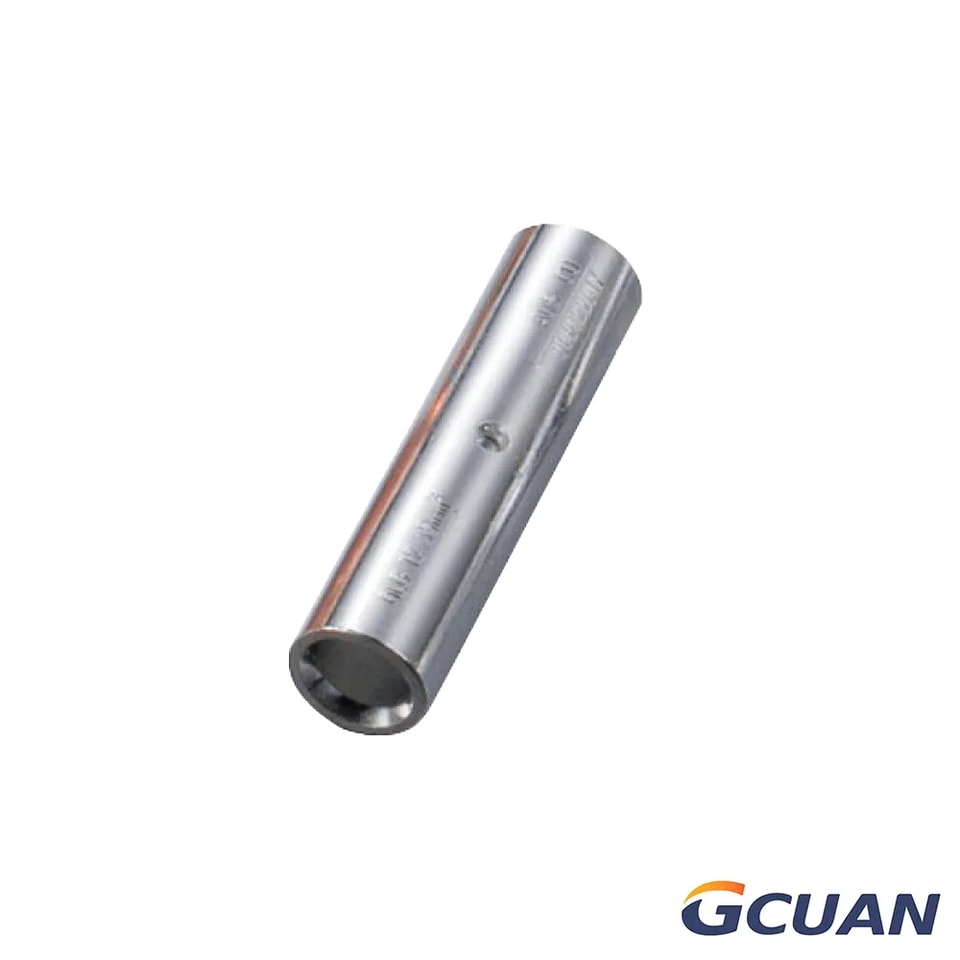

DGT Copper connector
Application: Used for connection of copper cable. From 10 to 240mm2 Material: Cu ≥ 99.9% Surface: Tin plated Feature: Solid center barrier
Learn More
JGB Copper lug
Application:Used for connection of copper cable with copper end of electrical equipment in low voltage. From 6 to 630mm2 Material: Cu≥99.9% Surface: Tin plated Feature: Flared entry, Hole inspection for easy installation.
Learn More
ACL Bimetallic lug
Material: CU ≥ 99.9%, AL ≥ 99.5% Features : The barrels are chemically treated to reduce contact resistance and corrosion refilled with jointing compound.Friction welded.
Learn More
DTL-7 Bimetallic lug pin type
Application:DTL7-Pin Friction Welded Connector is suitable for screwing non-tension Al connections in Cu clamps. Material: Al≥99.5%, Cu≥99.9% Feature:Friction welded.Aluminum barrel is filled by neutral grease and covered by cap.
Learn More
