Nylon Insulated-Single Crimp Flange Spade Terminals

Material:

• Terminal Body: Copper

• Plating: Tin

• Insulation: PA66/Nylon

Maximum Temperature Resistance: 105℃

Product Description

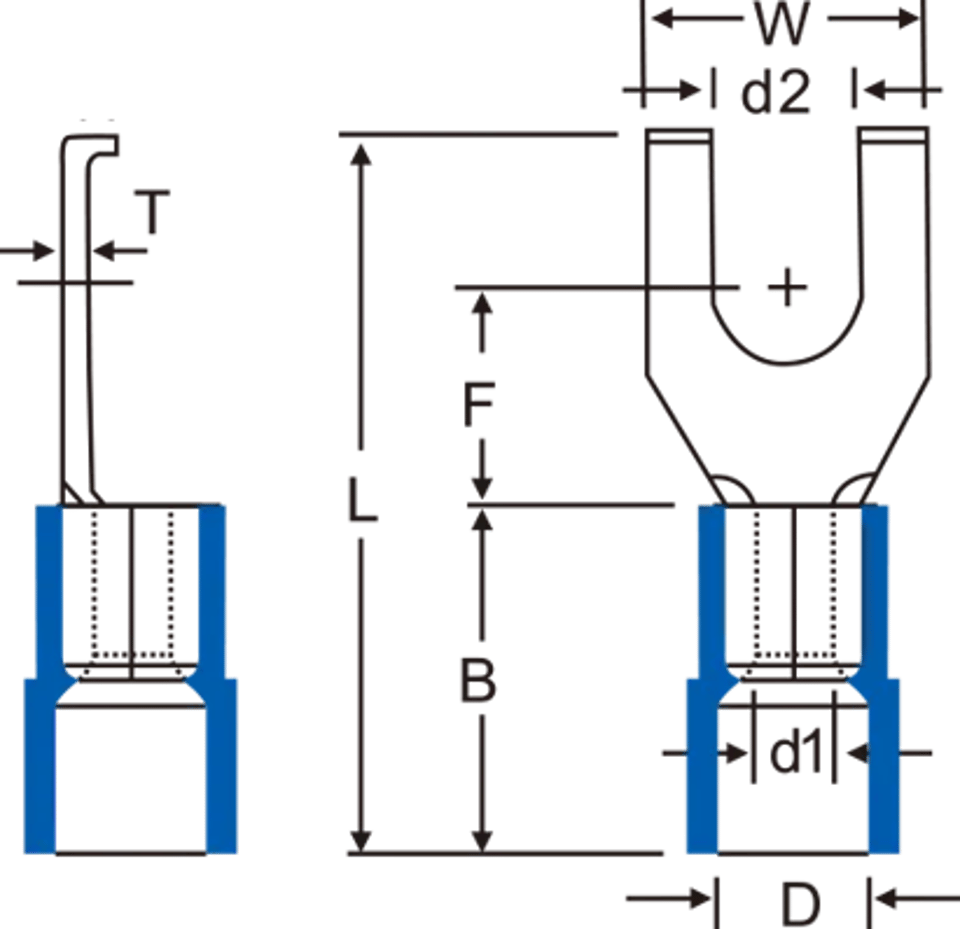

Dimensional Drawing:

Parameter:

Item No.	Stud Size		Dimension (mm)								Pcs/ Pack	Color	Tools	Explanation
	Metric	American	d2	W	F	L	B	D	d1	T
FSNY 1.25-3	3	#4	3.2	7.5	5.1	19.5	10.5	4.2	1.8	0.75	1000	Red	HS-30J	Wire range: 0.5-1.5mm² A.W.G.:(22-16) Max.current=19A
FSNY 1.25-3.5	3.5	#6	3.7
FSNY 1.25-4	4	#8	4.3
FSNY 1.25-5	5	#10	5.3
FSNY 2-3.5	3.5	#6	3.7	7.5	5.2	21.2	11.0	4.9	2.3	0.8	1000	Blue	HS-30J	Wire range: 1.5-2.5mm² A.W.G.:(16-14) Max.current=27A
FSNY 2-4	4	#8	4.3
FSNY 2-5	5	#10	5.3
FSNY 5.5-3.5	3.5	#5	3.7	8.5	7.5	27.0	13.5	6.7	3.4	1.0	500	Yellow	HS-30J	Wire range: 4-6mm² A.W.G.:(12-10) Max.current=48A
FSNY 5.5-4	4	#8	4.3
FSNY 5.5-5	5	#10	5.3
